Seat And Safety Belts -Sport-

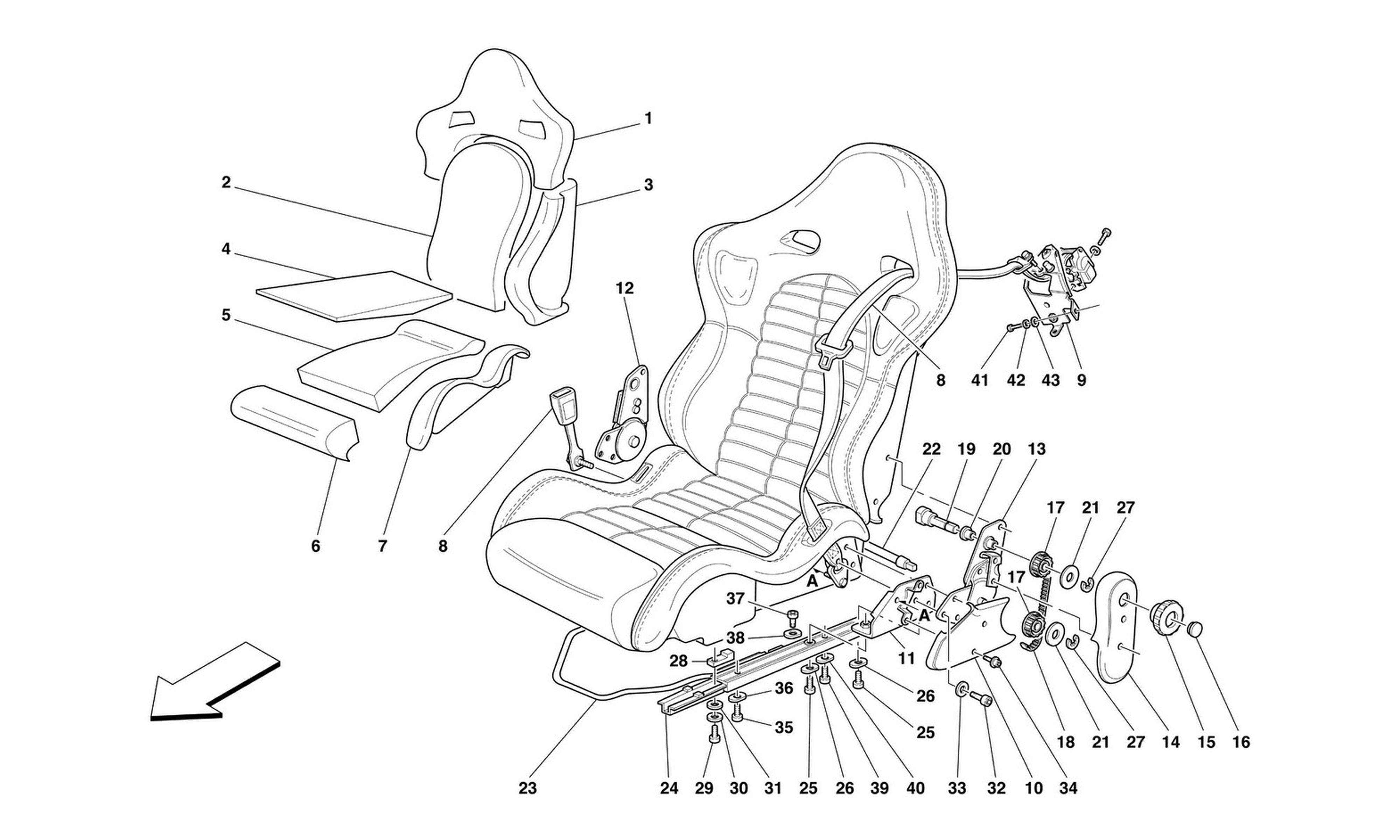

Schematic: Seat And Safety Belts -Sport-
Loc
Part
Cond       Price
1
SEAT BACK UPPER AND LATERAL F…
65087100 (2) Full qty
2
SEAT BACK CENTRAL FOAM
65194800 (2) Full qty
3
SEAT BACK L.H. LATERAL FOAM n…
64605700 (2) Full qty
3
SEAT BACK R.H. LATERAL FOAM la…
64605400 (2) Full qty
3
SEAT BACK L.H. LATERAL FOAM l…
64605500 (2) Full qty
3
SEAT BACK R.H. LATERAL FOAM n…
64605600 (2) Full qty
4
CUSHION UPPER CENTRAL FOAM nar…
64679100 (2) Full qty
4
CUSHION UPPER CENTRAL FOAM lar…
64347800 (2) Full qty
5
CUSHION LOWER CENTRAL FOAM
64605800 (2) Full qty
6
CALF-REST FOAM
65383300 (2) Full qty
7
CUSHION L.H. LATERAL FOAM narr…
64605900 (2) Full qty
7
CUSHION L.H. LATERAL FOAM narr…
64606000 (2) Full qty
7
CUSHION R.H. LATERAL FOAM larg…
64334700 (2) Full qty
7
CUSHION L.H. LATERAL FOAM larg…
64399000 (2) Full qty
8
SAFETY BELTS ASSEMBLY
65459500 (1) Full qty
8
SAFETY BELTS ASSEMBLY
65208500 (1) Full qty
8
SAFETY BELTS ASSEMBLY
65194400 (1) Full qty
9
R.H. BRACKET
65217600 (1) Full qty
9
L.H. BRACKET
65217800 (1) Full qty
10
R.H. SEAT INNER TRANSMISSION …
65089400 (1) Full qty
10
R.H. SEAT OUTER TRANSMISSION …
64348600 (1) Full qty
10
L.H. SEAT OUTER TRANSMISSION …
64347200 (1) Full qty
10
L.H. SEAT INNER TRANSMISSION …
65088200 (1) Full qty
11
R.H. SEAT OUTER BRACKET
65089100 (1) Full qty
11
L.H. SEAT OUTER BRACKET
65087900 (1) Full qty
11
L.H. SEAT INNER BRACKET
65087400 (1) Full qty
11
R.H. SEAT INNER BRACKET
65088700 (1) Full qty
12
L.H. SEAT BACK INNER ADJUSTER
64346900 (1) Full qty
12
R.H. SEAT BACK INNER ADJUSTER
64348500 (1) Full qty
13
L.H. SEAT BACK OUTER ADJUSTER
64328700 (1) Full qty
13
R.H. SEAT BACK OUTER ADJUSTER
64329300 (1) Full qty
14
L.H. SEAT INNER ARTICULATED J…
65088100 (1) Full qty
14
L.H. SEAT OUTER ARTICULATED J…
64347400 (1) Full qty
14
R.H. SEAT OUTER ARTICULATED J…
64348900 (1) Full qty
14
R.H. SEAT INNER ARTICULATED J…
65089300 (1) Full qty
15
SEAT BACK ADJUSTING KNOB
64331300 (2) Full qty
16
PLUG FOR KNOB
64330800 (2) Full qty
17
ARTICULATED JOINT CONTROL PUL…
64330700 (4) Full qty
18
PULLEYS CONNECTING BELT
64347100 (2) Full qty
19
PIN
64328200 (2) Full qty
20
SELF-LUBRICATING BUSHING
64347000 (2) Full qty
21
WASHER
64347700 (4) Full qty
22
ARTICULATED JOINT CONNECTION …
64347600 (2) Full qty
23
GUIDE CONTROL FORK
65086100 (2) Full qty
24
R.H. GUIDE
65085800 (2) Full qty
24
L.H. GUIDE
65085900 (2) Full qty
25
SCREW
14306374 (4) Full qty
26
ELASTIC PLATE
63395300 (4) Full qty
27
Spring ring
16160976 (4) Full qty
28
STOP BRACKET
65086000 (4) Full qty
29
Screw
10902024 (4) Full qty
30
WASHER
160957 (4) Full qty
31
New       Price on Enquiry
12644424 (4) Full qty
CS12006n
31
Used       Price on Enquiry
12644424 (4) Full qty
CS12006u
32
SCREW
63929800 (20) Full qty
33
WASHER
14496578 (16) Full qty
34
SCREW
64460500 (16) Full qty
35
SCREW
14306374 (4) Full qty
36
ELASTIC PLATE
63395300 (4) Full qty
37
Screw
20293306 (4) Full qty
38
ELASTIC PLATE
63395300 (4) Full qty
39
Screw
20293306 (4) Full qty
40
ELASTIC PLATE
63395300 (4) Full qty
41
SCREW
16043434 (6) Full qty
42
WASHER
11194074 (6) Full qty
43
Washer
12646724 (6) Full qty
