Doors - Framework And Coverings

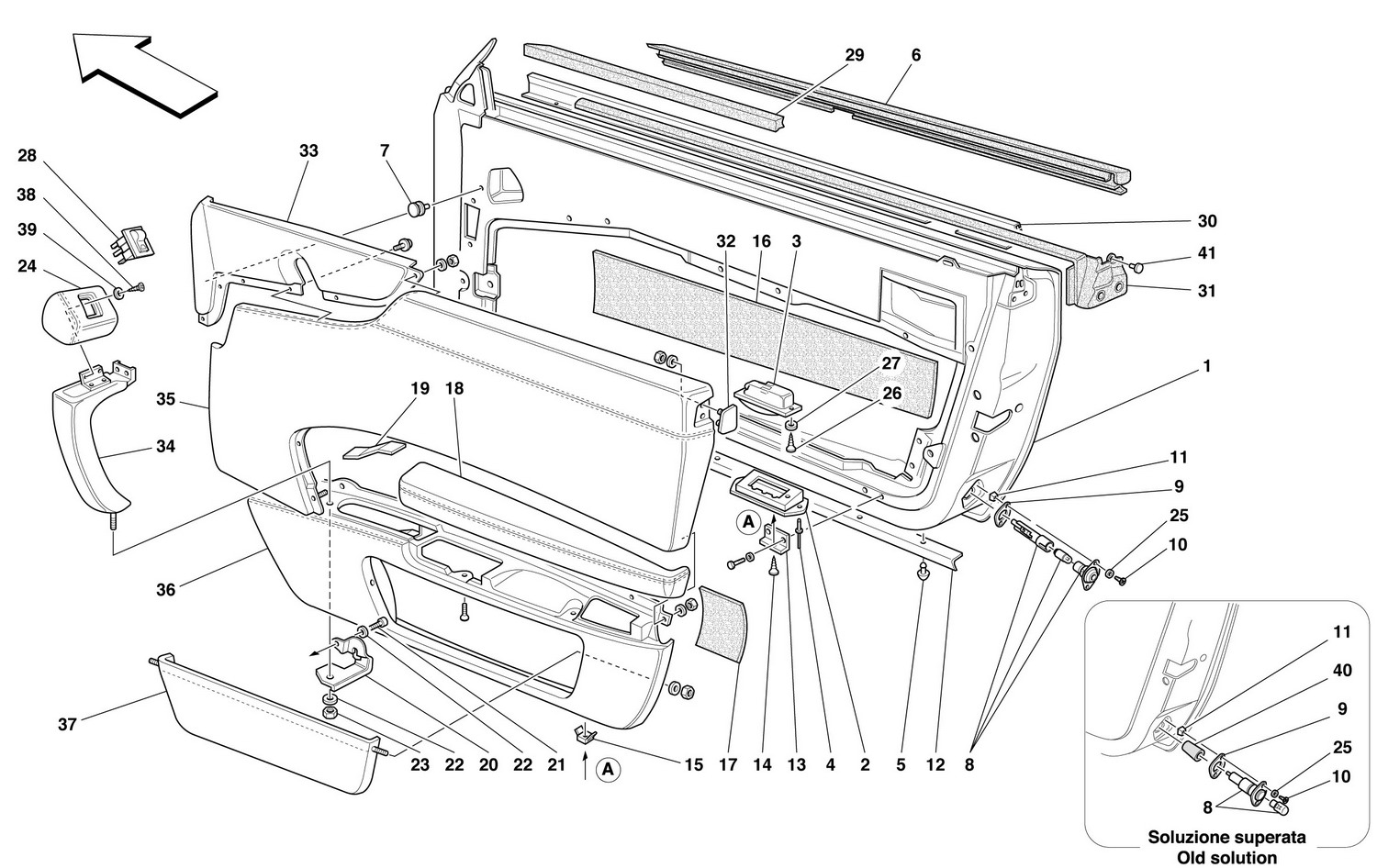

Schematic: Doors - Framework And Coverings
Schematic: Doors - Framework And Coverings
Loc
Part
Cond       Price
1
L.H. DOOR FRAME
65187500 (1) Full qty
1
R.H. DOOR FRAME
65187400 (1) Full qty
1
L.H. DOOR FRAME
64710200 (1) Full qty
1
R.H. DOOR FRAME
64710100 (1) Full qty
2
Frame
60842000 (2) Full qty
3
Roof lamp
65088400 (2) Full qty
4
Fixing drip grip
60310703 (4) Full qty
5
RIVET
62764000 (16) Full qty
6
L.H. OUTER GLASS SCRAPER
64715900 (1) Full qty
6
R.H. OUTER GLASS SCRAPER
64715800 (1) Full qty
7
Door Trim Clip 575
New       £ 0.39
64580400 (10) Full qty
NT00060n
8
OPENING DOOR LAMP WITH BULB
184786 (2) Full qty
9
GASKET
140576 (2) Full qty
10
SCREW
15901475 (4) Full qty
11
BLOCK
14115580 (4) Full qty
12
R.H. OUTER LOWER GASKET
63758200 (1) Full qty
12
L.H. OUTER LOWER GASKET
63488300 (1) Full qty
13
BRACKET
64592600 (6) Full qty
14
SCREW
15688075 (12) Full qty
15
BLOCK
14115885 (12) Full qty
16
WATER PROTECTION CLOTH FOR FRA…
65059400 (2) Full qty
17
WATER PROTECTION CLOTH FOR SWI…
65059500 (2) Full qty
18
L.H. DOOR ARM-REST
645845.. (1) Full qty
18
R.H. DOOR ARM-REST
645922.. (1) Full qty
19
MOULDING
64585800 (2) Full qty
20
R.H. BRACKET
64591900 (1) Full qty
20
L.H. BRACKET
64591600 (1) Full qty
21
SCREW -M6 X 14-
10902124 (6) Full qty
22
Washer
12646601 (8) Full qty
23
NUT
15896214 (2) Full qty
24
L.H. UPPER HANDLE
645848.. (1) Full qty
24
R.H. UPPER HANDLE
645925.. (1) Full qty
24
R.H. UPPER HANDLE
651051.. (1) Full qty
24
L.H. UPPER HANDLE
651052.. (1) Full qty
25
WASHER
10519304 (6) Full qty
26
SCREW
15901575 (4) Full qty
27
Washer
12639477 (4) Full qty
28
R.H. SWITCH FOR GLASS LIFT
164643 (2) Full qty
28
L.H. SWITCH FOR GLASS LIFT
164642 (1) Full qty
29
L.H. GASKET
65196200 (1) Full qty
29
R.H. GASKET
65196100 (1) Full qty
30
L.H. GLASS SCRAPER
64594900 (1) Full qty
30
R.H. GLASS SCRAPER
64594800 (1) Full qty
31
R.H. GASKET
64905000 (1) Full qty
31
L.H. GASKET
64905100 (1) Full qty
32
L.H. PANEL SEAL
645911.. (1) Full qty
32
R.H. PANEL SEAL
645912.. (1) Full qty
33
L.H. LINING
647450.. (1) Full qty
33
R.H. LINING
647440.. (1) Full qty
33
R.H. UPPER PANEL
645924.. (1) Full qty
33
L.H. UPPER PANEL
645847.. (1) Full qty
34
L.H. LOWER HANDLE
645850.. (1) Full qty
34
R.H. LOWER HANDLE
645947.. (1) Full qty
35
L.H. CENTRAL PANEL
645846.. (1) Full qty
35
R.H. CENTRAL PANEL
645923.. (1) Full qty
35
L.H. LINING
647456.. (1) Full qty
35
R.H. LINING
647455.. (1) Full qty
36
L.H. POCKET
645844.. (1) Full qty
36
R.H. POCKET
645921.. (1) Full qty
36
L.H. LINING
647466.. (1) Full qty
36
R.H. LINING
647465.. (1) Full qty
37
L.H. LINING
647472.. (1) Full qty
37
R.H. POCKET SEAL
645811.. (1) Full qty
37
R.H. LINING
647471.. (1) Full qty
37
L.H. POCKET SEAL
645810.. (1) Full qty
38
SCREW
15901475 (4) Full qty
39
Washer
12639978 (6) Full qty
40
Cap
60101201 (2) Full qty
41
BUTTON
14592587 (6) Full qty
