Rear Structures And Components

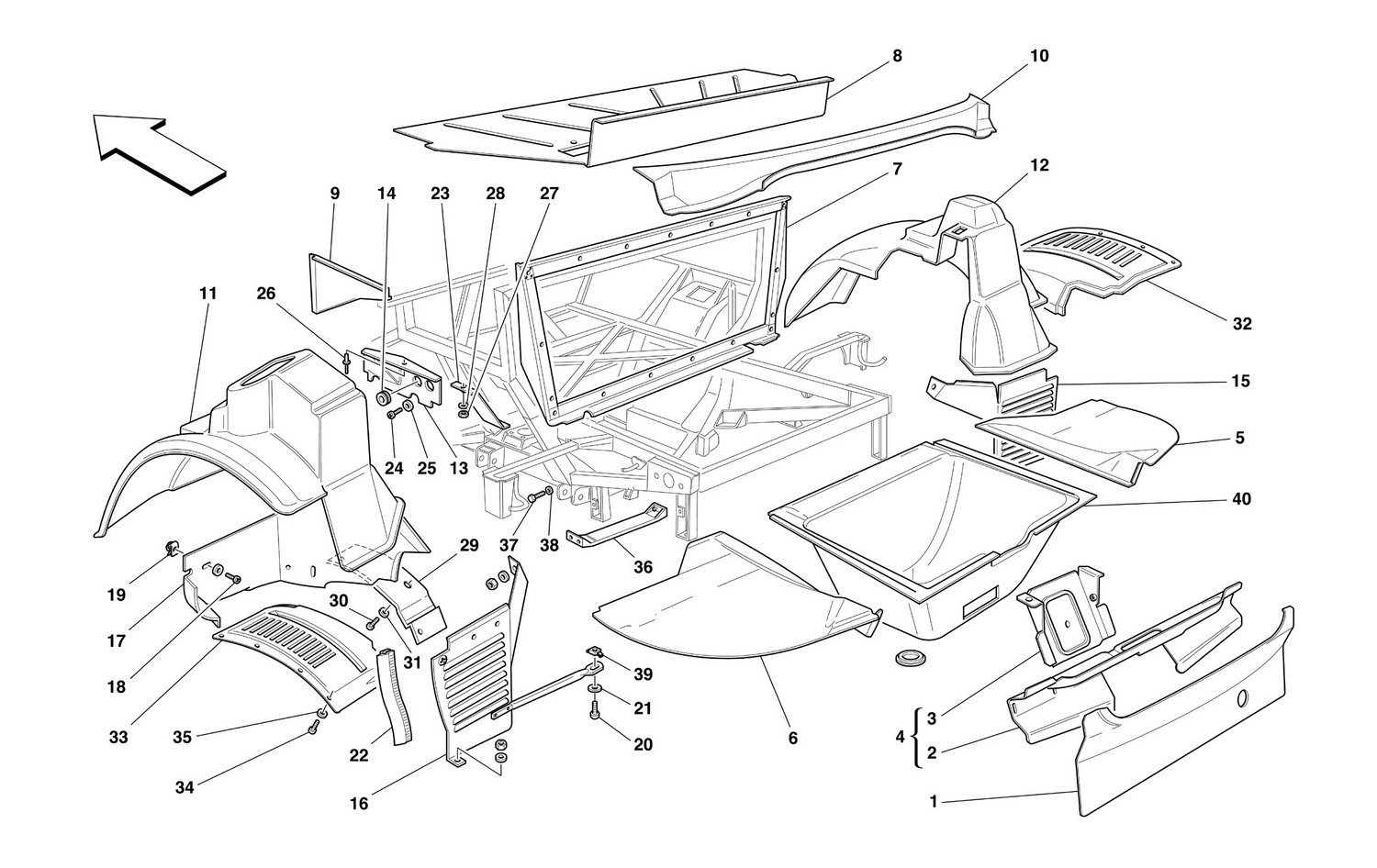

Schematic: Rear Structures And Components
Loc
Part
Cond       Price
1
REAR PANEL
64553000 (1) Full qty
2
STAMPED REAR PANEL
64553100 (1) Full qty
3
REINFORCEMENT
64553200 (1) Full qty
4
COMPLETE STAMPED REAR PANEL
65802100 (1) Full qty
5
R.H. LATERAL TRUNK BOTTOM
64578500 (1) Full qty
5
R.H. LATERAL TRUNK BOTTOM
65939000 (1) Full qty
6
L.H. LATERAL TRUNK BOTTOM
64578600 (1) Full qty
7
FRAME FOR SHIELD
64659900 (1) Full qty
7
FRAME FOR SHIELD
65424600 (1) Full qty
8
PANEL FOR BAGS
65271900 (1) Full qty
8
PANEL FOR BAGS
64778400 (1) Full qty
9
SHIELD FOR L.H. WHEELHOUSE
64557800 (1) Full qty
9
SHIELD FOR R.H. WHEELHOUSE
64557700 (1) Full qty
10
TAIL REAR WINDOW CROSSPIECE
64552600 (1) Full qty
11
COMPLETE L.H. REAR WHEELHOUSE…
64576200 (1) Full qty
12
COMPLETE R.H. REAR WHEELHOUS…
65913600 (1) Full qty
12
COMPLETE R.H. REAR WHEELHOUSE …
64576000 (1) Full qty
13
DOOR FOR PIPES
65236500 (1) Full qty
14
Cable grommet
10396880 (2) Full qty
15
R.H. REAR GRAVEL GUARD
64650700 (1) Full qty
16
L.H. REAR GRAVEL GUARD
64650800 (1) Full qty
17
FRONT GRAVEL GUARD FOR R.H. R…
64887400 (1) Full qty
17
FRONT GRAVEL GUARD FOR L.H. R…
64887300 (1) Full qty
18
SCREW
13276470 (8) Full qty
19
CLIP
62766300 (8) Full qty
20
Screw
13274211 (12) Full qty
21
WASHER
14446924 (12) Full qty
22
GASKET
65260100 (2) Full qty
23
L.H. HEAT SHIELD
65374700 (1) Full qty
23
R.H. HEAT SHIELD
65374800 (1) Full qty
23
L.H. HEAT SHIELD
64337800 (1) Full qty
23
R.H. HEAT SHIELD
64337700 (1) Full qty
24
Screw
13274211 (12) Full qty
25
WASHER
14446924 (12) Full qty
26
RIVET
15624311 (1) Full qty
27
NUT
169180 (8) Full qty
28
WASHER
12638124 (8) Full qty
29
DOOR FOR L.H. REAR SIDE-MARKE…
64711700 (1) Full qty
29
DOOR FOR R.H. REAR SIDE-MARKE…
64711600 (1) Full qty
30
Screw
13274211 (12) Full qty
31
WASHER
14446924 (12) Full qty
32
R.H. WHEELHOUSE DOOR
65915200 (1) Full qty
32
R.H. WHEELHOUSE DOOR
64576100 (1) Full qty
33
L.H. WHEELHOUSE DOOR
64576300 (1) Full qty
34
Screw
13274211 (12) Full qty
35
WASHER
14446924 (12) Full qty
36
MOVABLE CROSS MEMBER
170507 (1) Full qty
37
SCREW
16043224 (4) Full qty
38
Wavy Lock Washer 8mm
127496 (4) Full qty
39
CAGE NUT
14197890 (4) Full qty
40
SPARE WHEEL STEP
64554700 (1) Full qty
