Front Structures And Components

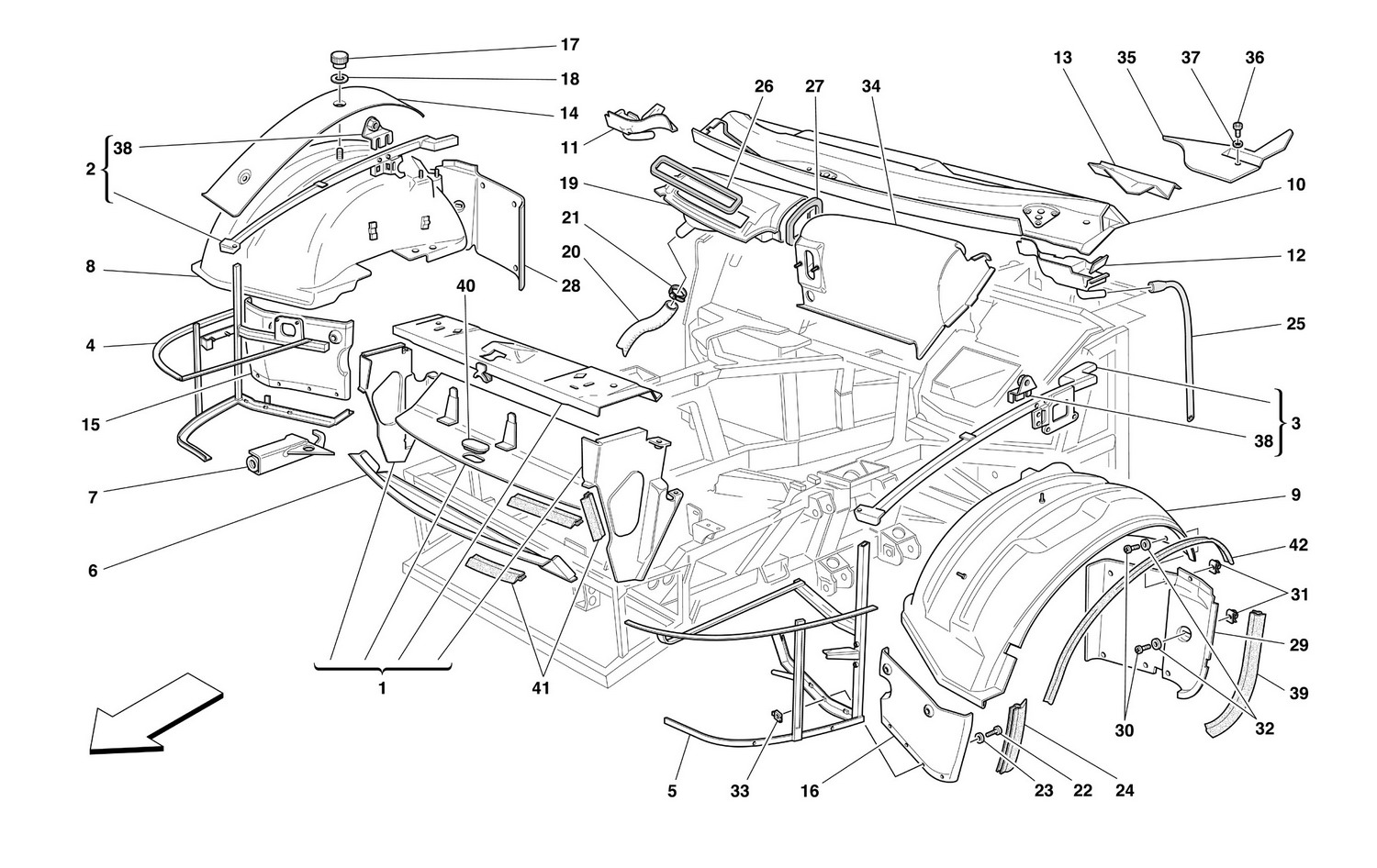

Schematic: Front Structures And Components
Loc
Part
Cond       Price
1
New       £ 3850.00
64716800 (1) Full qty
BW99223n
2
R.H. SIDE FRAME
64945600 (1) Full qty
2
R.H. SIDE FRAME
65219500 (1) Full qty
3
L.H. SIDE FRAME
64945700 (1) Full qty
3
L.H. SIDE FRAME
65219600 (1) Full qty
4
R.H. FRONT FRAME
65177700 (1) Full qty
5
L.H. FRONT FRAME
65177800 (1) Full qty
6
LOWER CONVEYOR
64558400 (1) Full qty
7
TOW HOOK BRACKET
64943000 (1) Full qty
8
R.H. FRONT WHEELHOUSE
64560200 (1) Full qty
8
R.H. FRONT WHEELHOUSE
65210600 (1) Full qty
9
L.H. FRONT WHEELHOUSE
65219400 (1) Full qty
9
L.H. FRONT WHEELHOUSE
64560300 (1) Full qty
10
WINDSHIELD LOWER CROSS MEMBER…
65210700 (1) Full qty
10
WINDSHIELD LOWER CROSS MEMBER…
64787200 (1) Full qty
11
R.H. COMPLETE FRONT INSERT
64789400 (1) Full qty
12
L.H. COMPLETE FRONT INSERT
64789500 (1) Full qty
13
L.H. LOWER SEAL
64561800 (1) Full qty
13
R.H. LOWER SEAL
64561700 (1) Full qty
14
COVER
65142100 (2) Full qty
14
COVER
63198800 (2) Full qty
15
R.H. FRONT GRAVEL GUARD
64902400 (1) Full qty
16
L.H. FRONT GRAVEL GUARD
64902500 (1) Full qty
17
RING NUT
63198900 (6) Full qty
18
SHIM
13604115 (6) Full qty
19
AIR DUCTING
64281800 (1) Full qty
19
AIR DUCTING
63200700 (1) Full qty
20
WATER EXHAUST TUBE
63200800 (1) Full qty
20
WATER EXHAUST TUBE
64537300 (1) Full qty
21
SCREW COLLAR
13000690 (1) Full qty
22
SCREW
10902224 (14) Full qty
23
Washer 1.6mm 6.4x11.95x1.6
10519424 (14) Full qty
24
GASKET
65260100 (2) Full qty
25
WATER EXHAUST TUBE
65195300 (2) Full qty
26
GASKET
65192200 (1) Full qty
27
GASKET
63201100 (1) Full qty
28
R.H. LOWER FRONT WHEELHOUSE
64560400 (1) Full qty
29
L.H. LOWER FRONT WHEELHOUSE
64560500 (1) Full qty
30
SCREW
13276477 (14) Full qty
31
CLIP
62766300 (6) Full qty
32
Washer 1.6mm 6.4x11.95x1.6
10519424 (14) Full qty
33
Caget nut
60758600 (8) Full qty
34
PROTECTION FOR AIR CONDITIONI…
170688 (1) Full qty
34
PROTECTION FOR AIR CONDITIONIN…
65081800 (1) Full qty
35
L.H. LATERAL COVER
65194200 (1) Full qty
35
R.H. LATERAL COVER
65194100 (1) Full qty
36
SCREW
64460500 (2) Full qty
37
WASHER
12638124 (2) Full qty
38
HOOD GAS SHOCK ABSORBER BRAC…
65886700 (2) Full qty
39
GASKET
65747600 (2) Full qty
40
CAP
62797700 (1) Full qty
41
GASKET
63403200 (3) Full qty
42
GASKET
65747600 (2) Full qty
