Instruments Panel

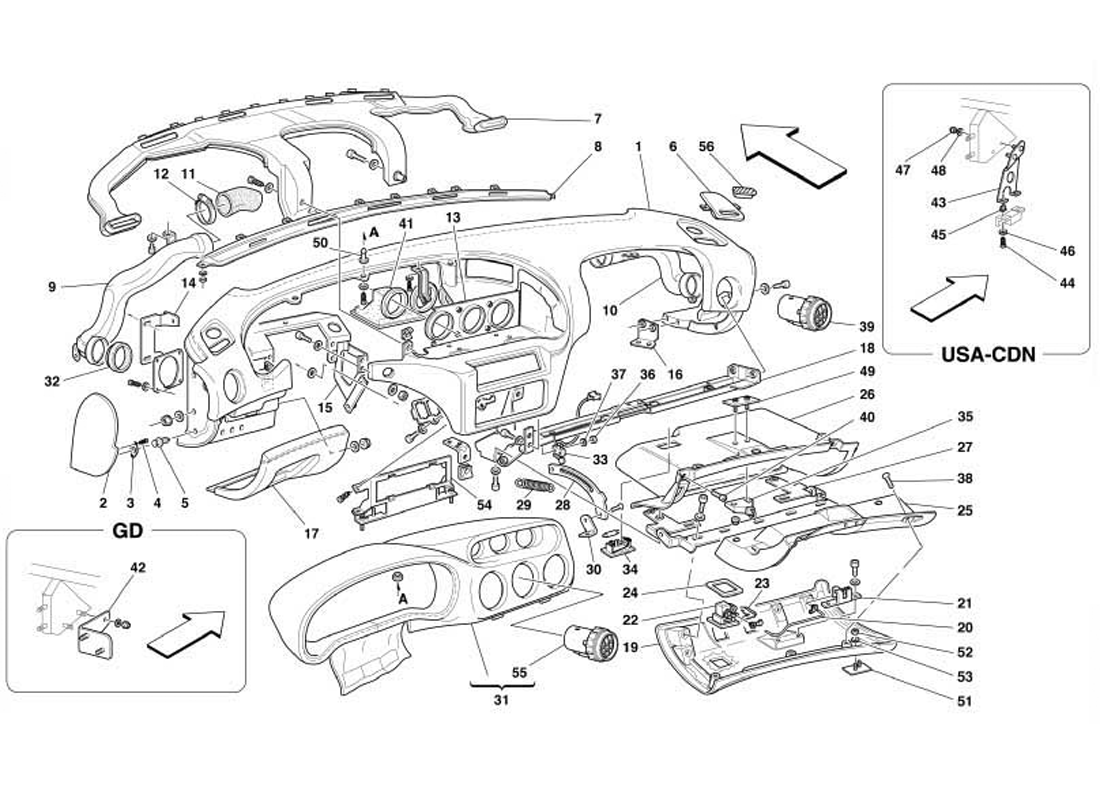

Schematic: Instruments Panel
Loc
Part
Cond       Price
1
COVERED DASHBOARD WITH INSTRUM…
647583.. (1) Full qty
1
COVERED DASHBOARD WITH INSTRUM…
651138.. (1) Full qty
2
L.H. LATERAL COVER
647665.. (1) Full qty
2
R.H. LATERAL COVER
647668.. (1) Full qty
3
PLATE
64712800 (4) Full qty
4
SCREW
15914877 (8) Full qty
5
New       Price on Enquiry
14188181 (4) Full qty
NT10190n
6
R.H. TWEETER PLATE
63204200 (1) Full qty
6
L.H. TWEETER PLATE
63204300 (1) Full qty
7
AIR DUCTING
64707400 (1) Full qty
7
AIR DUCTING
65024100 (1) Full qty
8
WINDSCREEN LOWER ENCLOSURE
63202100 (1) Full qty
9
L.H. AIR DUCTING
64706200 (1) Full qty
9
L.H. AIR DUCTING
65212200 (1) Full qty
10
R.H. AIR DUCTING
64706300 (1) Full qty
10
R.H. AIR DUCTING
65212100 (1) Full qty
11
L.H. SLEEVE
64758200 (1) Full qty
11
L.H. SLEEVE
65217300 (1) Full qty
11
R.H. SLEEVE
64758100 (1) Full qty
11
R.H. SLEEVE
65216600 (1) Full qty
12
Clamp
10301890 (2) Full qty
13
AIR DUCT CONNECTION
64719500 (1) Full qty
14
DASHBOARD R.H. LATERAL FIXING …
64701500 (1) Full qty
14
DASHBOARD L.H. LATERAL FIXING …
64701700 (1) Full qty
15
BRACKET
64720000 (1) Full qty
15
BRACKET
65049700 (1) Full qty
16
R.H. BRACKET
64703200 (1) Full qty
16
L.H. BRACKET
65024700 (1) Full qty
17
L.H. LOWER COVER
647591.. (1) Full qty
17
R.H. LOWER COVER
650250.. (1) Full qty
18
L.H. SIDE BRACKET
64588000 (1) Full qty
18
R.H. SIDE BRACKET
65049400 (1) Full qty
19
GLOVE BOX SHUTTER
645882.. (1) Full qty
19
GLOVE BOX SHUTTER
650498.. (1) Full qty
20
TIE ROD
64653900 (1) Full qty
20
TIE ROD
65166800 (1) Full qty
21
GLOVE BOX LOCK
63768800 (1) Full qty
22
PUSH BUTTON
64926500 (1) Full qty
23
FORK
63769000 (1) Full qty
24
PLATE
63768900 (1) Full qty
25
DOOR FRAME
64653700 (1) Full qty
25
DOOR FRAME
65024900 (1) Full qty
26
DASHBOARD DRAWER
64767600 (1) Full qty
26
DASHBOARD DRAWER
65103900 (1) Full qty
27
BOX HINGE
64653200 (1) Full qty
27
BOX HINGE
65026800 (1) Full qty
28
LEVER
63765700 (1) Full qty
29
DOOR SPRING
63876700 (1) Full qty
30
BRACKET
64580800 (1) Full qty
30
BRACKET
65024600 (1) Full qty
31
COVERED DASH BOARD
665003.. (1) Full qty
31
COVERED DASH BOARD
665017.. (1) Full qty
32
GASKET
62188300 (2) Full qty
33
MICRO-SWITCH
173939 (1) Full qty
34
ROOF LIGHT
139517 (1) Full qty
35
STRIKER
65258900 (1) Full qty
36
Nut
61524300 (2) Full qty
37
Washer
61524200 (4) Full qty
38
SCREW
65212000 (3) Full qty
39
AIR OPENING
63352600 (5) Full qty
40
PIN
65361300 (2) Full qty
41
UNION FROM EVAPORATOR UNIT TO …
64587400 (1) Full qty
41
UNION FROM EVAPORATOR UNIT TO …
65024300 (1) Full qty
42
INTERMEDIATE BRACKET
171800 (1) Full qty
43
OBDII CONNECTOR FIXING BRACKET…
168961 (1) Full qty
44
SCREW
15688170 (2) Full qty
45
Block
14202580 (2) Full qty
46
WASHER
10519224 (2) Full qty
47
NUT
113647 (2) Full qty
48
WASHER
12637824 (2) Full qty
49
STRIKER FIXING PLATE
63765300 (1) Full qty
50
PIN
65879900 (3) Full qty
51
CAMPIONI DEL MONDO PLATE
66537510 (1) Full qty
52
Nut
16101711 (2) Full qty
53
WASHER
12544079 (2) Full qty
54
BRACKET
64596500 (1) Full qty
