Clutch Release Control - Rhd

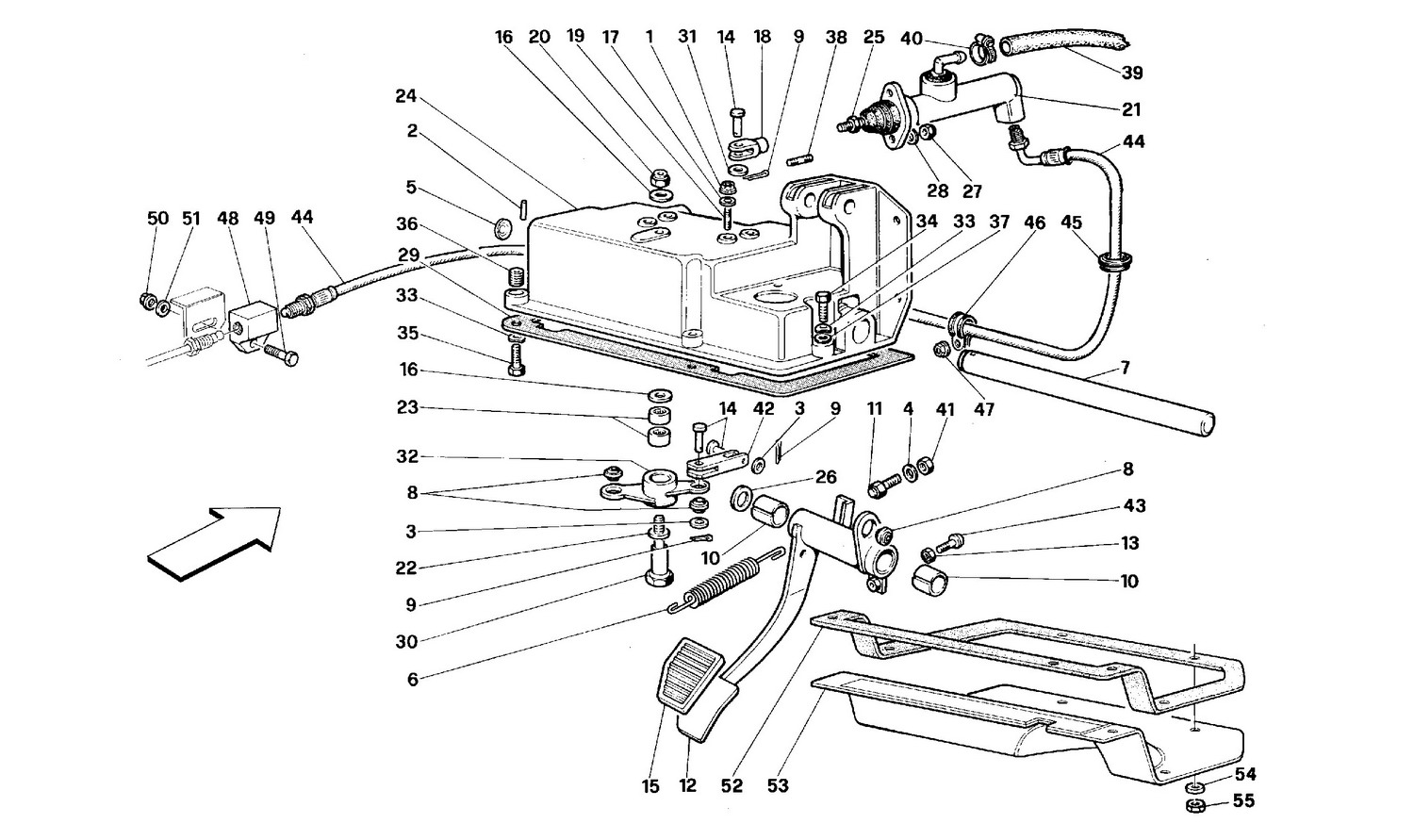

Schematic: Clutch Release Control - Rhd
Loc
Part
Cond       Price
1
NUT
15896214 (4) Full qty
2
Pin
13942870 (1) Full qty
3
Washer
10519624 (2) Full qty
4
Do Not Use - See GE07667n
12601374 (1) Full qty
4
New       £ 0.12
12601374 (1) Full qty
CH11905n
5
New       Price on Enquiry
10158801 (1) Full qty
CH11920n
6
New       Price on Enquiry
104895 (1) Full qty
PB14046n
7
Pin for pedal spring
113831 (1) Full qty
8
Ball joint
109407 (3) Full qty
9
Split pin
10734201 (3) Full qty
10
Bush
103163 (2) Full qty
11
Stop push rod
114825 (1) Full qty
12
Clutch pedal
151321 (1) Full qty
13
NUT
16102314 (1) Full qty
14
Clevis Pin
10050814 (3) Full qty
15
PEDAL RUBBER
132818 (1) Full qty
16
Washer
113500 (2) Full qty
17
WASHER
12643724 (4) Full qty
18
Fork
10007871 (1) Full qty
19
STUD
11500124 (4) Full qty
20
New       £ 3.56
148020 (1) Full qty
FS00201n
21
Clutch Master Cylinder
175211 (1) Full qty
22
Shim
112126 (1) Full qty
23
Roller cage
115430 (2) Full qty
24
Pedal suport
155181 (1) Full qty
24
Pedal support
123472 (1) Full qty
26
Shim
106083 (1) Full qty
26
Shim, 1,4 mm. thick
113836 (1) Full qty
26
Shim, 1,1 mm. thick
113833 (1) Full qty
26
Shim, 1,3 mm. thick
113835 (1) Full qty
26
Shim, 1,2 mm. thick
113834 (1) Full qty
27
Selflocking nut
16104121 (2) Full qty
29
Gasket
156663 (1) Full qty
30
Pin for relay lever
114830 (1) Full qty
31
Washer
12642701 (1) Full qty
32
Relay lever
148821 (1) Full qty
33
Wavy Lock Washer 8mm
127496 (5) Full qty
34
New       £ 0.32
16043834 (3) Full qty
BS00099n
35
SCREW
16043424 (2) Full qty
36
Heli-coil
13525870 (2) Full qty
38
New       Price on Enquiry
13543524 (2) Full qty
GE00055n
39
PIPE FROM CLUTCH PUMP TO TANK
151845 (1) Full qty
40
SCREW COLLAR
157934 (2) Full qty
40
SCREW COLLAR
157934 (2) Full qty
41
Nut
133989 (1) Full qty
42
Fork
112172 (1) Full qty
43
Clutch adjustment cap
144011 (1) Full qty
44
Clutch control hose
149628 (1) Full qty
45
Cable grommet
105369 (1) Full qty
46
Clamp
10441290 (1) Full qty
48
Union
148869 (1) Full qty
49
Screw
10902724 (1) Full qty
51
Washer
12646601 (1) Full qty
52
Gasket
118422 (1) Full qty
53
Cover
123228 (1) Full qty
55
Nyloc Nut 6 x 1 x 7.6mm
102948 (5) Full qty
