Clutch Release Control - Lhd

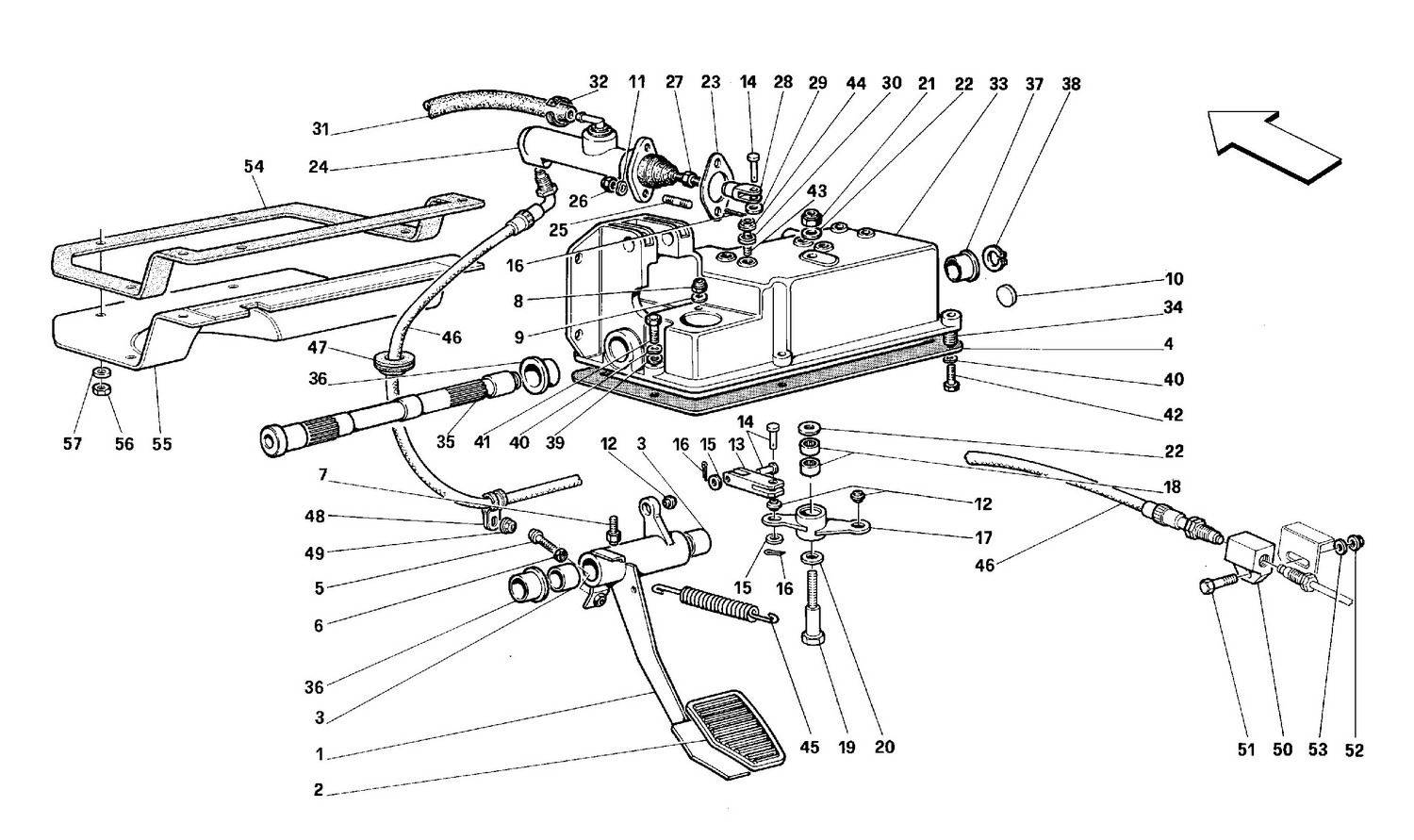

Schematic: Clutch Release Control - Lhd
Loc
Part
Cond       Price
1
Clutch pedal
148837 (1) Full qty
2
New       £ 10.95
106949 (1) Full qty
PB10405n
3
Bush
103163 (2) Full qty
4
Gasket
119331 (1) Full qty
5
Clutch adjustment cap
144011 (1) Full qty
6
NUT
16102314 (1) Full qty
7
Stop push rod
114825 (1) Full qty
8
Nut
133989 (1) Full qty
9
Do Not Use - See GE07667n
12601374 (1) Full qty
9
New       £ 0.12
12601374 (1) Full qty
CH11905n
10
New       Price on Enquiry
10158801 (1) Full qty
CH11920n
12
Ball joint
109407 (3) Full qty
13
Fork
112172 (1) Full qty
14
Clevis Pin
10050814 (3) Full qty
15
Washer
10519624 (2) Full qty
16
Split pin
10734201 (3) Full qty
17
Relay lever
148821 (1) Full qty
18
Roller cage
115430 (2) Full qty
19
Pin for relay lever
114830 (1) Full qty
20
Shim
112126 (1) Full qty
21
New       £ 3.56
148020 (1) Full qty
FS00201n
22
Washer
113500 (2) Full qty
23
Switch cables
124469 (1) Full qty
24
Clutch Master Cylinder
175211 (1) Full qty
25
New       Price on Enquiry
13543524 (2) Full qty
GE00055n
26
Selflocking nut
16104121 (2) Full qty
28
Fork
10007871 (1) Full qty
29
Washer
12642701 (1) Full qty
30
WASHER
12643724 (4) Full qty
31
Feed pipe for clutch master c…
155961 (1) Full qty
32
SCREW COLLAR
157934 (2) Full qty
32
SCREW COLLAR
157934 (2) Full qty
33
Pedal support
155180 (1) Full qty
33
Pedal support
123247 (1) Full qty
34
Threaded bush
124777 (2) Full qty
35
Pedals supporting pin
112152 (1) Full qty
36
Bush
124687 (2) Full qty
37
Bush
124686 (1) Full qty
38
Spring ring
11066676 (1) Full qty
40
Wavy Lock Washer 8mm
127496 (5) Full qty
41
New       £ 0.32
16043834 (3) Full qty
BS00099n
42
SCREW
16043424 (2) Full qty
43
STUD
11500124 (4) Full qty
44
NUT
15896214 (4) Full qty
45
New       Price on Enquiry
104895 (1) Full qty
PB14046n
46
Clutch control hose
149628 (1) Full qty
47
Cable grommet
105369 (1) Full qty
48
Clamp
10441290 (1) Full qty
50
Union
148869 (1) Full qty
51
Screw
10902724 (1) Full qty
53
Washer
12646601 (1) Full qty
54
Gasket
118422 (1) Full qty
55
Cover
118421 (1) Full qty
56
Nyloc Nut 6 x 1 x 7.6mm
102948 (5) Full qty
