Front Headlight Lifting Device

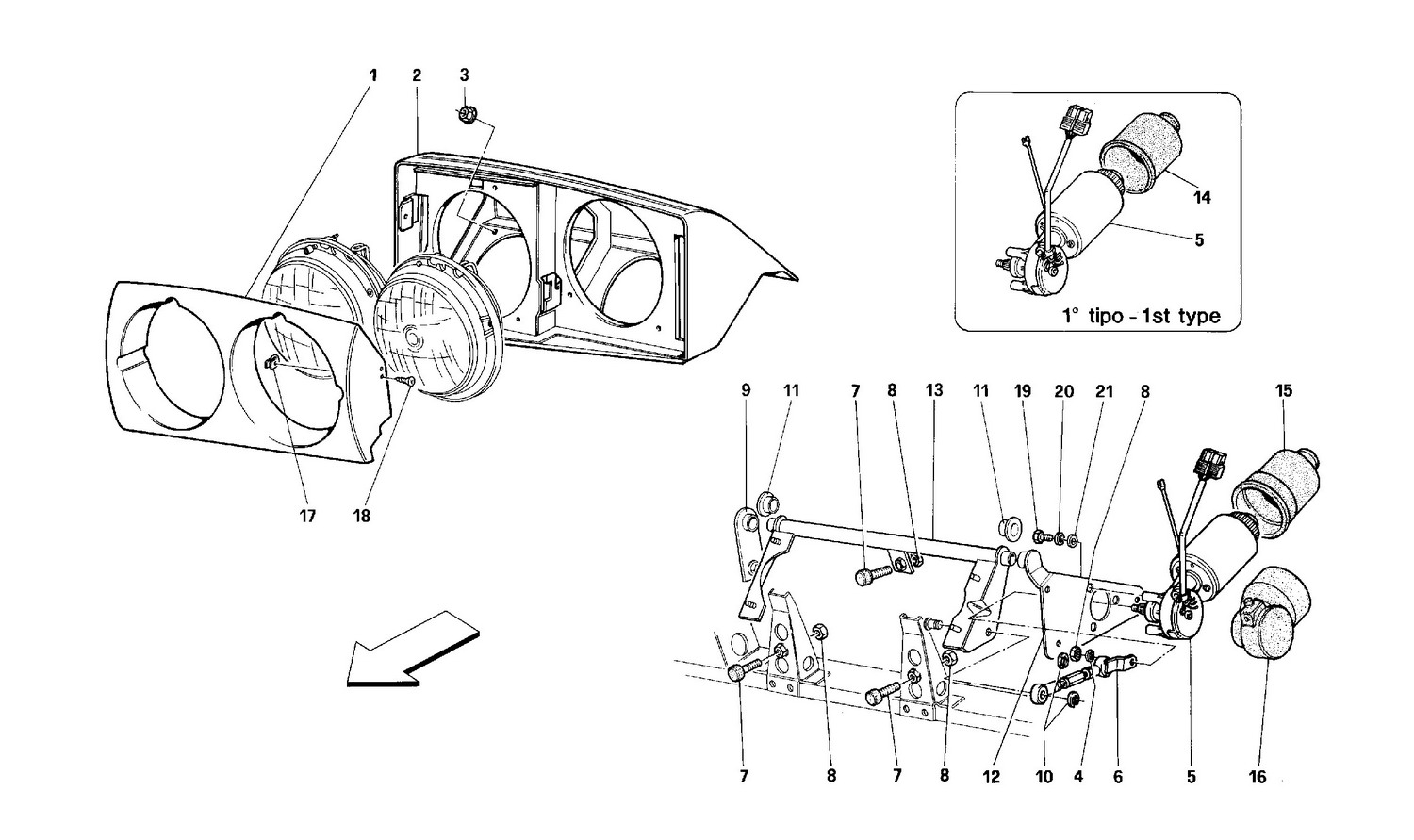

Schematic: Front Headlight Lifting Device
Loc
Part
Cond       Price
1
Left headlamp frame
61527300 (1) Full qty
1
Right headlamp frame
61527200 (1) Full qty
2
Housing for right headlamp fla…
61527400 (1) Full qty
2
Housingfor left headlamp flap
61527500 (1) Full qty
3
Nut
13832101 (8) Full qty
4
WASHER
10615474 (2) Full qty
5
L.H. headlight lifting motor
149133 (1) Full qty
5
R.H. headlight lifting motor
149134 (1) Full qty
6
New       Price on Enquiry
61268600 (2) Full qty
BW99134n
7
HEADLIGHT ADJUSTER SCREW
63346800 (6) Full qty
8
NUT
15896214 (10) Full qty
9
Right bracket
61556000 (1) Full qty
9
Left bracket
61556100 (1) Full qty
10
Stop ring
11087876 (6) Full qty
11
Bushing
61575500 (4) Full qty
12
L.H. support bracket
61531300 (1) Full qty
12
R.H. support bracket
61531200 (1) Full qty
13
Lifting linkage for left lamp
61531100 (1) Full qty
13
Lifting linkage for right lamp…
61531000 (1) Full qty
14
Protection for motor
149039 (2) Full qty
15
New       Price on Enquiry
60331402 (2) Full qty
ET02480n
16
Lower guard for L.H. headlight…
60331303 (1) Full qty
16
Lower guard for R.H. headlight…
60331204 (1) Full qty
17
Spring
60695800 (4) Full qty
18
SCREW
15914870 (4) Full qty
19
Screw
10902221 (6) Full qty
21
WASHER
14496424 (6) Full qty
