Dashboard

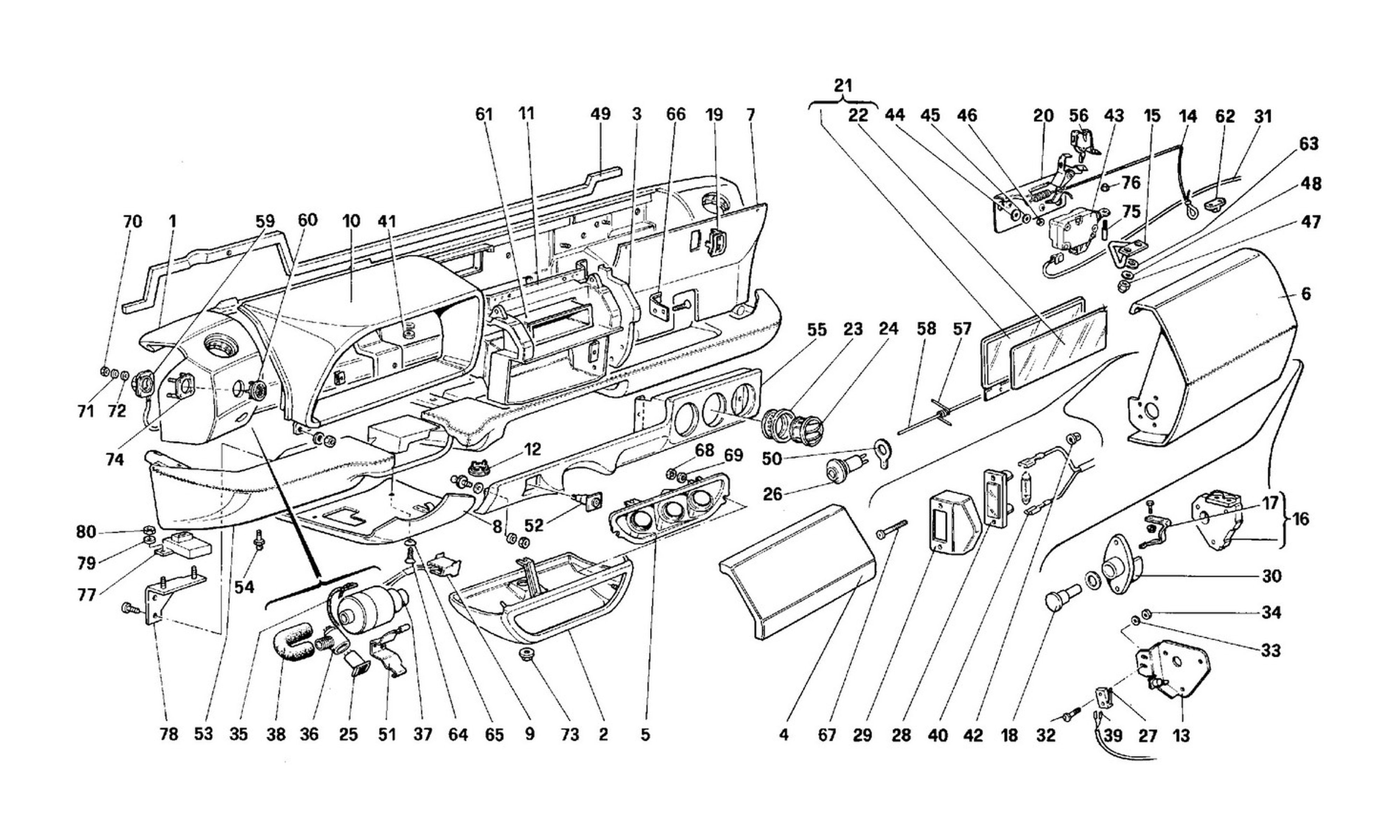

Schematic: Dashboard
Schematic: Dashboard
Loc
Part
Cond       Price
1
Dash board frame
63108900 (1) Full qty
1
Dash board frame
63079100 (1) Full qty
2
Instruments panel
63699600 (1) Full qty
2
Instruments panel
63454600 (1) Full qty
3
L.H. side panel
63107000 (1) Full qty
3
R.H. side panel
63085300 (1) Full qty
4
Radio box panel
63078700 (1) Full qty
4
Radio box panel
63107100 (1) Full qty
5
Instruments plate
63924100 (1) Full qty
5
Instruments plate
63116300 (1) Full qty
5
Instruments plate
63462700 (1) Full qty
6
Glove box
63455200 (1) Full qty
7
Rear cover for glove box
63454800 (1) Full qty
8
Steering column cover
63410300 (1) Full qty
8
Steering column cover
63413000 (1) Full qty
8
Steering column cover
63924700 (1) Full qty
9
Sensor cable for internal temp…
119430 (1) Full qty
10
Housing instruments
63079300 (1) Full qty
11
Air vent frame work
63106700 (1) Full qty
11
Air vent frame work
63079200 (1) Full qty
12
Frame for gasket
61503600 (2) Full qty
13
Bracket
61554500 (1) Full qty
13
Bracket
61534600 (1) Full qty
14
Safety cable
61554400 (1) Full qty
15
Lock striker
61554600 (1) Full qty
16
Right fixed hinge
61522400 (1) Full qty
16
Left fixed hinge
61522500 (1) Full qty
17
Clip
61522000 (2) Full qty
18
Pin
61522800 (2) Full qty
19
Frame
61554700 (1) Full qty
20
Lock bracket
61545800 (1) Full qty
20
Lock bracket
61545700 (1) Full qty
21
Mirror, complete
61577400 (1) Full qty
22
Courtesy mirror
61523200 (1) Full qty
23
Air vent frame ring
61528500 (3) Full qty
24
Air vent
61528600 (3) Full qty
25
Sensor for internal temperatur…
61079100 (1) Full qty
26
Socket
61523600 (1) Full qty
27
Switch
61523700 (1) Full qty
28
Dash board box lamp
61647200 (2) Full qty
29
Dash board box lamp frame
61523800 (2) Full qty
30
Right mobile hinge
61522600 (1) Full qty
30
L.H. mobile hinge
63403500 (1) Full qty
31
Socket cables
124410 (1) Full qty
32
Screw
61524100 (2) Full qty
33
Washer
61524200 (2) Full qty
34
Nut
61524300 (2) Full qty
35
O Ring Seal
New       Price on Enquiry
120065 (1) Full qty
BS00330n
36
Box sensor
61079200 (1) Full qty
37
Intake Fan
New       £ 151.55
61983500 (1) Full qty
AC00535n
38
Tube from suction fan to senso…
124039 (1) Full qty
39
Switch cable
124409 (1) Full qty
40
Lamp cables
124411 (1) Full qty
41
Nut
14084111 (4) Full qty
42
BLOCK
14115680 (4) Full qty
43
Lock magnet
61523100 (1) Full qty
44
WASHER
12643724 (2) Full qty
45
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
46
NUT
15896214 (2) Full qty
47
Nut
14051849 (2) Full qty
48
WASHER
161011 (2) Full qty
49
Dashboard support structure
63108600 (1) Full qty
49
Dashboard support structure
61554300 (1) Full qty
50
TERMINAL
60701400 (1) Full qty
51
Bracket
61089500 (1) Full qty
52
ABS cut out push
153041 (1) Full qty
52
Parking lights switch
149763 (1) Full qty
53
Knee protection
63410200 (1) Full qty
53
Knee protection
63412700 (1) Full qty
53
Knee protection
63699800 (1) Full qty
53
Knee protection
63452500 (1) Full qty
54
Male connector for button
60084407 (1) Full qty
55
Lower cover
63460300 (1) Full qty
55
Lower cover
63460500 (1) Full qty
55
Lower cover
63079000 (1) Full qty
55
Lower cover
63460600 (1) Full qty
55
Lower cover
63106800 (1) Full qty
55
Lower cover
63460400 (1) Full qty
56
Glove box lock
61545600 (1) Full qty
57
Clip
61577500 (1) Full qty
58
Pin
61577600 (1) Full qty
59
Tweeter
146216 (2) Full qty
60
Tweeter grill protection
63032800 (2) Full qty
61
Radio box
61541600 (1) Full qty
62
Hook
63435000 (1) Full qty
63
WASHER
12642807 (2) Full qty
64
Screw
15690778 (4) Full qty
65
WASHER
13338047 (4) Full qty
66
Bracket arrester box
63422600 (1) Full qty
67
SCREW
15908678 (2) Full qty
69
Washer
12624101 (2) Full qty
70
Nut
16101711 (8) Full qty
71
Washer
10615170 (8) Full qty
72
Washer
12639401 (8) Full qty
73
NUT
14039714 (8) Full qty
74
Plate
63422700 (2) Full qty
75
Pin
63422500 (1) Full qty
76
Nut
14084011 (1) Full qty
77
CONTROL STATION
156086 (1) Full qty
78
Bracket
153983 (1) Full qty
79
WASHER
14496277 (2) Full qty
80
Nut
10794011 (2) Full qty
