Door - Finishing

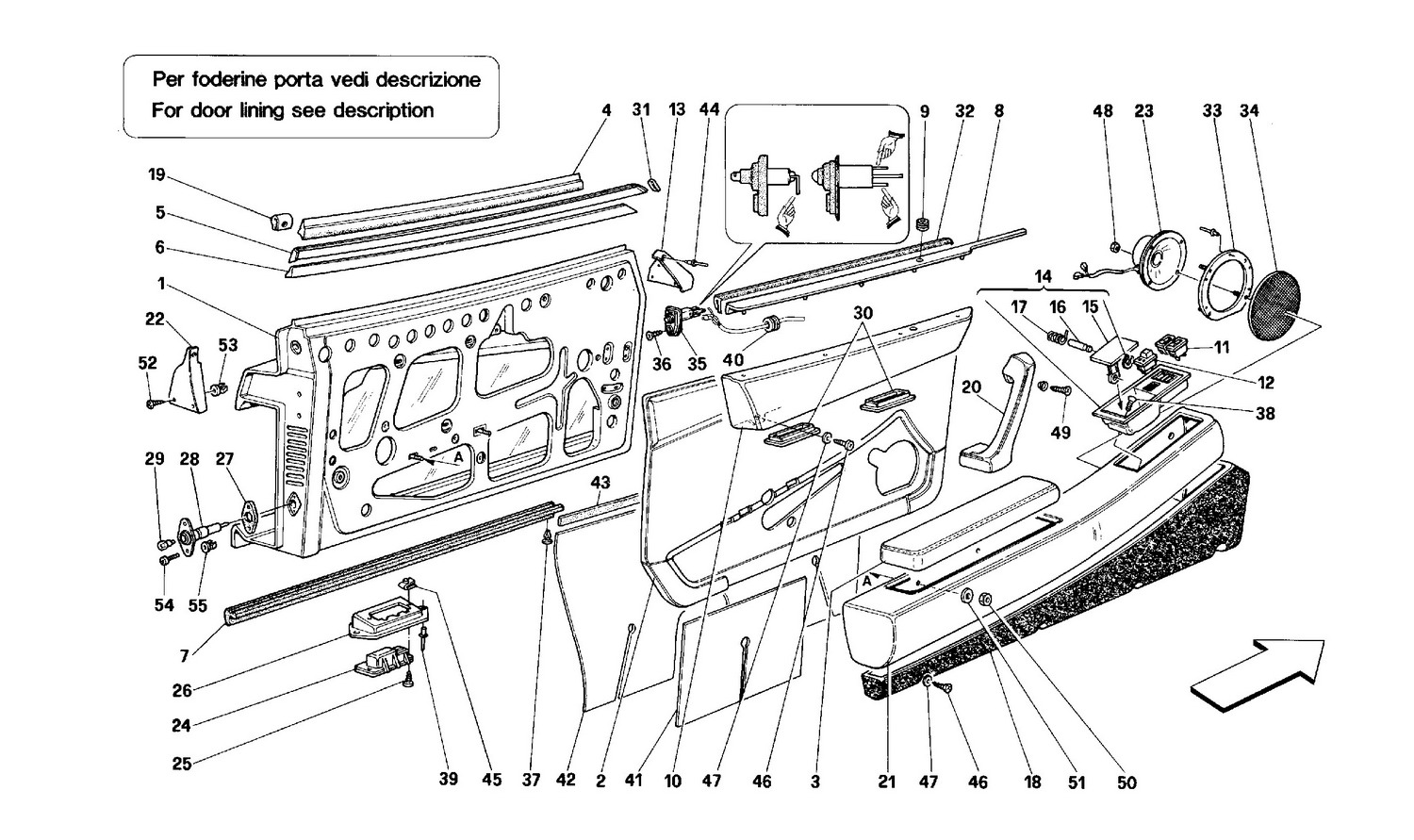

Schematic: Door - Finishing
Loc
Part
Cond       Price
1
R.H. door
63464800 (1) Full qty
1
Lining for outside door panel
63405400 (1) Full qty
1
Lining for L.H. outside door p…
63405500 (1) Full qty
1
L.H. door
63464900 (1) Full qty
2
L.H. panel
63467600 (1) Full qty
2
R.H. panel
63467500 (1) Full qty
3
L.H. coating
63097900 (1) Full qty
3
R.H. coating
63097800 (1) Full qty
4
Left gasket
61573700 (1) Full qty
4
Right gasket
61573600 (1) Full qty
5
Left outer moulding
61539200 (1) Full qty
5
Right outer moulding
61539300 (1) Full qty
6
LH run channel
61543600 (1) Full qty
6
RH run channel
61543500 (1) Full qty
7
Underdoor gasket
61539600 (2) Full qty
8
Moulding for L.H. belt
63098312 (1) Full qty
8
Moulding for R.H. belt
63098212 (1) Full qty
9
Bush
61813500 (2) Full qty
10
R.H. upper trim
63098000 (1) Full qty
10
L.H. upper trim
63098100 (1) Full qty
11
R.H. SWITCH FOR GLASS LIFT
147207 (2) Full qty
11
New       £ 39.93
147206 (1) Full qty
EL99694n
12
SWITCH FOR OUTER REARVIEW MIRR…
134414 (1) Full qty
13
Left gasket for door front sid…
61505800 (1) Full qty
13
Right gasket for door front si…
61505700 (1) Full qty
14
L.H. inner handle complete
63410500 (1) Full qty
14
L.H. inner handle complete
63410700 (1) Full qty
14
R.H. inner handle complete
63410600 (1) Full qty
14
R.H. inner handle complete
63410400 (1) Full qty
15
Left handle
61504700 (1) Full qty
15
Right handle
61504600 (1) Full qty
16
Pin
63411000 (2) Full qty
17
L.H. spring
63410900 (1) Full qty
17
R.H. spring
63410800 (1) Full qty
18
R.H. lower covering for door …
63097400 (1) Full qty
18
L.H. lower covering for door …
63097500 (1) Full qty
19
Spring
63117300 (2) Full qty
20
R.H. inner handle
63097600 (1) Full qty
20
L.H. inner handle
63097700 (1) Full qty
21
R.H. armrest
63097100 (1) Full qty
21
L.H. armrest
63097200 (1) Full qty
22
R.H. frame for door rear side
63089800 (1) Full qty
22
L.H. frame for door rear side
63089900 (1) Full qty
23
Woofer loudspeaker
150626 (2) Full qty
24
Roof lamp
65088400 (2) Full qty
24
Courtesy lamp
60842100 (2) Full qty
25
Screw for underdoor lamp
13272042 (4) Full qty
26
Frame
60842000 (2) Full qty
27
GASKET
140576 (2) Full qty
28
Open
60788100 (2) Full qty
29
Lamp
101525 (2) Full qty
30
Frame for air outlet
61533100 (4) Full qty
31
Front butt for L.H. moulding
63058700 (1) Full qty
31
Front butt for R.H. moulding
63058600 (1) Full qty
32
New       £ 87.45
61811100 (2) Full qty
BW99364n
33
Loudspeaker support ring
63409700 (2) Full qty
34
Protection
62801000 (2) Full qty
35
Switch to signal. open door
141894 (2) Full qty
35
New       Price on Enquiry
153069 (2) Full qty
EL00320n
36
SCREW
15915977 (2) Full qty
37
RIVET
62764000 (18) Full qty
38
Screw
145998 (2) Full qty
39
Rivet to fix. evaporator apron…
60643400 (0) Full qty
40
Cable guide
10396380 (2) Full qty
41
Lining for door panel
63405600 (2) Full qty
42
Lining for inner door panel
63405300 (2) Full qty
43
Band
62387000 (1) Full qty
44
Fixing drip grip
60310703 (10) Full qty
45
Clip for underp'oaf lamp
60841900 (4) Full qty
46
Screw
15692677 (10) Full qty
46
Screw
15692670 (2) Full qty
47
WASHER
13338047 (10) Full qty
47
WASHER
62768300 (2) Full qty
48
Nut
14084011 (8) Full qty
49
SCREW
62781600 (2) Full qty
50
Nyloc Nut 6 x 1 x 7.6mm
102948 (6) Full qty
51
WASHER
12640624 (6) Full qty
52
Screw
15690778 (4) Full qty
53
NUT SCREW
62765000 (4) Full qty
54
SCREW
15901470 (4) Full qty
55
BLOCK
14115580 (4) Full qty
