Body - Internal Components

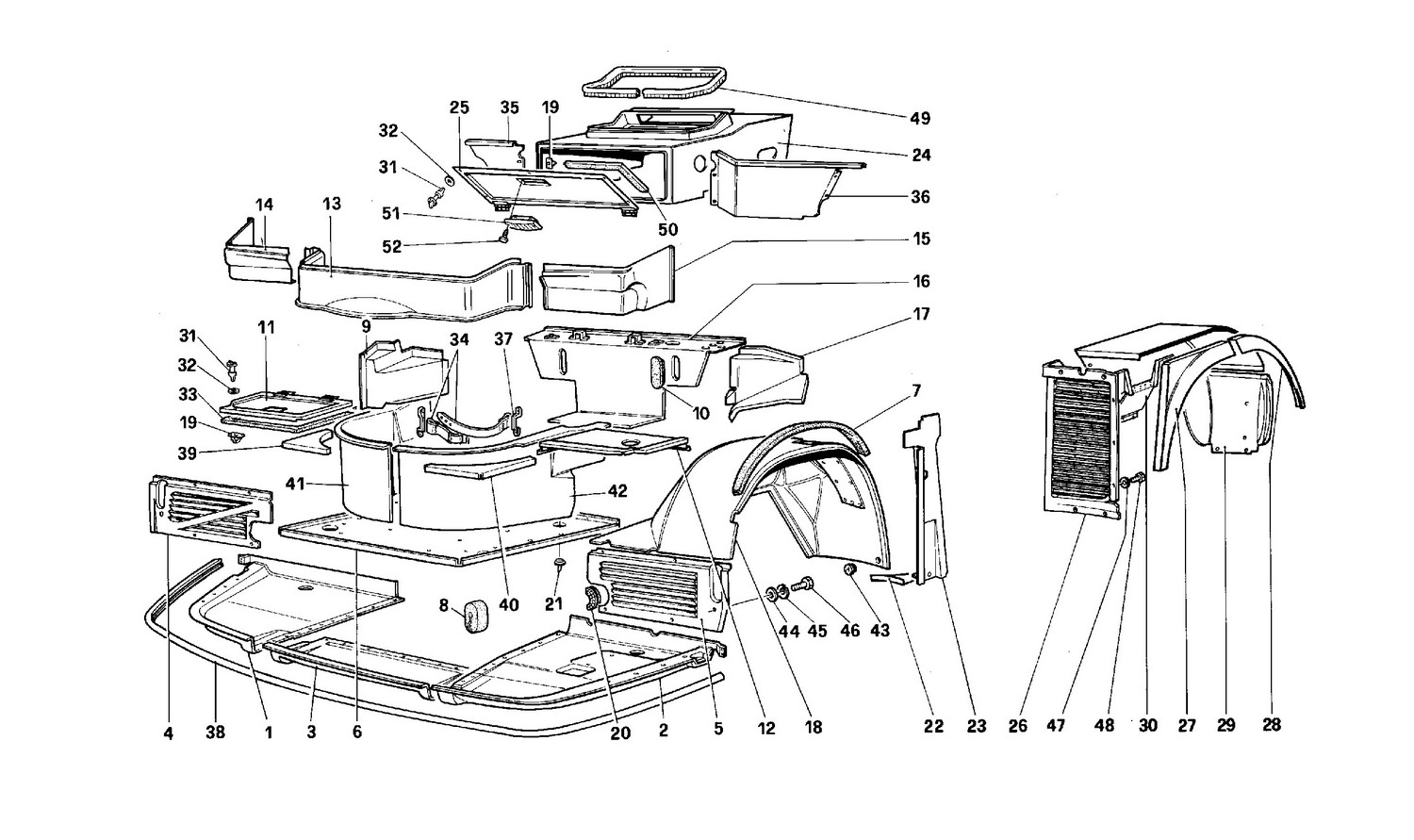

Schematic: Body - Internal Components
Loc
Part
Cond       Price
1
R.H. side guard for underbody
63084600 (1) Full qty
2
L.H. side guard for underbody
63084500 (1) Full qty
3
R.H. front central guard for…
63084200 (1) Full qty
4
R.H. battery inspection door
63926700 (1) Full qty
5
L.H. inspection door
63926800 (1) Full qty
6
Trunk bottom plate
63085100 (1) Full qty
7
GASKET
62926100 (2) Full qty
8
SEALING
63393900 (1) Full qty
9
Left angle piece for wheel hou…
61479500 (1) Full qty
9
Right angle piece for wheel ho…
61479400 (1) Full qty
10
Plug
62845000 (2) Full qty
11
Battery compartment lid
61479800 (1) Full qty
12
Cover
63095900 (1) Full qty
13
Central movable shieldpanel
63084800 (1) Full qty
14
Right movable shieldpanel
61480100 (1) Full qty
15
Left movable shieldpanel
61480200 (1) Full qty
16
Rear luggage compartment panel…
63095800 (1) Full qty
16
Rear luggage compartment panel…
63109800 (1) Full qty
17
R.H. front panel
63462000 (1) Full qty
17
Left front panel
61480400 (1) Full qty
17
R.H. front panel
63461700 (1) Full qty
18
R.H. front wheelhouse assembly…
63090000 (1) Full qty
18
L.H. front wheelhouse assembly…
63090100 (1) Full qty
19
Clip
61529200 (4) Full qty
20
Gasket
63404500 (2) Full qty
20
Gasket
62987700 (2) Full qty
21
Plug
60731300 (4) Full qty
22
Right cover
61481200 (1) Full qty
22
Left cover
61481300 (1) Full qty
23
Right door inner pillar
61481400 (1) Full qty
23
Left door inner pillar
61481500 (1) Full qty
24
Nut
- (1) Full qty
25
Electric board cover
63952700 (1) Full qty
25
Electric board cover
61481700 (1) Full qty
26
Front section of L.H. rear w…
63090500 (1) Full qty
26
Front section of R.H. rear w…
63090400 (1) Full qty
27
Front side section of L.H. rea…
63090700 (1) Full qty
27
Front side section of R.H. rea…
63090600 (1) Full qty
28
Rear side section of rear left…
61482200 (1) Full qty
28
Rear side section of rear left…
61482300 (1) Full qty
29
Rear section of R.H. rear wh…
63093600 (1) Full qty
29
Rear section of L.H. rear wh…
63093700 (1) Full qty
30
Upper section of L.H. rear w…
63090300 (1) Full qty
30
Upper section of R.H. rear w…
63090200 (1) Full qty
31
Pin securing battery and conde…
61530300 (4) Full qty
32
Pin gasket
61529400 (4) Full qty
33
Gasket
61538600 (1) Full qty
34
Belt
63561400 (1) Full qty
35
R.H. protection
63469190 (1) Full qty
35
Right protection
61546100 (1) Full qty
36
L.H. protection
63414400 (1) Full qty
36
Left protection
61546400 (1) Full qty
37
Plate
61569200 (2) Full qty
38
Gasket
63087100 (1) Full qty
39
R.H. upper seal
63084300 (1) Full qty
40
L.H. upper seal
63084400 (1) Full qty
41
R.H. vertical shield
63084900 (1) Full qty
42
L.H. vertical shield
63085000 (1) Full qty
43
Plug
62773100 (2) Full qty
43
CAP
14506787 (2) Full qty
44
WASHER
12643778 (10) Full qty
45
Washer
106850 (10) Full qty
46
SCREW
10902387 (10) Full qty
47
WASHER
12643770 (18) Full qty
47
WASHER
12643770 (18) Full qty
48
Screw
10902024 (18) Full qty
49
Gasket
63449700 (1) Full qty
50
ANTI-VIBRATIONS
62765800 (1) Full qty
51
Dash board box lamp
61647200 (1) Full qty
52
SCREW
15908678 (2) Full qty
