Clutch And Controls

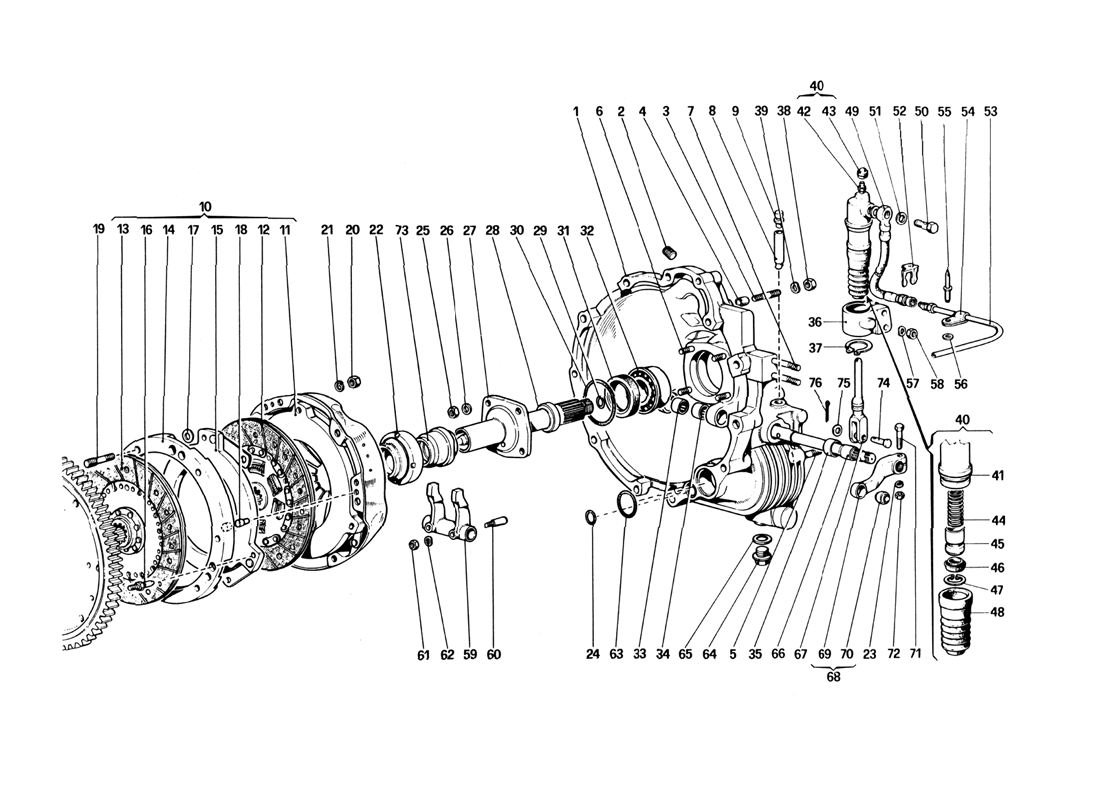

Schematic: Clutch And Controls
Schematic: Clutch And Controls
Loc
Part
Cond       Price
1
Campana frizione completa
111304 (1) Full qty
1
Campana frizione
109338 (1) Full qty
2
Plug
14326150 (1) Full qty
3
Stud
13544221 (2) Full qty
4
Dowel
102704 (2) Full qty
5
Stud
13544021 (8) Full qty
6
Stud
13543021 (4) Full qty
7
Stud
13544121 (2) Full qty
8
Extension for breather
109789 (1) Full qty
9
Diff Casing Pressure Valve
New       Price on Enquiry
13411990 (1) Full qty
AX22445n
10
Clutch Assy. 512BB
109460 (1) Full qty
11
Pressure plate
109461 (1) Full qty
12
Clutch disc with spring drive
109463 (1) Full qty
13
Clutch disc without spring dri…
109462 (1) Full qty
14
Spacer ring
108515 (1) Full qty
15
Intermediate ring
109464 (1) Full qty
16
Clutch Location Bolt 412/512
109465 (3) Full qty
17
Spacer
109466 (6) Full qty
18
Dowel
109880 (3) Full qty
19
Stud
New       Price on Enquiry
110019 (6) Full qty
CL11990n
20
Nut
16100821 (6) Full qty
21
Washer
10516670 (6) Full qty
22
Clutch T/O Roller
111307 (1) Full qty
23
Washer
106852 (1) Full qty
24
O Ring Seal
New       Price on Enquiry
104747 (1) Full qty
CL11542n
25
Nut
16102321 (4) Full qty
27
Flangia con manicotto
114241 (1) Full qty
28
Albero frizione
112977 (1) Full qty
29
Shoulder washer
109342 (1) Full qty
30
O-Ring
New       Price on Enquiry
109334 (1) Full qty
GE00282n
31
Oil Seal 45/62/10
New       Price on Enquiry
109340 (1) Full qty
GE00440n
32
Bearing 613744D
New       Price on Enquiry
103042 (1) Full qty
GB10260n
33
Inner bush
107926 (1) Full qty
34
Intermediate bush
107925 (1) Full qty
35
Outer bush
107924 (1) Full qty
36
Supporto Cilindretto
109496 (1) Full qty
37
Stop ring
11068475 (1) Full qty
39
Washer
12601371 (10) Full qty
40
Clutch Slave Cylinder
107867 (1) Full qty
41
Corpo f iiindiotto (non a rica…
111272 (1) Full qty
42
Cappuccio valvota di spurgo
111271 (1) Full qty
44
Spring
111273 (1) Full qty
45
Small cylinder.
111274 (1) Full qty
46
Seal ring
111275 (1) Full qty
47
Seeger ring
111277 (1) Full qty
48
Boot
111276 (1) Full qty
49
Clutch Hose
108865 (1) Full qty
50
Union
108868 (1) Full qty
51
Seal Washer/Gasket
New       Price on Enquiry
10298460 (2) Full qty
EX10416n
52
Pipe securing plate
110810 (1) Full qty
53
Tubo corriando frizione
108864 (1) Full qty
54
Fascetta
10115300 (2) Full qty
55
Rivet
100033 (2) Full qty
56
Washer
12642801 (2) Full qty
59
Assieme leva comando frizione
108426 (1) Full qty
59
Clutch control lever
108428 (1) Full qty
60
Pin
108429 (2) Full qty
61
Nut
12574121 (2) Full qty
62
Washer
108430 (2) Full qty
63
O Ring Seal OR3143
New       Price on Enquiry
104756 (1) Full qty
CL11546n
64
Oil drain plug
14326540 (1) Full qty
65
Copper Washer 22x27mm
New       £ 0.30
10263460 (1) Full qty
CC11530n
66
Alberino disinnesto frizione
108427 (1) Full qty
67
Push rod
109527 (1) Full qty
68
Leva disinnesto frizione compl…
109489 (1) Full qty
69
Leva disinnesto frizione
109488 (1) Full qty
70
Bail joint
100860 (1) Full qty
71
Screw
16043921 (1) Full qty
73
Boccola per cuscinetto reggisp…
109491 (1) Full qty
74
Clevis Pin
103218 (1) Full qty
75
Washer
12639701 (1) Full qty
76
Split pin
10734201 (1) Full qty
