Crankcase

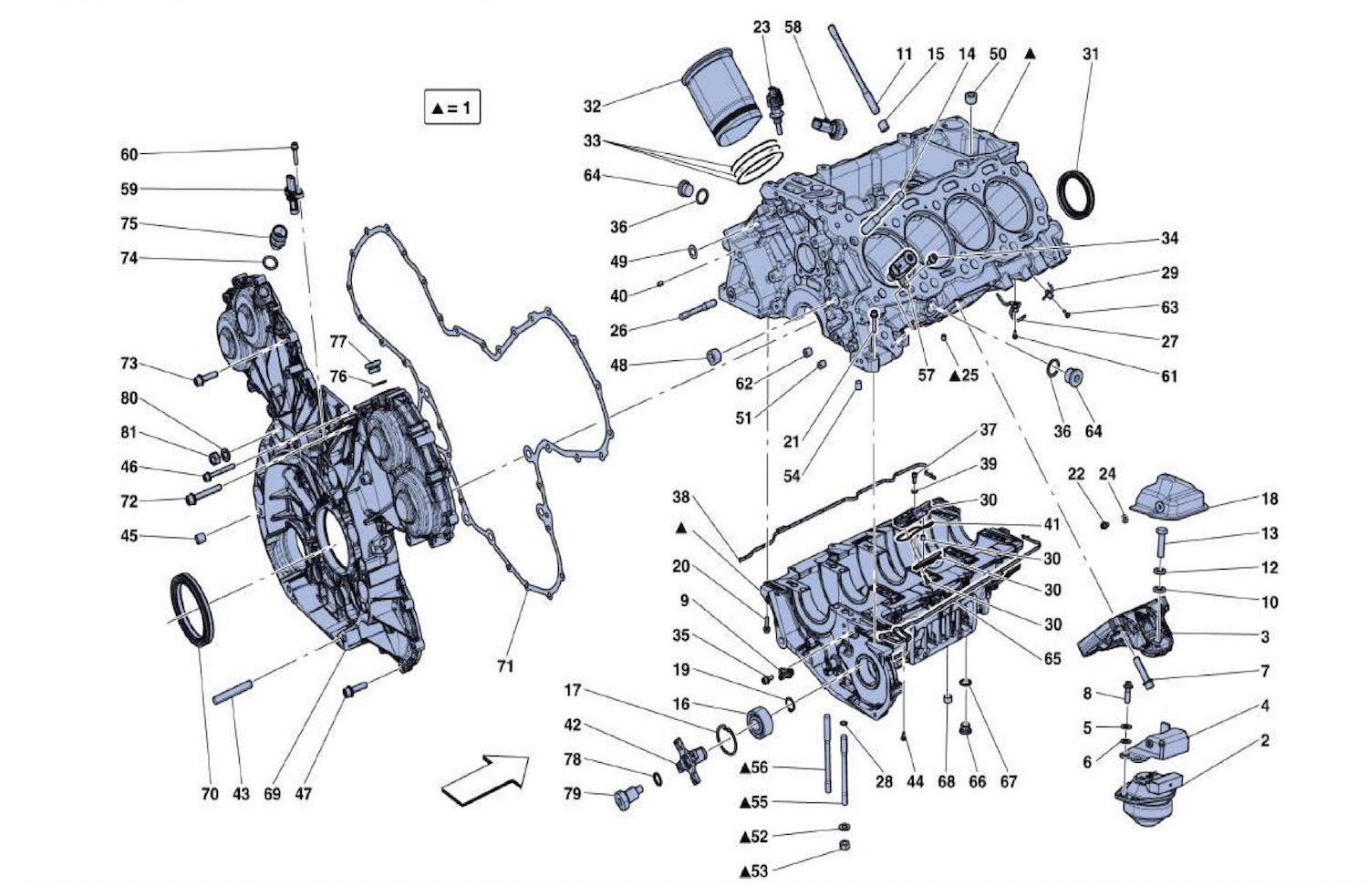

Schematic: Crankcase
Schematic: Crankcase
Loc
Part
Cond       Price
1
ASSEMBLATO BASAMENTO SOTTOBASA…
319256 (1) Full qty
2
TAMPONE DX.
312805 (1) Full qty
2
TAMPONE SX.
312806 (1) Full qty
3
ZAMPA MOTORE
324057 (2) Full qty
4
RH BUSH TRAVEL LIMITER BRACKET…
263593 (1) Full qty
4
LH BUSH TRAVEL LIMITER BRACKET…
263594 (1) Full qty
5
Washer
127497 (6) Full qty
6
WASHER
14496624 (6) Full qty
7
SCREW
290127 (8) Full qty
8
SCREW
243841 (6) Full qty
9
ASSIEME UGELLO RAFFREDDAMENTO …
317217 (1) Full qty
10
WASHER
10738021 (2) Full qty
11
STUD BOLT
270464 (18) Full qty
12
Washer
127498 (2) Full qty
13
SCREW
11599534 (2) Full qty
14
STUD BOLT
271564 (2) Full qty
15
ALIGNMENT DOWEL
185360 (4) Full qty
16
BEARING
247049 (1) Full qty
17
Seeger ring
11060276 (1) Full qty
18
PARATIA
304792 (2) Full qty
19
Seeqer ring
11066876 (1) Full qty
20
SCREW -M6 X 25-
231620 (12) Full qty
21
SCREW -M6 X 30-
231621 (1) Full qty
22
SCREW -M6 X 12-
233600 (4) Full qty
23
WATER/OIL TEMPERATURE SENSOR
180137 (1) Full qty
24
WASHER
12644404 (4) Full qty
25
ALIGNMENT DOWEL
312059 (10) Full qty
26
STUD BOLT
278120 (8) Full qty
27
PISTON COOLING NOZZLE ASSEMBLY…
298858 (4) Full qty
28
Gasket
New       £ 0.31
134705 (20) Full qty
FT10059n
29
PISTON COOLING NOZZLE ASSEMBLY…
298859 (8) Full qty
30
PORTA VALVOLE CPL.
312836 (0) Full qty
31
GASKET
271598 (1) Full qty
32
CYLINDER SLEEVE
271810 (8) Full qty
33
GASKET
294153 (24) Full qty
35
SCREW
282392 (1) Full qty
36
Copper Washer 22x27mm
New       £ 0.30
10263460 (2) Full qty
CC11530n
37
SCREW
13026924 (8) Full qty
38
GASKET -Applicable from engine…
339289 (1) Full qty
39
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (8) Full qty
GE35524n
40
ALIGNMENT DOWEL -Applicable fr…
311001 (2) Full qty
41
GUARNIZIONE
103994 (4) Full qty
42
GIUNTO DI TRASCINAMENTO
304697 (1) Full qty
43
STUD BOLT
13546734 (10) Full qty
44
SCREW -M6 X 20-
231618 (1) Full qty
45
Dowel
100052 (2) Full qty
46
SCREW -M6 X 45-
231624 (7) Full qty
48
COVER -Applicable after deplet…
282753 (1) Full qty
49
GASKET -Applicable up to engin…
281725 (2) Full qty
51
CAP
282755 (2) Full qty
52
WASHER
178348 (20) Full qty
53
Nut
133988 (20) Full qty
55
STUD BOLT
270465 (10) Full qty
56
STUD BOLT
270466 (10) Full qty
57
OIL PRESSURE SOLENOID VALVE
269972 (1) Full qty
58
OIL PRESSURE SENSOR -Applicabl…
318371 (1) Full qty
59
RPM SENSOR
287273 (1) Full qty
61
SCREW -Applicable after deplet…
315493 (4) Full qty
62
THREADED PLUG -M12 X 11-
291078 (2) Full qty
64
THREADED PLUG
307477 (2) Full qty
65
GUARNIZIONE
339287 (1) Full qty
66
TAPPO
306145 (3) Full qty
67
Pressure Sensor Washer
New       Price on Enquiry
10259960 (3) Full qty
SU11780n
68
THREADED PLUG
164400 (1) Full qty
69
COPERCHIO POSTERIORE DISTRIBUZ…
316665 (1) Full qty
70
GASKET
240214 (1) Full qty
71
GUARNIZIONE BASAMENTO
313188 (1) Full qty
72
SCREW -M8 X 50- -Applicable fr…
285494 (5) Full qty
73
SCREW -M8 X 30-
231629 (5) Full qty
74
Copper Washer [18x24x1]
New       Price on Enquiry
10263160 (1) Full qty
CC11484n
75
RACCORDO
309101 (1) Full qty
77
THREADED PLUG
280597 (1) Full qty
78
GUARNIZIONE
302618 (1) Full qty
79
TAPPO
307936 (1) Full qty
