Air Conditioning

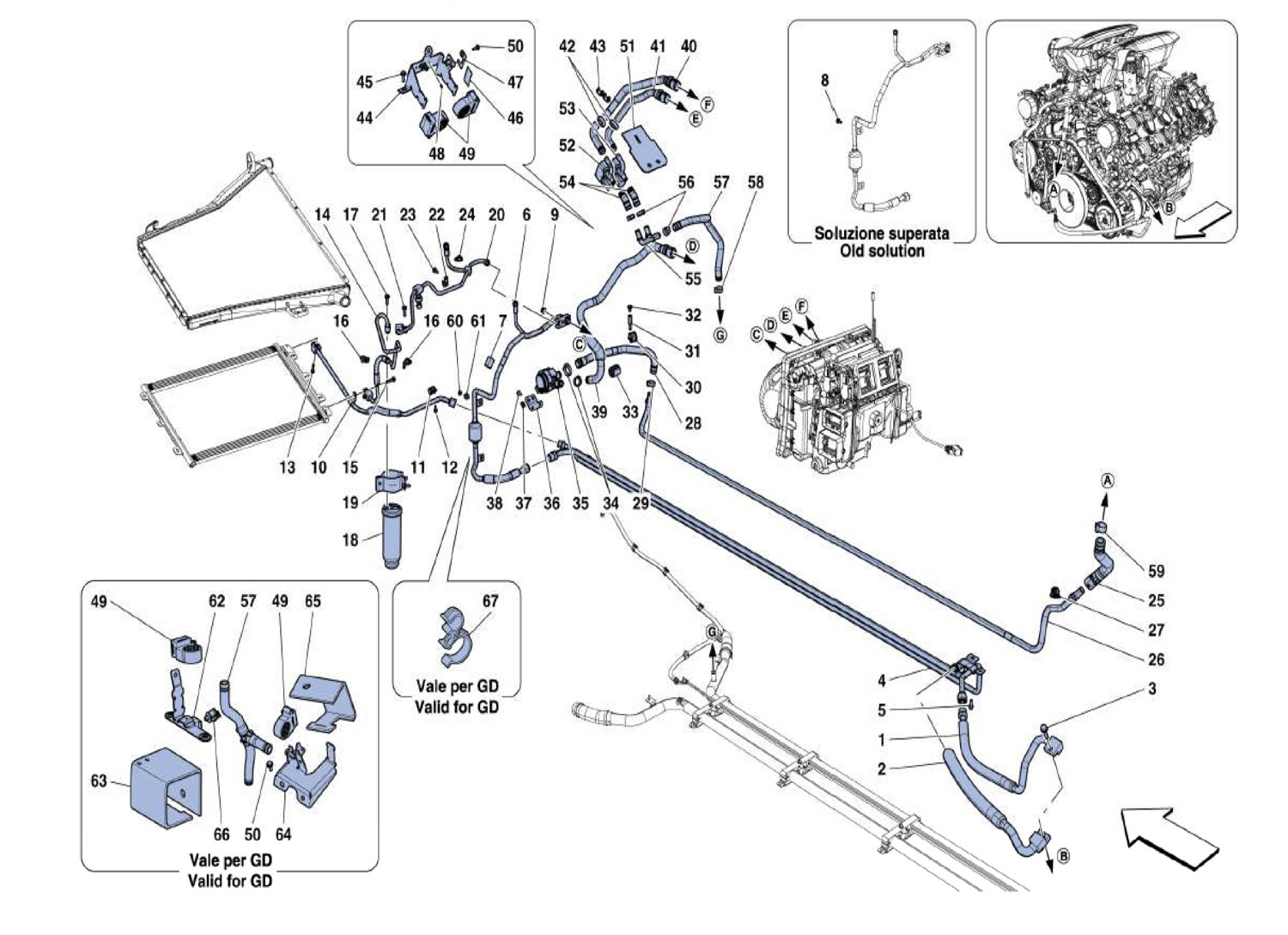

Schematic: Air Conditioning
Schematic: Air Conditioning
Loc
Part
Cond       Price
1
TUBO DA COMPRESSORE A SOTTOPIA…
86240500 (1) Full qty
2
TUBO RITORNO FREON A COMPRESSO…
86854500 (1) Full qty
3
SCREW
13839624 (1) Full qty
4
TUBO MANDATA RITORNO FREON SOT…
86049900 (1) Full qty
5
SCREW -M6 X 18-
231617 (1) Full qty
6
TUBO DA HVAC A SOTTOPIANALE -N…
87703000 (1) Full qty
6
TUBO DA HVAC A SOTTOPIANALE -V…
87703100 (1) Full qty
7
DISTANZIALE -No per GD-
308399 (1) Full qty
8
SCREW -M6 X 18-
11625824 (2) Full qty
9
NUT
14040711 (1) Full qty
10
TUBO MANDATA FREON A CONDENSAT…
86402700 (1) Full qty
11
Hose fastening bracket
10441490 (2) Full qty
12
SCREW -M6 X 14-
231616 (2) Full qty
13
SCREW
13837017 (1) Full qty
14
TUBO DA CONDENSATORE A FILTRO …
86402800 (1) Full qty
14
TUBO DA CONDENSATORE A FILTRO …
86927200 (1) Full qty
16
CLIP
262559 (2) Full qty
17
SCREW
11626124 (1) Full qty
18
A/C Receiver Drier
New       Price on Enquiry
67085100 (1) Full qty
AC00188n
19
DEHYDRATOR FILTER BRACKET
82155900 (1) Full qty
19
DEHYDRATOR FILTER BRACKET
82886600 (1) Full qty
20
TUBO DA FILTRO AD HVAC -No per…
86403000 (1) Full qty
20
TUBO DA FILTRO AD HVAC -Vale p…
86927400 (1) Full qty
22
MOLLETTA -No per GD-
262380 (1) Full qty
24
CLIP -Applicable from Ass. No.…
222826 (1) Full qty
24
CLIP
263230 (1) Full qty
25
TUBO FLESSIBILE
86228900 (1) Full qty
26
TUBO H2O SOTTOPIANALE
86253700 (1) Full qty
27
CLIP
263232 (1) Full qty
28
MANICOTTO
86280800 (1) Full qty
29
COLLAR CLAMP -Applicable after…
262109 (1) Full qty
30
Hose fastening bracket
10441890 (1) Full qty
31
STUD BOLT -Not for GD-
178772 (1) Full qty
32
SCREW WITH WASHER
11625624 (1) Full qty
33
DISTANZIALE
316986 (1) Full qty
34
JUBILEE CLAMP
10860370 (2) Full qty
35
IDLE WATER RECIRCULATION PUMP
291349 (1) Full qty
36
STAFFA SUPPORTO POMPA RICIRCOL…
86051000 (1) Full qty
37
CLIP
291645 (2) Full qty
39
MANICOTTO -No per GD-
86280900 (1) Full qty
39
MANICOTTO -Vale per GD-
86928400 (1) Full qty
40
RH TGK VALVE CONNECTOR PIPE
82761900 (1) Full qty
40
RH TGK VALVE CONNECTOR PIPE
82887200 (1) Full qty
41
LH TGK VALVE CONNECTOR PIPE
82302700 (1) Full qty
41
LH TGK VALVE CONNECTOR PIPE
82887300 (1) Full qty
42
DRIP BAFFLE RING
83444200 (2) Full qty
43
CLIP
82329900 (1) Full qty
44
BRACKET
82328500 (1) Full qty
46
PLUG
255515 (1) Full qty
47
CLIP
162606 (1) Full qty
48
RUBBER SPACER BUTTON
82331800 (2) Full qty
49
BUFFER FOR SUPPORT
174623 (2) Full qty
51
GUARD
83560800 (1) Full qty
52
RH CYLINDER BANK TGK VALVE
67635900 (1) Full qty
53
LH CYLINDER BANK TGK VALVE
67444900 (1) Full qty
54
MANICOTTO -No per GD-
291116 (2) Full qty
55
TUBO RIGIDO USCITA VALVOLE TGK…
290953 (1) Full qty
57
MANICOTTO -No per GD-
291115 (1) Full qty
57
CONNECTOR PIPE
82887400 (1) Full qty
60
NUT
14040614 (2) Full qty
61
CYLINDRICAL BUSHING
239829 (2) Full qty
62
RH TGK VALVE MOUNTING BRACKET …
83413300 (1) Full qty
63
WATER PIPE RUBBER GUARD
83689500 (1) Full qty
64
LH TGK VALVE MOUNTING BRACKET …
84058400 (1) Full qty
65
WATER PIPE RUBBER GUARD
83689600 (1) Full qty
66
MOLLETTA -Vale per GD-
241708 (1) Full qty
67
Spring
139966 (1) Full qty
