Ac System Water

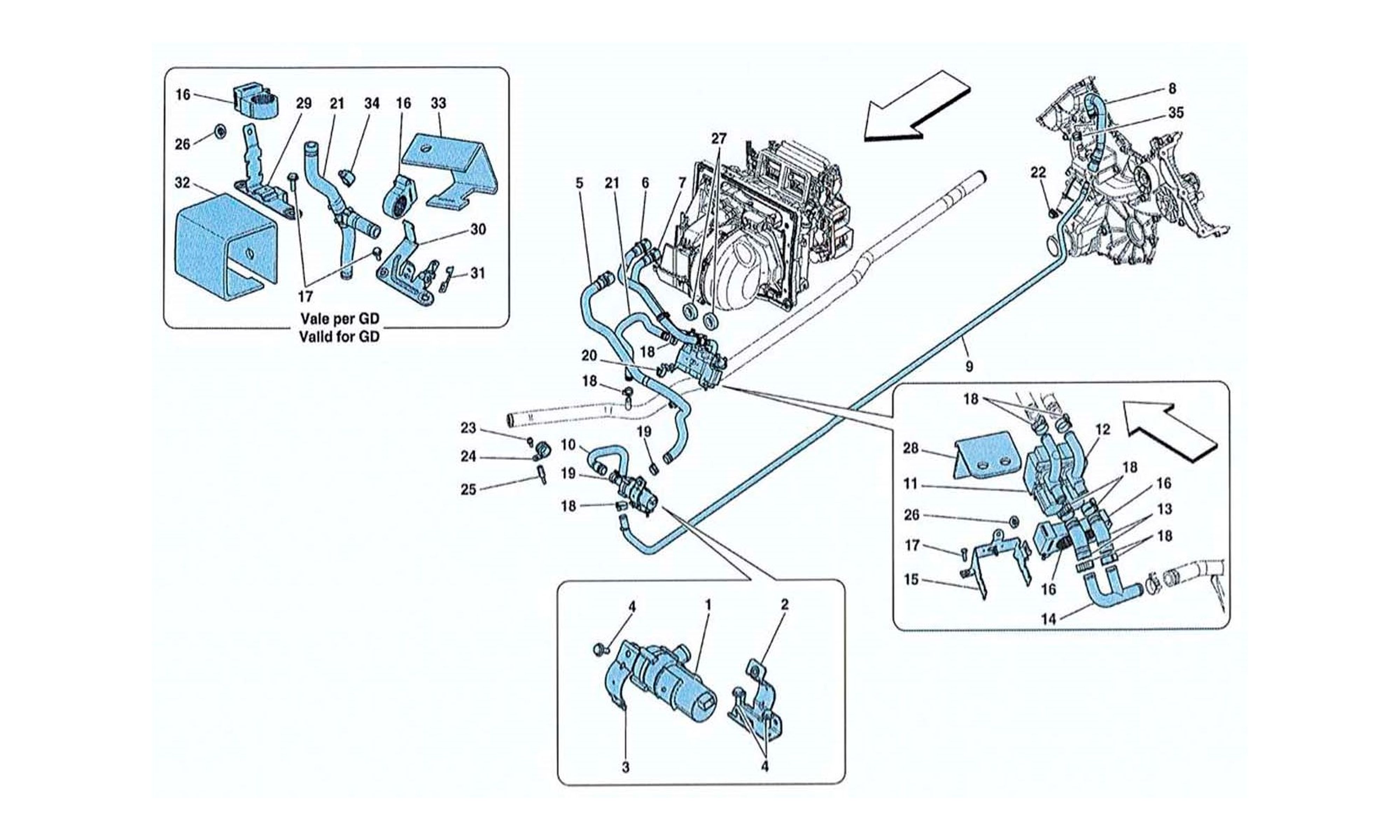

Schematic: Ac System Water
Loc
Part
Cond       Price
1
WATER RECIRCULATION PUMP
65460300 (1) Full qty
2
BRACKET
82328900 (1) Full qty
3
CURVED BRACKET
82329400 (1) Full qty
4
SCREW WITH WASHER
11625624 (3) Full qty
5
CONNECTOR PIPE
82302800 (1) Full qty
5
CONNECTOR PIPE
82887100 (1) Full qty
6
RH TGK VALVE CONNECTOR PIPE
82761900 (1) Full qty
6
RH TGK VALVE CONNECTOR PIPE
82887200 (1) Full qty
7
LH TGK VALVE CONNECTOR PIPE
82302700 (1) Full qty
7
LH TGK VALVE CONNECTOR PIPE
82887300 (1) Full qty
8
RUBBER PIPE
82890500 (1) Full qty
9
AC UNDERBODY PIPE
82890600 (1) Full qty
10
CONNECTOR PIPE
82887000 (1) Full qty
11
LH CYLINDER BANK TGK VALVE
67444900 (1) Full qty
12
RH CYLINDER BANK TGK VALVE
67635900 (1) Full qty
13
CONNECTOR PIPE
82302900 (2) Full qty
14
RIGID PIPE
247947 (1) Full qty
15
BRACKET
82328500 (1) Full qty
16
BUFFER FOR SUPPORT
174623 (2) Full qty
17
SCREW -M6 X 18-
11625824 (2) Full qty
18
COLLAR
13126770 (9) Full qty
18
COLLAR
10860270 (9) Full qty
19
COLLAR
13127770 (2) Full qty
19
JUBILEE CLAMP
10860370 (2) Full qty
20
CLIP
270085 (1) Full qty
21
CONNECTOR PIPE
82944600 (1) Full qty
21
CONNECTOR PIPE
82887400 (1) Full qty
22
CLIP
263232 (1) Full qty
23
SCREW -M6 X 14-
231616 (1) Full qty
24
Hose fastening bracket
10441890 (1) Full qty
25
STUD BOLT -Not for GD-
178772 (1) Full qty
26
CLIP
175871 (1) Full qty
27
DRIP BAFFLE RING
83444200 (2) Full qty
28
GUARD
83560800 (1) Full qty
29
RH TGK VALVE MOUNTING BRACKET …
83413300 (1) Full qty
30
LH TGK VALVE MOUNTING BRACKET …
84058400 (1) Full qty
31
CLIP
162606 (1) Full qty
32
WATER PIPE RUBBER GUARD
83689500 (1) Full qty
33
WATER PIPE RUBBER GUARD
83689600 (1) Full qty
34
CLIP
231214 (1) Full qty
