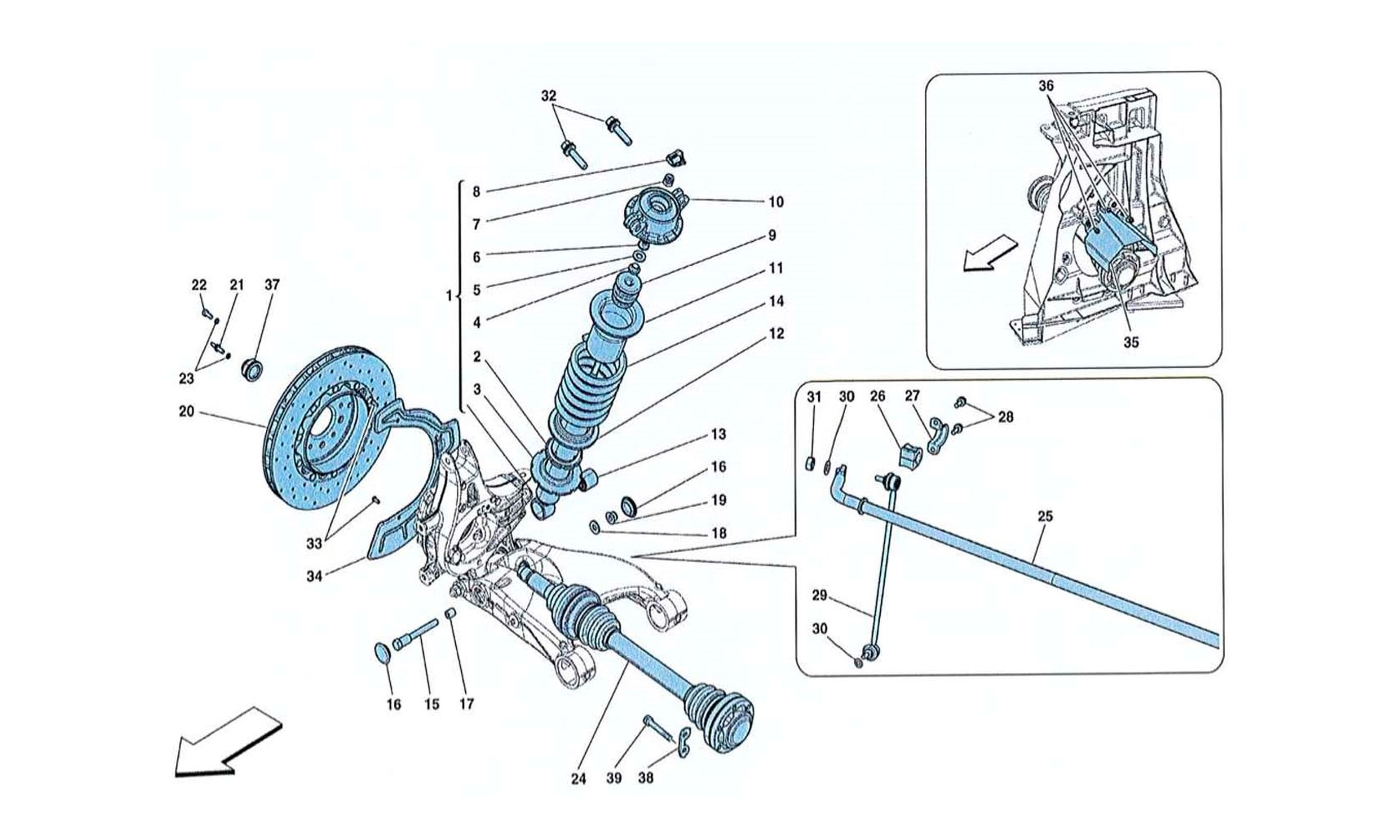

Rear Suspension Shock Absorber And Brake Disc

1

REAR SHOCK ABSORBER

255864 (2) Full qty

Qty Add to Quote

2

RING NUT

220351 (2) Full qty

Qty Add to Quote

3

SPRING RETAINER

251483 (2) Full qty

Qty Add to Quote

4

BUSHING

220383 (2) Full qty

Qty Add to Quote

5

WASHER

220377 (2) Full qty

Qty Add to Quote

6

NUT

220378 (2) Full qty

Qty Add to Quote

7

NUT

220382 (2) Full qty

Qty Add to Quote

8

UPPER CONNECTOR -Dual Mode Mag…

234671 (2) Full qty

Qty Add to Quote

9

ENDSTOP BUSH

267936 (2) Full qty

Qty Add to Quote

10

STOP CAP

250394 (2) Full qty

Qty Add to Quote

11

UPPER SPACER

212517 (2) Full qty

Qty Add to Quote

12

LOWER SPACER

188996 (2) Full qty

Qty Add to Quote

13

Shock Bushing

New       Price on Enquiry

157630 (2) Full qty
RS00314n

Qty Add to Quote

14

SHOCK ABSORBER SPRING

263457 (2) Full qty

Qty Add to Quote

15

SCREW

246962 (2) Full qty

Qty Add to Quote

16

CAP

14507987 (6) Full qty

Qty Add to Quote

17

BUSHING

237821 (2) Full qty

Qty Add to Quote

18

Washer

12646921 (2) Full qty

Qty Add to Quote

19

NUT

255271 (2) Full qty

Qty Add to Quote

20

REAR BRAKE DISC

274232 (2) Full qty

Qty Add to Quote

20

BRAKE DISC

282121 (2) Full qty

Qty Add to Quote

21

Brake Disc Fixing Screw

New       £ 4.68

104370 (2) Full qty
BS00951n

Qty Add to Quote

22

SCREW

228131 (2) Full qty

Qty Add to Quote

23

WASHER

228132 (4) Full qty

Qty Add to Quote

24

AXLE SHAFT

220340 (2) Full qty

Qty Add to Quote

25

STABILISER BAR

249199 (1) Full qty

Qty Add to Quote

26

PLUG

249187 (2) Full qty

Qty Add to Quote

27

RETAINER BRACKET

244778 (2) Full qty

Qty Add to Quote

28

SCREW

264117 (4) Full qty

Qty Add to Quote

29

RH SPHERICAL TIE-ROD

250453 (1) Full qty

Qty Add to Quote

29

LH SPHERICAL TIE-ROD

250452 (1) Full qty

Qty Add to Quote

30

Main Bearing Wave Washer

New       £ 0.12

12601474 (4) Full qty
CC11464n

Qty Add to Quote

30

M10 Wavy Washer

New       Price on Enquiry

12601474 (4) Full qty
CC11574n

Qty Add to Quote

31

NUT

12164714 (2) Full qty

Qty Add to Quote

32

SCREW

248790 (4) Full qty

Qty Add to Quote

33

SCREW

250657 (6) Full qty

Qty Add to Quote

34

RH DISC SHIELD

257424 (1) Full qty

Qty Add to Quote

34

LH DISC SHIELD

257423 (1) Full qty

Qty Add to Quote

35

SHIELD

250811 (2) Full qty

Qty Add to Quote

36

SCREW -M6 X 18-

11568027 (6) Full qty

Qty Add to Quote

37

NUT

203780 (2) Full qty

Qty Add to Quote

38

SHIM PLATE

220325 (6) Full qty

Qty Add to Quote

39

SCREW

237590 (12) Full qty

Qty Add to Quote
