Brake System

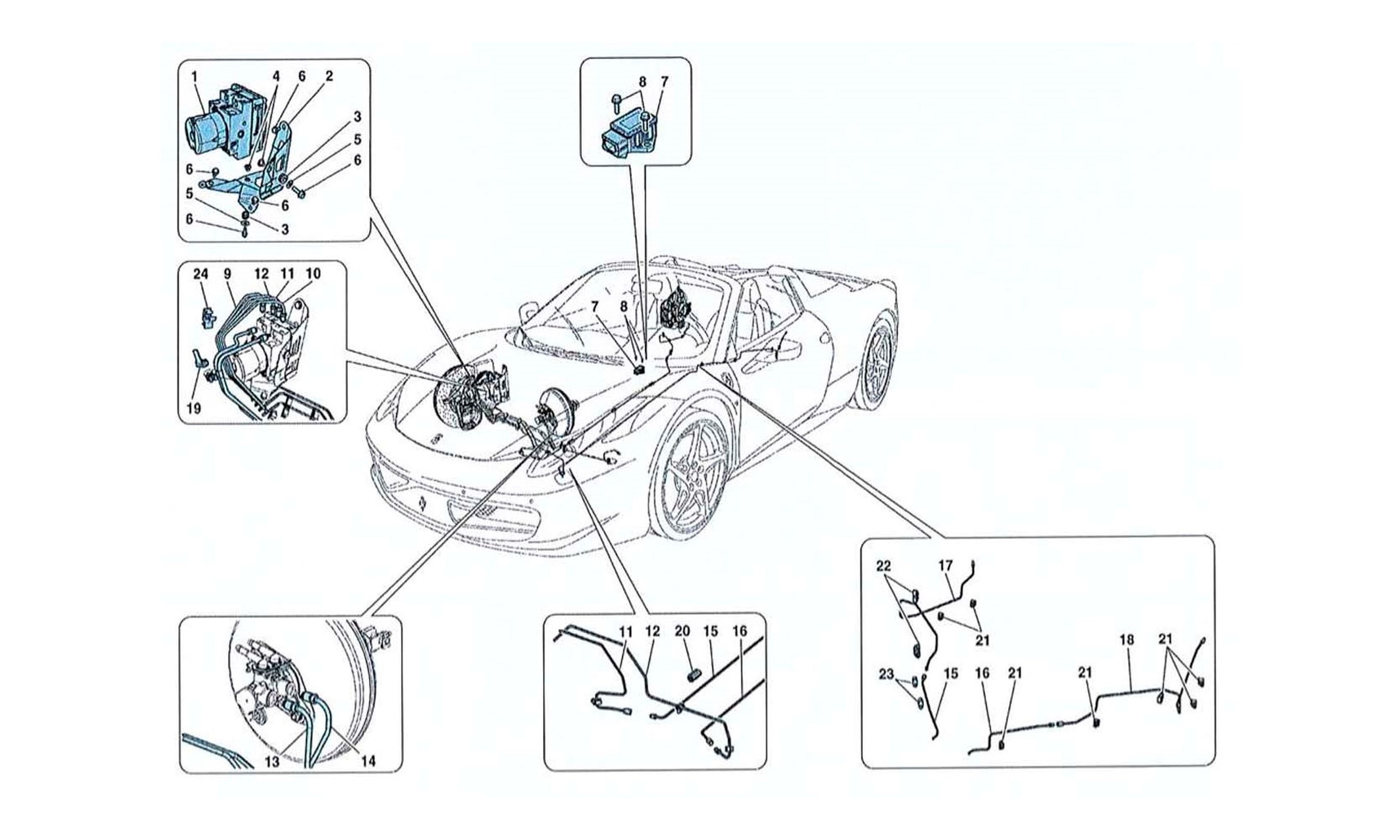

Schematic: Brake System
Loc
Part
Cond       Price
1
HYDRAULIC UNIT
273798 (1) Full qty
2
BRACKET
258602 (1) Full qty
2
BRACKET
262514 (1) Full qty
3
GROMMET
246864 (3) Full qty
4
SHIM
246917 (3) Full qty
5
WASHER
12625221 (3) Full qty
6
SCREW -M8 X 25-
16287224 (3) Full qty
6
SCREW -M8 X 16-
16287024 (3) Full qty
7
YAW SENSOR
206070 (1) Full qty
8
SCREW -No longer supplied- -Re…
16286124 (2) Full qty
9
FRONT RH BRAKE PIPE
263877 (1) Full qty
9
FRONT RH BRAKE PIPE
262438 (1) Full qty
10
FRONT LH BRAKE PIPE
263876 (1) Full qty
10
FRONT LH BRAKE PIPE
267850 (1) Full qty
11
REAR RH BRAKE PIPE
263446 (1) Full qty
11
REAR RH BRAKE PIPE
262436 (1) Full qty
12
REAR LH BRAKE PIPE
269059 (1) Full qty
12
REAR LH BRAKE PIPE
262435 (1) Full qty
13
PIPE FROM FRONT BRAKE PUMP TO …
238120 (1) Full qty
13
PIPE FROM FRONT BRAKE PUMP TO …
268086 (1) Full qty
14
PIPE FROM REAR BRAKE PUMP TO H…
262401 (1) Full qty
14
PIPE FROM REAR BRAKE PUMP TO H…
268085 (1) Full qty
15
UNDERFLOOR REAR RH BRAKE PIPE
265345 (1) Full qty
16
UNDERFLOOR REAR LH BRAKE PIPE
262440 (1) Full qty
17
REAR SUBFRAME RH BRAKE PIPE
263892 (1) Full qty
18
REAR SUBFRAME LH BRAKE PIPE
263893 (1) Full qty
19
CLIP
254195 (1) Full qty
20
RUBBER RETAINER
262737 (7) Full qty
21
CLIP
249650 (7) Full qty
22
CLIP
249649 (2) Full qty
23
CLIP
169476 (2) Full qty
24
CLIP
268893 (2) Full qty
