Roof

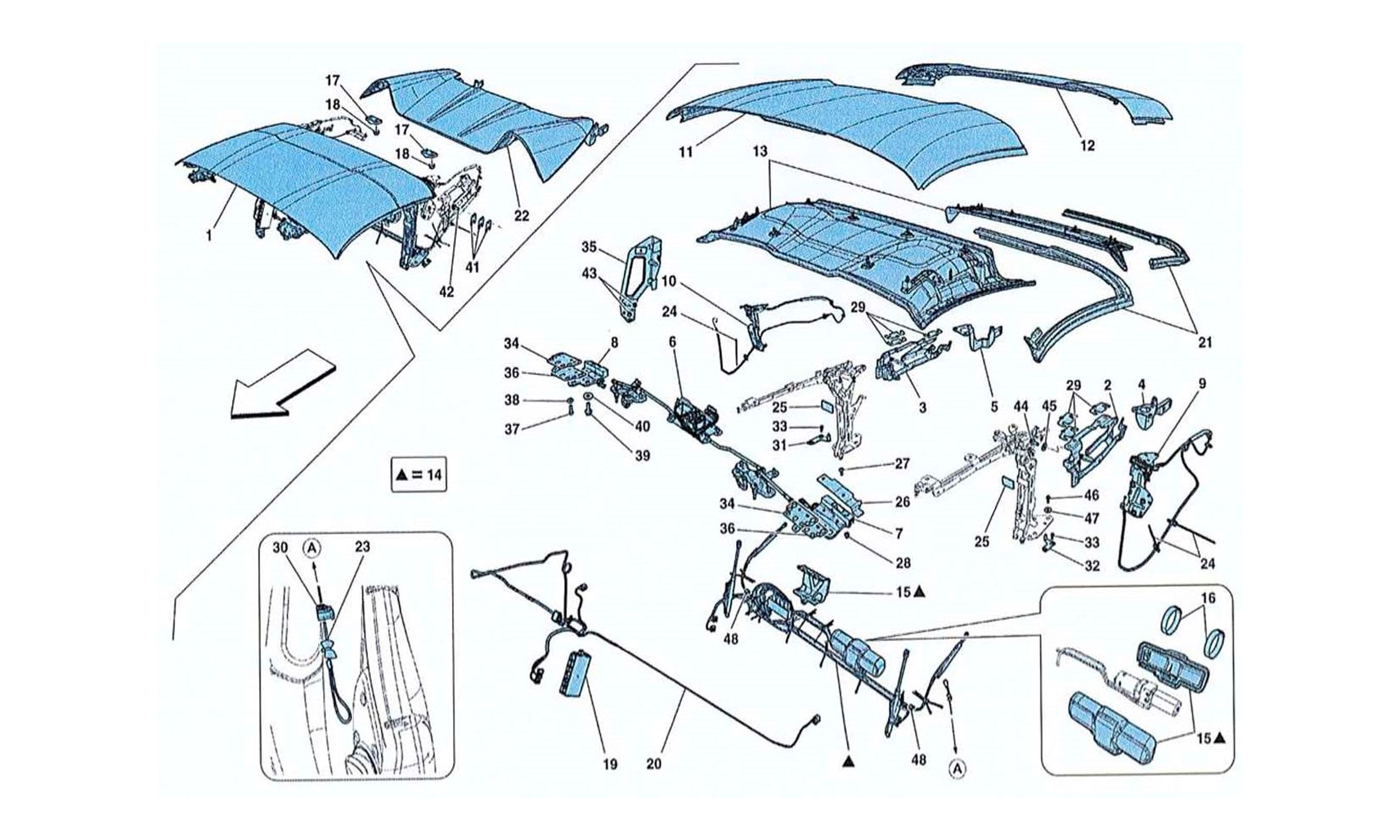

Schematic: Roof
Loc
Part
Cond       Price
1
ROOF ASSEMBLY
839771.. (1) Full qty
1
ROOF ASSEMBLY
839795.. (1) Full qty
1
ROOF ASSEMBLY
839796.. (1) Full qty
2
COMPL. LH COVER LIFTER MECHANI…
83977600 (1) Full qty
3
COMPL. RH COVER LIFTER MECHANI…
83977700 (1) Full qty
4
COMPL. LH HINGE
83979300 (1) Full qty
5
COMPL. RH HINGE
83979200 (1) Full qty
6
COMPL. LOCK SYSTEM
83977800 (1) Full qty
7
LH STRIKER
83977900 (1) Full qty
8
RH STRIKER
83978000 (1) Full qty
9
LH FLAP MECHANISM
83978300 (1) Full qty
10
RH FLAP MECHANISM
83978400 (1) Full qty
11
FRONT PANEL
83977000 (1) Full qty
12
REAR PANEL
83977300 (1) Full qty
13
FRONT AND REAR HEADLINER KIT
84726100 (1) Full qty
13
FRONT AND REAR HEADLINER KIT
847262.. (1) Full qty
13
FRONT AND REAR HEADLINER KIT
847263.. (1) Full qty
14
COMPLETE HYDRAULIC SYSTEM KIT
84603300 (1) Full qty
15
HYDRAULIC SYSTEM SOUNDPROOFING…
84697900 (1) Full qty
16
HYDRAULIC SYSTEM FASTENER KIT
84603200 (1) Full qty
17
STOP BUFFER
83978100 (2) Full qty
18
NUT
13046112 (4) Full qty
19
ROOF ECU
83979100 (1) Full qty
20
ROOF WIRING HARNESS
83979000 (1) Full qty
21
FRONT AND REAR SEAL KIT
84726500 (1) Full qty
22
TONNEAU COVER
83979411 (1) Full qty
23
EMERGENCY CORD
84711600 (2) Full qty
24
RING CLAMP -Version with front…
145854 (4) Full qty
25
ADHESIVE FOAM RUBBER -50 X 25 …
84706800 (2) Full qty
26
LH BRACKET
84643400 (1) Full qty
26
RH BRACKET
84643500 (1) Full qty
27
SCREW -M5 X 12-
65366700 (4) Full qty
28
NUT
168698 (4) Full qty
29
SHIM
84807000 (2) Full qty
29
SHIM
84807100 (4) Full qty
29
SHIM
84807200 (16) Full qty
29
SHIM
84842000 (7) Full qty
30
CLIP
215411 (2) Full qty
31
RH REAR CENTRING PLATE
84256000 (1) Full qty
32
LH REAR CENTRING PLATE
84256100 (1) Full qty
33
SCREW
11568124 (4) Full qty
34
WINDSCREEN STRIKER PLATE
84718400 (2) Full qty
35
ECU MOUNTING BRACKET
83598300 (1) Full qty
36
SHIM KIT FOR ADJUSTING ROOF RE…
84503800 (2) Full qty
37
SCREW
14305334 (4) Full qty
38
WASHER
12646624 (4) Full qty
39
SCREW -M8 X 25-
16287224 (6) Full qty
40
WASHER
219344 (6) Full qty
41
SHIM
84508500 (2) Full qty
41
SHIM
84508600 (4) Full qty
41
TUB LIFTING MECHANISM FASTENER…
84508700 (4) Full qty
42
SCREW
82271400 (6) Full qty
43
NUT
14040514 (5) Full qty
46
SCREW -M6 X 20-
16286127 (4) Full qty
47
WASHER
12640678 (4) Full qty
48
CLIP
244223 (2) Full qty
49
Clamp
145855 (2) Full qty
50
PROTECTIVE COIL
84975900 (2) Full qty
