Doors - Framework And Coverings

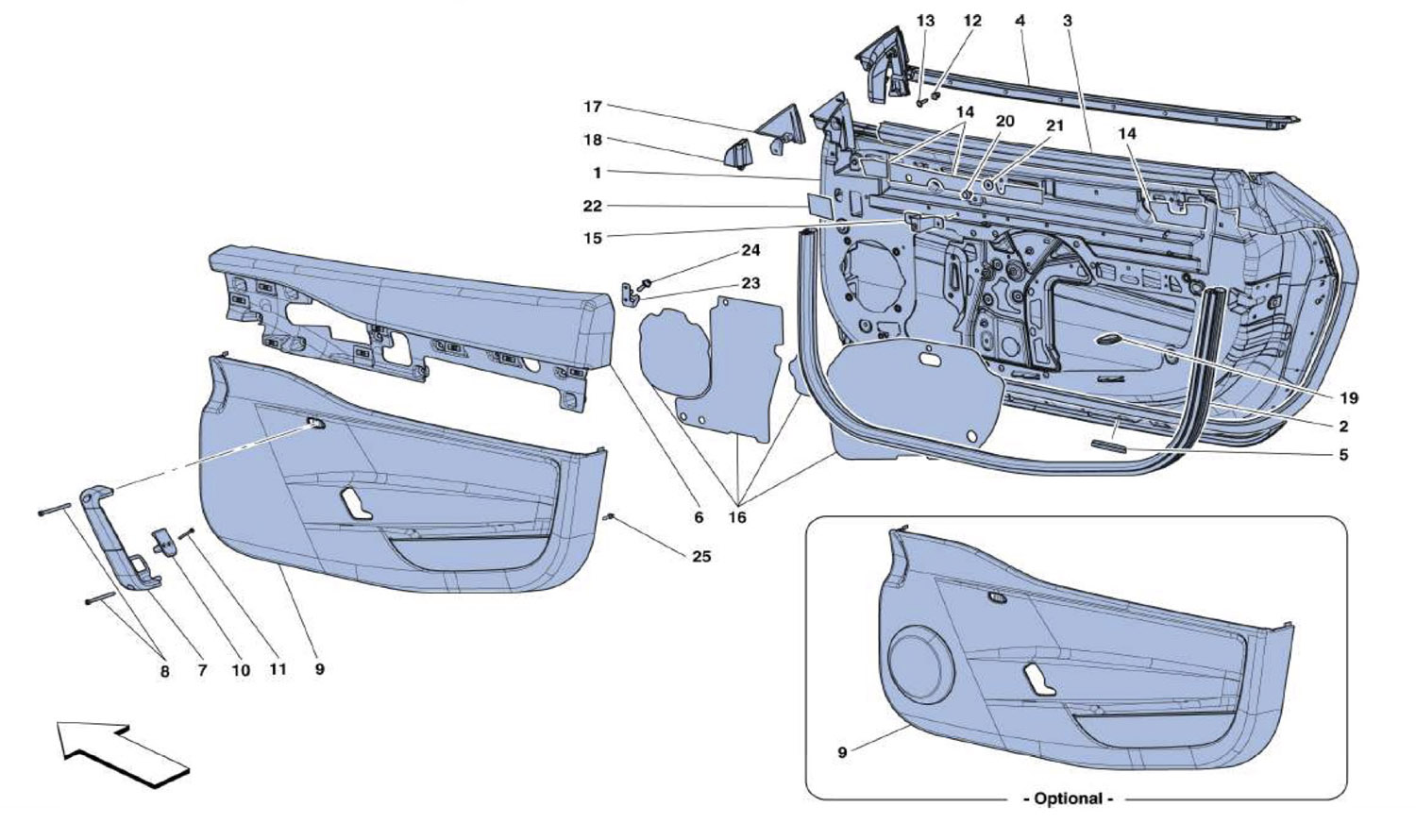

Schematic: Doors - Framework And Coverings
Loc
Part
Cond       Price
1
COMPL. RH DOOR STRUCTURE -Not …
84682711 (1) Full qty
1
COMPL. RH DOOR STRUCTURE -Appl…
85745611 (1) Full qty
1
COMPL. LH DOOR STRUCTURE -Not …
84682511 (1) Full qty
1
COMPL. LH DOOR STRUCTURE -Appl…
85745511 (1) Full qty
2
LOWER SEAL
83987400 (2) Full qty
3
RH DOOR INNER PERIMETER SEAL
84685200 (1) Full qty
3
LH DOOR INNER PERIMETER SEAL
84685100 (1) Full qty
4
RH DOOR OUTER PERIMETER SEAL
81361200 (1) Full qty
4
LH DOOR OUTER PERIMETER SEAL
81361400 (1) Full qty
5
CAP FOR UNDERTANK SHIELD
63965800 (2) Full qty
6
COMPL. RH DOOR TRIM MOULDING -…
855843 (1) Full qty
6
COMPL. LH DOOR TRIM MOULDING -…
857600 (1) Full qty
6
COMPL. LH DOOR TRIM MOULDING -…
855877 (1) Full qty
6
COMPL. RH DOOR TRIM MOULDING -…
857595 (1) Full qty
7
COMPL. LH DOOR PULL -Leather- …
857598 (1) Full qty
7
COMPL. LH DOOR PULL -Alcantara…
854242 (1) Full qty
7
COMPL. RH DOOR PULL -Leather- …
857593 (1) Full qty
7
COMPL. RH DOOR PULL -Alcantara…
854078 (1) Full qty
8
SCREW -M6 X 78-
85757300 (4) Full qty
9
COMPL. LH DOOR PANEL -Version …
87227400 (1) Full qty
9
COMPL. LH DOOR PANEL -Version …
87227800 (1) Full qty
9
COMPL. LH DOOR PANEL -Applicab…
87227900 (1) Full qty
9
COMPL. LH DOOR PANEL -Applicab…
87227500 (1) Full qty
9
COMPL. RH DOOR PANEL -Version …
87227600 (1) Full qty
9
COMPL. RH DOOR PANEL -Version …
87227200 (1) Full qty
9
COMPL. RH DOOR PANEL -Applicab…
87227700 (1) Full qty
9
COMPL. RH DOOR PANEL -Applicab…
87227300 (1) Full qty
10
LH DOOR HANDLE
85589200 (1) Full qty
10
RH DOOR HANDLE
85587600 (1) Full qty
11
SCREW
86694200 (4) Full qty
11
SCREW
67660400 (4) Full qty
12
BLOCK
14115885 (14) Full qty
13
SCREW
15689801 (14) Full qty
14
LH UPPER WATERPROOF MEMBRANE -…
86288900 (1) Full qty
14
RH UPPER WATERPROOF MEMBRANE -…
86288800 (1) Full qty
15
LH HANDLE FASTENER BRACKET
85705100 (1) Full qty
15
RH HANDLE FASTENER BRACKET
85704900 (1) Full qty
16
RH LOWER WATERPROOF MEMBRANE
86000000 (1) Full qty
16
LH LOWER WATERPROOF MEMBRANE
86002700 (1) Full qty
17
RH DOOR CORNER TRIANGLE
81486300 (1) Full qty
17
LH DOOR CORNER TRIANGLE
81486500 (1) Full qty
18
RH DOOR INNER CORNER TRIANGLE …
84312100 (1) Full qty
18
LH DOOR INNER CORNER TRIANGLE …
84312200 (1) Full qty
19
CAP FOR SLOT
85154200 (2) Full qty
20
CLIP
82672700 (6) Full qty
21
WASHER
65841100 (6) Full qty
22
ADHESIVE PLUG
83735800 (2) Full qty
23
RH BRACKET -Applicable after d…
86857900 (1) Full qty
23
LH BRACKET -Applicable after d…
86858000 (1) Full qty
24
SCREW
256323 (2) Full qty
25
PRESS FASTENER PIN
82535800 (16) Full qty
