Fuel Tanks Fixing And Protection

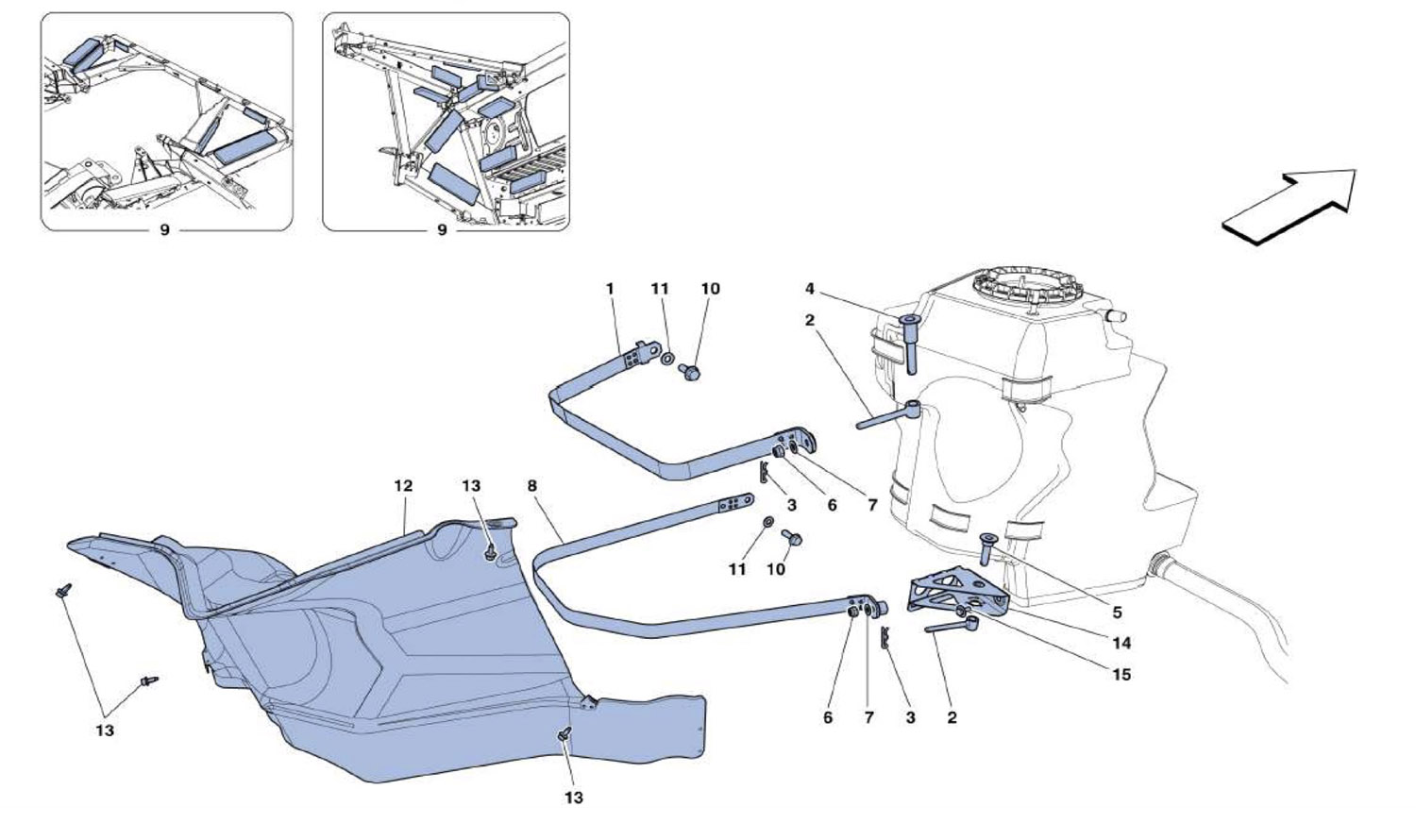

Schematic: Fuel Tanks Fixing And Protection
Loc
Part
Cond       Price
1
UPPER RH TANK RETAINER STRAP
263506 (1) Full qty
1
UPPER LH TANK RETAINER STRAP
263507 (1) Full qty
2
TANK STRAP TIE-ROD
298222 (4) Full qty
3
Split pin
10796440 (4) Full qty
4
UPPER PIN
271055 (2) Full qty
5
LOWER PIN
256055 (2) Full qty
6
Nut
14058511 (4) Full qty
7
WASHER
14496524 (4) Full qty
8
LOWER RH TANK RETAINER STRAP
263508 (1) Full qty
8
LOWER LH TANK RETAINER STRAP
263509 (1) Full qty
9
FUEL TANK ANTI-VIBRATION PAD K…
296446 (1) Full qty
10
SCREW
68984500 (4) Full qty
11
WASHER
11190574 (4) Full qty
12
RH TANK HEAT INSULATION
283261 (1) Full qty
12
LH TANK HEAT INSULATION
283260 (1) Full qty
13
SCREW
11585024 (17) Full qty
14
RH MOUNTING BRACKET FOR REMOVA…
263510 (1) Full qty
14
LH MOUNTING BRACKET FOR REMOVA…
263513 (1) Full qty
15
SCREW -No longer supplied- -Re…
81591700 (4) Full qty
