Frame - Rear Elements Structures And Plates

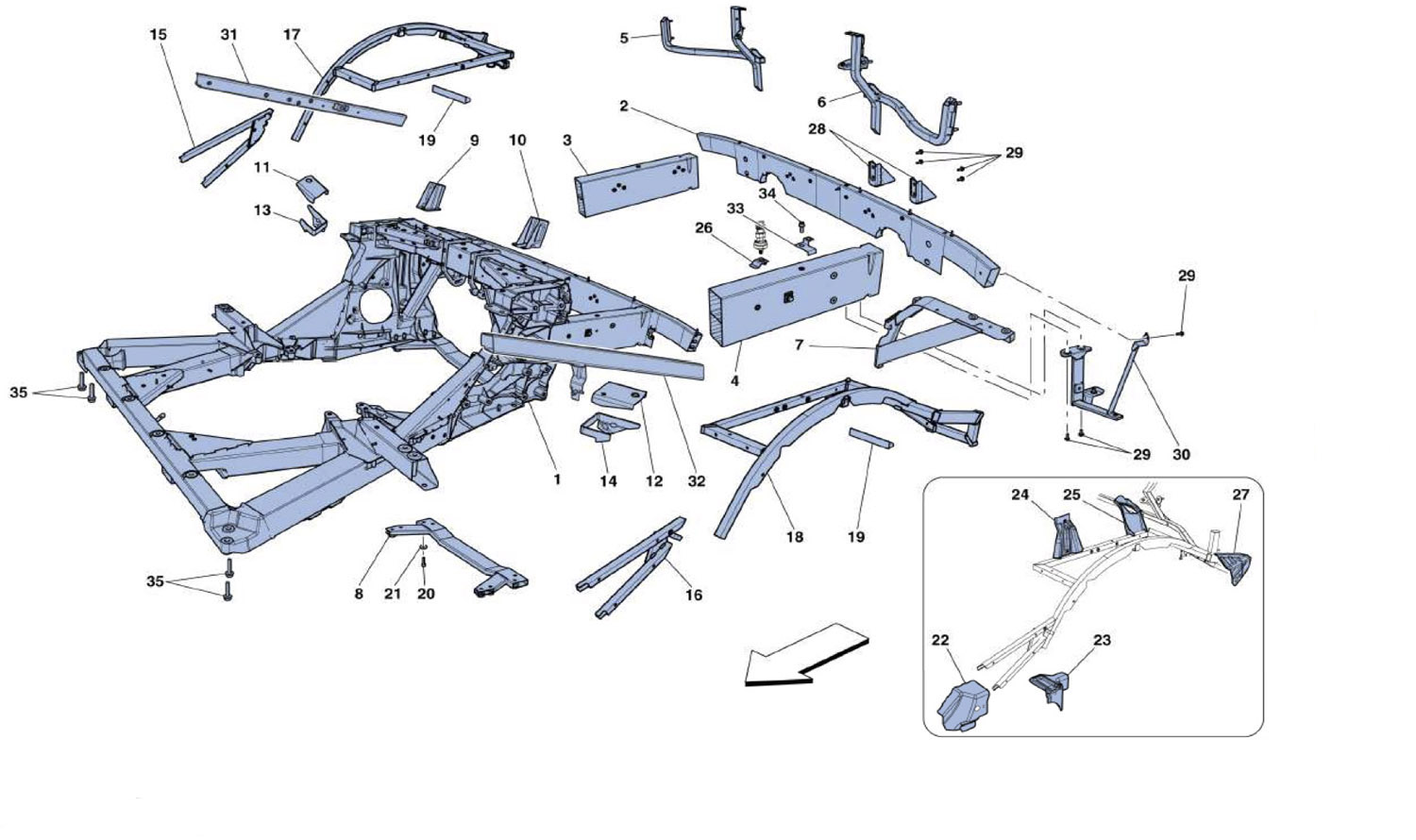

Schematic: Frame - Rear Elements Structures And Plates
Loc
Part
Cond       Price
1
REAR SUBFRAME -Request ASM aut…
985292226 (1) Full qty
2
REAR BUMPER FASTENING CROSS ME…
297876 (1) Full qty
3
REAR RH STRUT -Request ASM aut…
295233 (1) Full qty
4
REAR LH STRUT -Request ASM aut…
295231 (1) Full qty
5
REAR RH RADIATOR TRELLIS -Requ…
84630500 (1) Full qty
6
REAR LH RADIATOR TRELLIS -Requ…
84630400 (1) Full qty
7
LH FLANK MOUNTING BRACKET -Req…
85536100 (1) Full qty
7
RH FLANK MOUNTING BRACKET -Req…
85536000 (1) Full qty
8
LOWER GEARBOX MOUNTING CROSS M…
270599 (1) Full qty
9
RH BRACKET FOR ENGINE COMPARTM…
82892400 (1) Full qty
10
LH BRACKET FOR ENGINE COMPARTM…
82892500 (1) Full qty
11
UPPER RH TRELLIS MOUNTING BRAC…
82572600 (1) Full qty
12
UPPER LH TRELLIS MOUNTING BRAC…
82572700 (1) Full qty
13
LOWER RH TRELLIS MOUNTING BRAC…
260696 (1) Full qty
14
LOWER LH TRELLIS MOUNTING BRAC…
260695 (1) Full qty
15
FRONT RH FLANK TRELLIS
84042200 (1) Full qty
16
FRONT LH FLANK TRELLIS
84042600 (1) Full qty
17
REAR RH FLANK TRELLIS
84637900 (1) Full qty
18
REAR LH FLANK TRELLIS
84637800 (1) Full qty
19
ANGULAR BRACE FOR FLANK MOUNTI…
81952000 (2) Full qty
20
New       Price on Enquiry
101632 (10) Full qty
GB10212n
21
WASHER
12626024 (10) Full qty
22
FRONT LOWER BRACKET FOR LH FEN…
81288800 (1) Full qty
22
FRONT LOWER BRACKET FOR RH FEN…
81287800 (1) Full qty
23
REAR LOWER BRACKET FOR LH FEND…
81518200 (1) Full qty
23
REAR LOWER BRACKET FOR RH FEND…
81518100 (1) Full qty
24
CENTRE LH BRACKET
84025300 (1) Full qty
24
CENTRE RH BRACKET
84025200 (1) Full qty
25
REAR LH BRACKET
84026700 (1) Full qty
25
REAR RH BRACKET
84026600 (1) Full qty
26
REAR ACCELEROMETER BRACKET
279382 (1) Full qty
27
LH REAR FLANK BRACKET
81582700 (1) Full qty
27
RH REAR FLANK BRACKET
81582600 (1) Full qty
28
CENTRAL DIFFUSER FASTENER BRAC…
85701900 (2) Full qty
29
SCREW -M6 X 18-
11625824 (10) Full qty
30
LH LATERAL BUMPER MOUNTING FRA…
85642200 (1) Full qty
30
RH LATERAL BUMPER MOUNTING FRA…
85641900 (1) Full qty
31
RH BOX ELEMENT REINFORCEMENT T…
86017400 (1) Full qty
32
LH BOX ELEMENT REINFORCEMENT T…
86017200 (1) Full qty
33
PIPE MOUNTING BRACKET
302293 (1) Full qty
34
SCREW -M6 X 18-
231617 (1) Full qty
35
SCREW
304454 (4) Full qty
