Central Side Elements And Plates

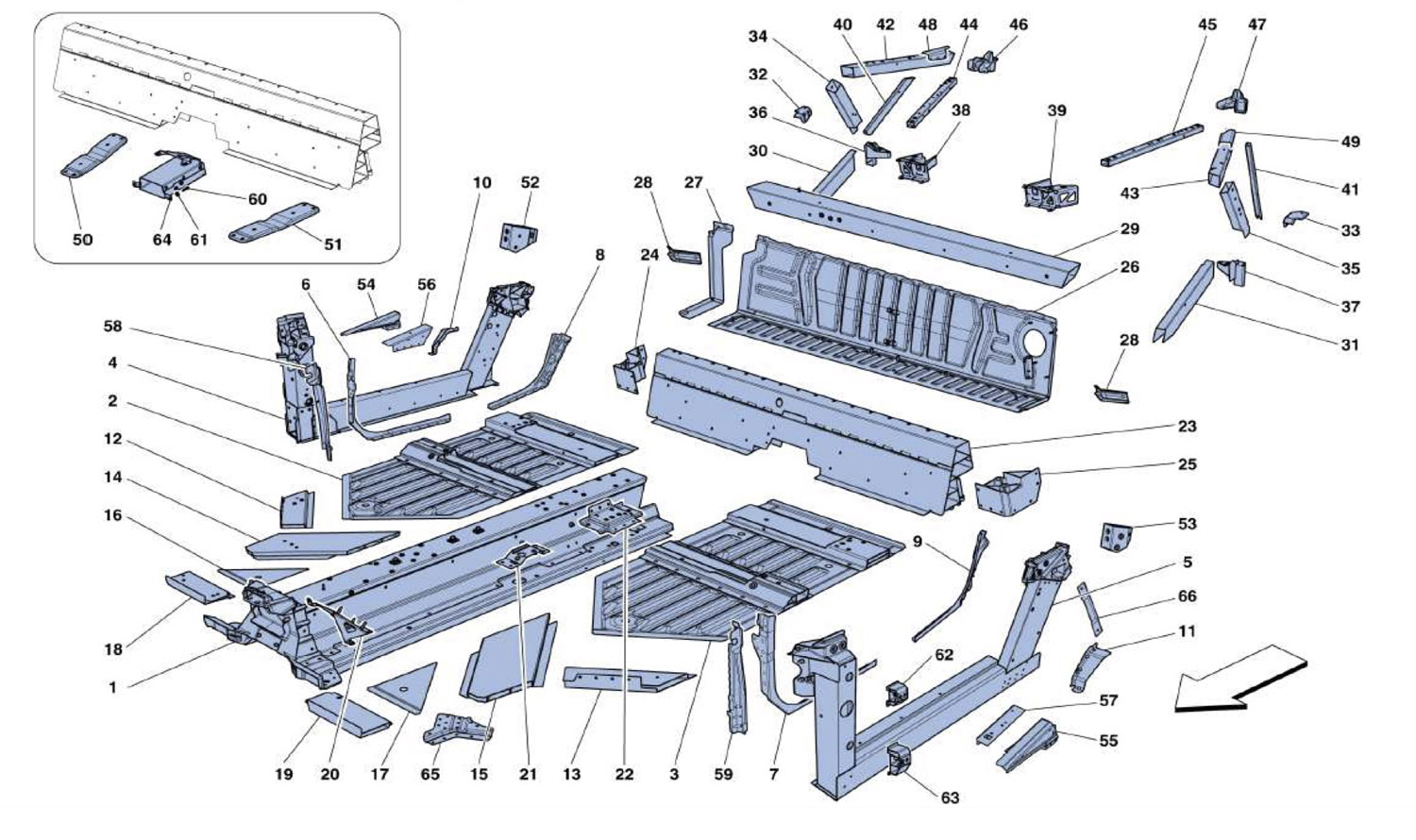

Schematic: Central Side Elements And Plates
Schematic: Central Side Elements And Plates
Loc
Part
Cond       Price
1
COMPL. TUNNEL -Request ASM aut…
291961 (1) Full qty
1
COMPL. TUNNEL -Request ASM aut…
301357 (1) Full qty
2
COMPL. RH HALF FLOOR PANEL -Re…
292109 (1) Full qty
3
COMPL. LH HALF FLOOR PANEL -Re…
292108 (1) Full qty
4
RH SILL -Request ASM authorisa…
291960 (1) Full qty
4
RH SILL -Request ASM authorisa…
301355 (1) Full qty
5
LH SILL -Request ASM authorisa…
291959 (1) Full qty
5
LH SILL -Request ASM authorisa…
301354 (1) Full qty
6
FRONT RH ENDPIECE
83814500 (1) Full qty
7
FRONT LH ENDPIECE
83814600 (1) Full qty
8
REAR RH ENDPIECE
83815000 (1) Full qty
9
REAR LH ENDPIECE
83814700 (1) Full qty
10
FRONT FASTENER BRACKET FOR RH …
249925 (1) Full qty
11
FRONT FASTENER BRACKET FOR LH …
249924 (1) Full qty
12
RH BRACE
280494 (1) Full qty
13
LH BRACE
280493 (1) Full qty
14
RH BRACE BETWEEN TORQUE BOX AN…
245513 (1) Full qty
14
RH BRACE BETWEEN TORQUE BOX AN…
263692 (1) Full qty
15
LH BRACE BETWEEN TORQUE BOX AN…
245514 (1) Full qty
15
LH BRACE BETWEEN TORQUE BOX AN…
263693 (1) Full qty
16
FRONT RH FLOOR ENDPIECE
248977 (1) Full qty
17
FRONT LH FLOOR ENDPIECE
248976 (1) Full qty
18
FRONT RH CROSS MEMBER
282541 (1) Full qty
19
FRONT LH CROSS MEMBER -Not for…
282539 (1) Full qty
19
FRONT LH CROSS MEMBER -Applica…
301349 (1) Full qty
20
STAFFA FISSAGGIO PEDALE ACCELE…
283681 (1) Full qty
20
STAFFA FISSAGGIO PEDALE ACCELE…
266326 (1) Full qty
21
LH SEAT GUIDE RAIL FASTENER BR…
262866 (1) Full qty
21
RH SEAT GUIDE RAIL FASTENER BR…
262867 (1) Full qty
22
STAFFA POSTERIORE FISSAGGIO SE…
290920 (1) Full qty
22
STAFFA POSTERIORE FISSAGGIO SE…
290921 (1) Full qty
23
SILL LINK CROSS MEMBER -Reques…
292261 (1) Full qty
24
LOWER RH EXTRUSION
264308 (1) Full qty
25
LOWER LH EXTRUSION
264309 (1) Full qty
26
REAR FIREWALL
292331 (1) Full qty
27
RH LATERAL MOUNTING FOR FIREWA…
257398 (1) Full qty
28
BRACKET
82677800 (2) Full qty
29
FUEL TANK CROSS MEMBER -Reques…
303377 (1) Full qty
30
RH LATERAL IMPACT BOX MEMBER
256697 (1) Full qty
31
LH LATERAL IMPACT BOX MEMBER
302313 (1) Full qty
32
REAR FASTENER BRACKET FOR RH R…
254479 (1) Full qty
33
REAR FASTENER BRACKET FOR LH R…
254478 (1) Full qty
34
RH REAR PILLAR BRACE
255316 (1) Full qty
35
LH REAR PILLAR BRACE
302304 (1) Full qty
36
RH SUBFRAME LINK EXTRUSION
264431 (1) Full qty
37
LH SUBFRAME LINK EXTRUSION
264310 (1) Full qty
38
UPPER RH BELT JOINT CASTING
271054 (1) Full qty
39
UPPER LH BELT JOINT CASTING
271053 (1) Full qty
40
RH SUSPENSION CASTING BRACE
255318 (1) Full qty
41
LH SUSPENSION CASTING BRACE
302288 (1) Full qty
42
RH UPPER EXTERNAL DIAGONAL BRA…
305513 (1) Full qty
42
RH UPPER EXTERNAL DIAGONAL BRA…
253311 (1) Full qty
43
LH UPPER EXTERNAL DIAGONAL BRA…
253310 (1) Full qty
44
RH INTERNAL BOX MEMBER
271958 (1) Full qty
45
LH INTERNAL BOX MEMBER
271956 (1) Full qty
46
CASTING FOR REAR RH SHOCK TOWE…
264311 (1) Full qty
47
CASTING FOR REAR LH SHOCK TOWE…
264312 (1) Full qty
48
RH SUBFRAME MOUNTING BRACKET
257869 (1) Full qty
49
LH SUBFRAME MOUNTING BRACKET
257866 (1) Full qty
50
PIASTRA PROTEZIONE TUBO CARBUR…
311385 (1) Full qty
51
PIASTRA PROTEZIONE TUBO CARBUR…
311384 (1) Full qty
52
RH LOCK STRIKER REINFORCEMENT …
84692400 (1) Full qty
53
LH LOCK STRIKER REINFORCEMENT …
84692300 (1) Full qty
54
EXTERNAL RH TRUSS
282897 (1) Full qty
55
EXTERNAL LH TRUSS
282896 (1) Full qty
56
INTERNAL RH TRUSS
296510 (1) Full qty
57
INTERNAL LH TRUSS
271422 (1) Full qty
58
A PILLAR FLANGE
84632800 (1) Full qty
59
A PILLAR FLANGE
84632700 (1) Full qty
60
SCREW -M6 X 14-
13027024 (4) Full qty
61
WASHER
10523401 (4) Full qty
62
RINFORZO CERNIERA SUPERIORE SX…
272632 (1) Full qty
62
RINFORZO CERNIERA SUPERIORE DX…
272633 (1) Full qty
63
RINFORZO CERNIERA INFERIORE SX…
271951 (1) Full qty
63
RINFORZO CERNIERA INFERIORE DX…
271953 (1) Full qty
64
COMPL. ENGINE BUFFER ASSEMBLY
282829 (1) Full qty
65
LH UNDERFLOOR IMPACT REINFORCE…
302444 (1) Full qty
65
RH UNDERFLOOR IMPACT REINFORCE…
302445 (1) Full qty
66
INTRUSION PROTECTION BEAM -App…
83898500 (2) Full qty
