Rear Suspension - Shock Absorber And Brake Disc

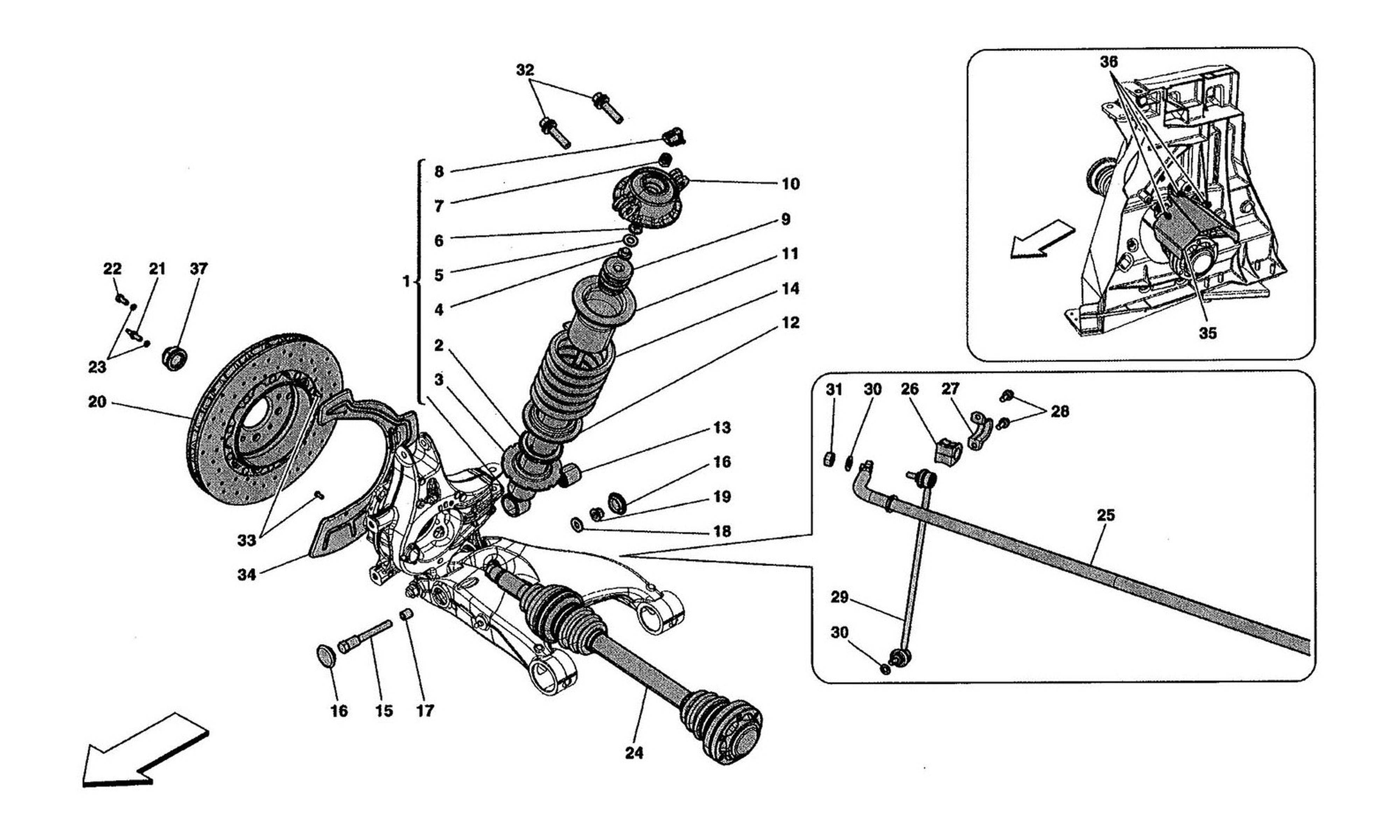

Schematic: Rear Suspension - Shock Absorber And Brake Disc
Schematic: Rear Suspension - Shock Absorber And Brake Disc
Loc
Part
Cond       Price
1
REAR SHOCK ABSORBER
255864 (2) Full qty
2
RING NUT
220351 (2) Full qty
3
SPRING RETAINER
251483 (2) Full qty
4
BUSHING
220383 (2) Full qty
5
WASHER
220377 (2) Full qty
6
NUT
220378 (2) Full qty
7
NUT
220382 (2) Full qty
8
UPPER CONNECTOR -Dual Mode Mag…
234671 (2) Full qty
9
SHOCK ABSORBER PAD
246490 (2) Full qty
9
ENDSTOP BUSH
267936 (2) Full qty
10
STOP CAP
250394 (2) Full qty
11
UPPER SPACER
212517 (2) Full qty
12
LOWER SPACER
188996 (2) Full qty
13
Shock Bushing
New       Price on Enquiry
157630 (2) Full qty
RS00314n
14
SHOCK ABSORBER SPRING
263457 (2) Full qty
15
SCREW
246962 (2) Full qty
16
CAP
14507987 (6) Full qty
17
BUSHING
237821 (2) Full qty
18
Washer
12646921 (2) Full qty
19
NUT
255271 (2) Full qty
20
BRAKE DISC
257102 (2) Full qty
20
BRAKE DISC
271714 (2) Full qty
20
REAR BRAKE DISC
274232 (2) Full qty
20
BRAKE DISC
282121 (2) Full qty
21
Brake Disc Fixing Screw
New       £ 4.68
104370 (2) Full qty
BS00951n
22
SCREW
228131 (2) Full qty
23
WASHER
228132 (4) Full qty
24
AXLE SHAFT
220340 (2) Full qty
25
STABILISER BAR
249199 (1) Full qty
26
PLUG
249187 (2) Full qty
27
RETAINER BRACKET
244778 (2) Full qty
28
SCREW -M10 X 1.25 X 30-
245843 (4) Full qty
28
SCREW
264117 (4) Full qty
29
RH SPHERICAL TIE-ROD
250453 (1) Full qty
29
LH SPHERICAL TIE-ROD
250452 (1) Full qty
30
Main Bearing Wave Washer
New       £ 0.12
12601474 (4) Full qty
CC11464n
30
M10 Wavy Washer
New       Price on Enquiry
12601474 (4) Full qty
CC11574n
31
NUT
12164714 (2) Full qty
32
SCREW
248790 (4) Full qty
33
SCREW -M6 X 14-
190870 (6) Full qty
33
SCREW
250657 (6) Full qty
34
R.H. REAR BRAKE DISC SHIELD
240969 (1) Full qty
34
RH DISC SHIELD
257424 (1) Full qty
34
LH DISC SHIELD
240968 (1) Full qty
34
LH DISC SHIELD
257423 (1) Full qty
35
SHIELD
250811 (2) Full qty
36
SCREW -M6 X 18-
11568027 (6) Full qty
37
NUT
203780 (2) Full qty
38
SHIM PLATE
220325 (6) Full qty
39
SCREW
237590 (12) Full qty
