Evaporative Emissions Control System

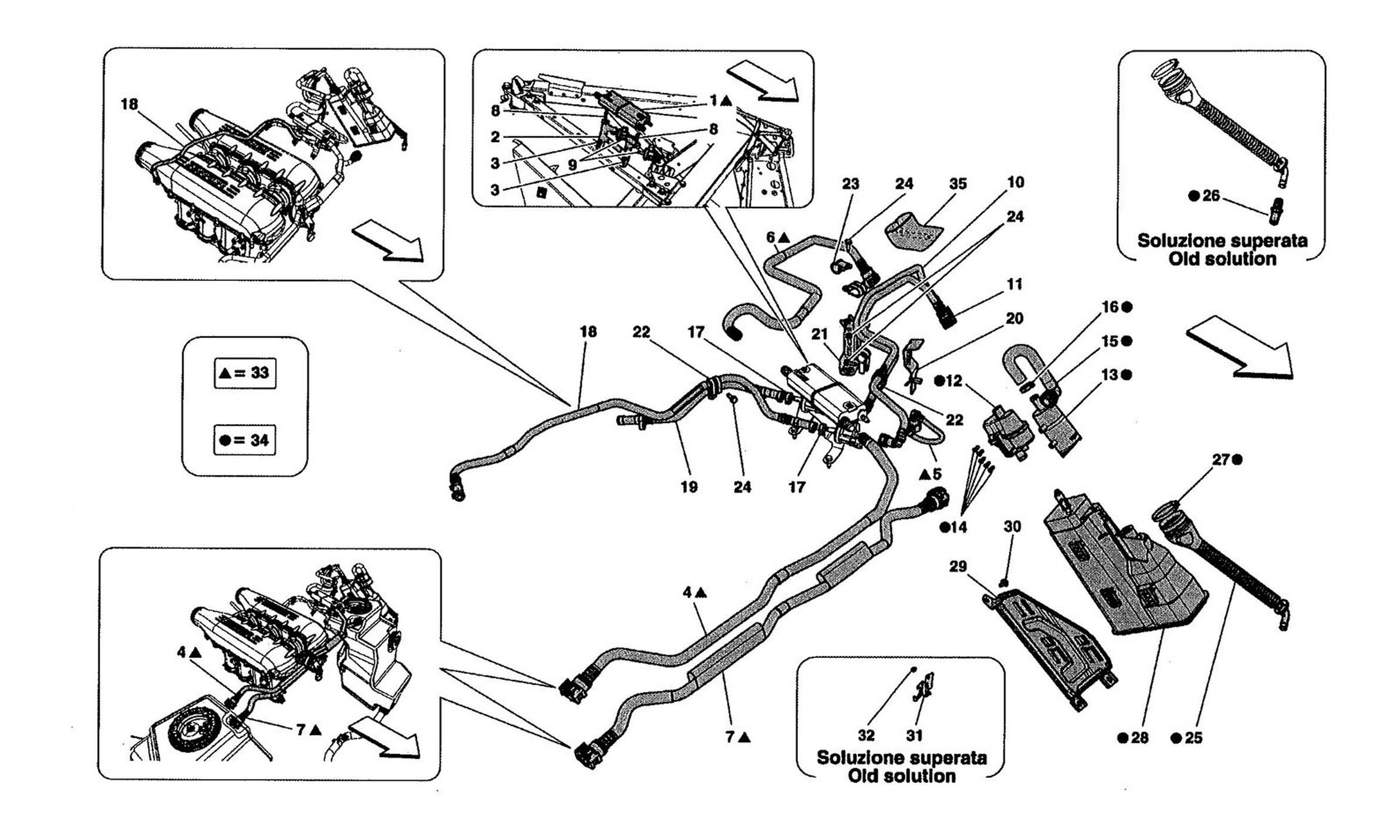

Schematic: Evaporative Emissions Control System
Schematic: Evaporative Emissions Control System
Loc
Part
Cond       Price
1
COMPL. VAPOUR SEPARATOR
257354 (1) Full qty
1
COMPL. VAPOUR SEPARATOR
262960 (1) Full qty
1
COMPL. VAPOUR SEPARATOR
272378 (1) Full qty
2
BRACKET
259178 (1) Full qty
2
BRACKET
284275 (1) Full qty
3
SCREW
11585024 (2) Full qty
4
PIPE FROM RH TANK TO SEPARATOR…
262961 (1) Full qty
5
PIPE FROM LH TANK TO SEPARATOR…
257346 (1) Full qty
6
FILTER SEPARATOR PIPE
257789 (1) Full qty
6
FILTER SEPARATOR PIPE
272379 (1) Full qty
7
CONNECTOR PIPE
262629 (1) Full qty
8
SCREW
14358924 (2) Full qty
9
FLUSH VALVE
254425 (2) Full qty
10
PIPE BETWEEN FILTER-LH VALVE
257791 (1) Full qty
10
PIPE BETWEEN FILTER-LH VALVE
277354 (1) Full qty
11
PIPE BETWEEN FILTER-RH VALVE
257792 (1) Full qty
11
PIPE BETWEEN FILTER-RH VALVE
277355 (1) Full qty
12
DIAGNOSTIC PUMP
251288 (1) Full qty
13
PUMP FILTER
250402 (1) Full qty
13
PUMP FILTER
278131 (1) Full qty
14
SCREW
15958701 (5) Full qty
14
SCREW
15903801 (5) Full qty
15
PIPE FROM PUMP TO AIR FILTER
250403 (1) Full qty
16
COLLAR
13432970 (1) Full qty
17
COLLAR -D. 15.7-
13432070 (4) Full qty
18
RH FLUSH VALVE PIPE
257799 (1) Full qty
19
LH FLUSH VALVE PIPE
257796 (1) Full qty
20
BRACKET
259435 (1) Full qty
21
BRACKET
260949 (1) Full qty
21
BRACKET
277384 (1) Full qty
22
BRACKET WITH SHEATH
253512 (3) Full qty
22
BRACKET WITH SHEATH
277527 (1) Full qty
23
Clamp ? 16 mm
10450490 (2) Full qty
23
Bracket
10441790 (2) Full qty
25
AIR FILTER BELLOW
260363 (1) Full qty
25
AIR FILTER BELLOW
282519 (1) Full qty
26
CONNECTOR
260581 (1) Full qty
27
COLLAR
10721370 (1) Full qty
27
COLLAR
13434170 (1) Full qty
28
FUEL VAPOUR FILTER
260314 (1) Full qty
29
VAPOUR FILTER BRACKET
82414200 (1) Full qty
30
SCREW WITH WASHER
11625624 (3) Full qty
31
VAPOUR PIPE BRACKET
82910600 (1) Full qty
32
NUT
14059121 (1) Full qty
33
VAPOUR SEPARATOR COMPLETE WITH…
262959 (1) Full qty
33
VAPOUR SEPARATOR COMPLETE WITH…
272653 (1) Full qty
33
VAPOUR SEPARATOR COMPLETE WITH…
275710 (1) Full qty
34
COMPL. VAPOUR FILTER WITH DIAG…
260616 (1) Full qty
34
COMPL. VAPOUR FILTER
273201 (1) Full qty
34
COMPL. VAPOUR FILTER
278130 (1) Full qty
35
HEAT SHIELD
271630 (1) Full qty
