Fuel Tanks - Fasteners And Guards

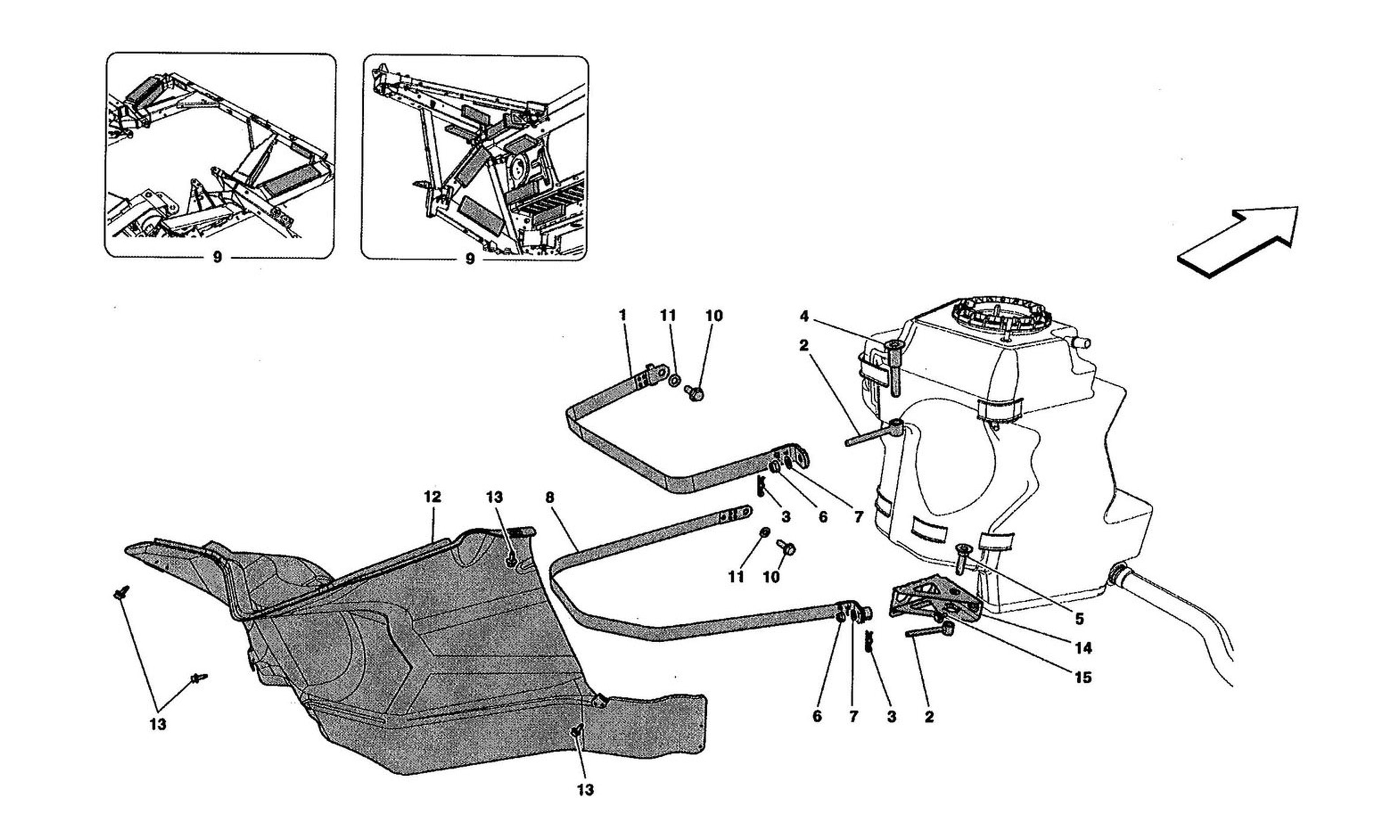

Schematic: Fuel Tanks - Fasteners And Guards
Loc
Part
Cond       Price
1
UPPER TANK RETAINER STRAP
256028 (2) Full qty
1
UPPER RH TANK RETAINER STRAP
263506 (1) Full qty
1
UPPER LH TANK RETAINER STRAP
263507 (1) Full qty
2
TANK STRAP TIE-ROD
250516 (4) Full qty
2
TANK STRAP TIE-ROD
263505 (4) Full qty
2
TANK STRAP TIE-ROD
275074 (4) Full qty
3
Split pin
10796440 (4) Full qty
3
SPLIT PIN
264555 (4) Full qty
4
UPPER PIN
256037 (2) Full qty
4
UPPER PIN
271055 (2) Full qty
5
LOWER PIN
256055 (2) Full qty
6
NUT
104030 (4) Full qty
6
Nut
14058511 (4) Full qty
7
WASHER
14496524 (4) Full qty
8
LOWER RH TANK RETAINER STRAP
256038 (1) Full qty
8
LOWER RH TANK RETAINER STRAP
263508 (1) Full qty
8
LOWER LH TANK RETAINER STRAP
256040 (1) Full qty
8
LOWER LH TANK RETAINER STRAP
263509 (1) Full qty
9
FUEL TANK ANTI-VIBRATION PAD K…
262732 (1) Full qty
9
FUEL TANK ANTI-VIBRATION PAD K…
278256 (1) Full qty
10
SCREW
68984500 (4) Full qty
11
WASHER
11190574 (4) Full qty
12
RH TANK HEAT INSULATION
262785 (1) Full qty
12
RH TANK HEAT INSULATION
268570 (1) Full qty
12
RH TANK HEAT INSULATION
278375 (1) Full qty
12
RH TANK HEAT INSULATION
283261 (1) Full qty
12
LH TANK HEAT INSULATION
262784 (1) Full qty
12
LH TANK HEAT INSULATION
268568 (1) Full qty
12
LH TANK HEAT INSULATION
278374 (1) Full qty
12
LH TANK HEAT INSULATION
283260 (1) Full qty
13
SCREW
11585024 (17) Full qty
14
RH MOUNTING BRACKET FOR REMOVA…
256047 (1) Full qty
14
RH MOUNTING BRACKET FOR REMOVA…
263510 (1) Full qty
14
LH MOUNTING BRACKET FOR REMOVA…
256050 (1) Full qty
14
LH MOUNTING BRACKET FOR REMOVA…
263513 (1) Full qty
15
SCREW -No longer supplied- -Re…
81591700 (4) Full qty
