Flat Undertray And Wheelhouses

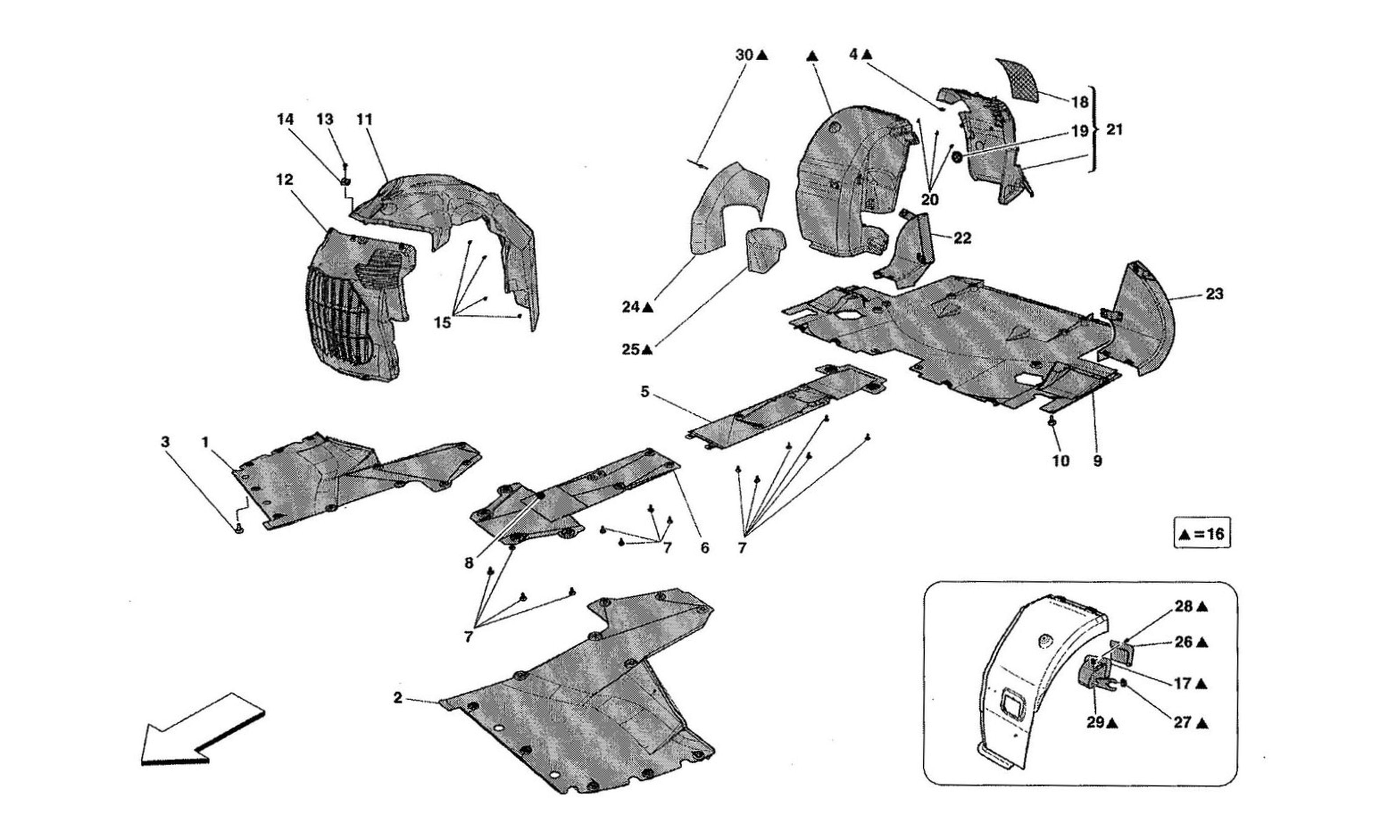

Schematic: Flat Undertray And Wheelhouses
Schematic: Flat Undertray And Wheelhouses
Loc
Part
Cond       Price
1
FRONT RH UNDERBODY SHIELD
81722200 (1) Full qty
1
FRONT RH UNDERBODY SHIELD
83004600 (1) Full qty
1
FRONT RH UNDERBODY SHIELD
84407500 (1) Full qty
2
FRONT LH UNDERBODY SHIELD
81722300 (1) Full qty
2
FRONT LH UNDERBODY SHIELD
83004700 (1) Full qty
2
FRONT LH UNDERBODY SHIELD
84407600 (1) Full qty
3
SCREW
67578600 (12) Full qty
3
SCREW
80874700 (8) Full qty
3
SCREW -No longer supplied- -Re…
81290900 (22) Full qty
4
BRACKET FOR SCREWS
14189071 (8) Full qty
5
CENTRAL UNDERBODY SHIELD
81507500 (1) Full qty
5
CENTRAL UNDERBODY SHIELD
82884900 (1) Full qty
6
CENTRAL UNDERBODY SHIELD, FRON…
82351600 (1) Full qty
6
CENTRAL UNDERBODY SHIELD, FRON…
82955800 (1) Full qty
7
Panel Screw
New       Price on Enquiry
65933500 (14) Full qty
ET25061n
8
BRACKET
14369271 (2) Full qty
9
REAR UNDERBODY SHIELD
81364600 (1) Full qty
9
REAR UNDERBODY SHIELD
82885200 (1) Full qty
9
REAR UNDERBODY SHIELD
83916400 (1) Full qty
9
REAR UNDERBODY SHIELD
84200000 (1) Full qty
11
RH FRONT WHEELHOUSE
81366200 (1) Full qty
11
RH FRONT WHEELHOUSE
82911500 (1) Full qty
11
LH FRONT WHEELHOUSE
81366300 (1) Full qty
11
LH FRONT WHEELHOUSE
82911600 (1) Full qty
12
RH GRAVEL GUARD
81535600 (1) Full qty
12
LH GRAVEL GUARD
81535800 (1) Full qty
16
COMPL. RH WHEELHOUSE
82471300 (1) Full qty
16
COMPL. RH WHEELHOUSE
83779500 (1) Full qty
16
COMPL. RH WHEELHOUSE
84025700 (1) Full qty
16
COMPL. LH WHEELHOUSE
82471500 (1) Full qty
16
COMPL. LH WHEELHOUSE
83779600 (1) Full qty
16
COMPL. LH WHEELHOUSE
84025800 (1) Full qty
17
VAPOUR VENT OUTLET
82920600 (1) Full qty
17
VENT OUTLET
83780000 (1) Full qty
17
VENT OUTLET
83862100 (1) Full qty
18
RH REAR GRAVEL GUARD GRILLE
82441500 (1) Full qty
18
LH REAR GRAVEL GUARD GRILLE
82441600 (1) Full qty
18
REAR GRAVEL GUARD GRILLE
83561600 (2) Full qty
19
GROMMET WITH MEMBRANE
81535200 (1) Full qty
20
SCREW
13287724 (12) Full qty
20
SCREW
13290024 (30) Full qty
21
RH REAR WHEELHOUSE REAR GRAVEL…
82471600 (1) Full qty
21
LH REAR WHEELHOUSE REAR GRAVEL…
82471700 (1) Full qty
22
RH DUCT
81521400 (1) Full qty
22
RH DUCT
81763000 (1) Full qty
23
LH DUCT
81521500 (1) Full qty
23
LH DUCT
81763100 (1) Full qty
24
UPPER RH HEAT SHIELD
83004200 (1) Full qty
24
UPPER RH HEAT SHIELD
83779000 (1) Full qty
24
UPPER RH HEAT SHIELD
84026000 (1) Full qty
24
UPPER LH HEAT SHIELD
83003900 (1) Full qty
24
UPPER LH HEAT SHIELD
83779200 (1) Full qty
25
LOWER RH HEAT SHIELD
83004100 (1) Full qty
25
LOWER RH HEAT SHIELD
83779100 (1) Full qty
25
LOWER RH HEAT SHIELD
84026100 (1) Full qty
25
LOWER LH HEAT SHIELD
83004000 (1) Full qty
25
LOWER LH HEAT SHIELD
83779300 (1) Full qty
25
LOWER LH HEAT SHIELD
84026400 (1) Full qty
26
FLOOR HATCH COVER
83003800 (1) Full qty
27
Clamps
13000290 (1) Full qty
27
CLIP
13430770 (1) Full qty
28
SCREW
68176300 (3) Full qty
28
Screw
New       £ 1.34
169814 (3) Full qty
BW99327n
29
BRACKET
14370874 (3) Full qty
30
RIVET
14641191 (40) Full qty
30
RIVET -Not for UAE- -Applicabl…
14296196 (40) Full qty
31
CAP FOR SLOT
82159500 (2) Full qty
