Chassis - Structure, Rear Elements And Panels

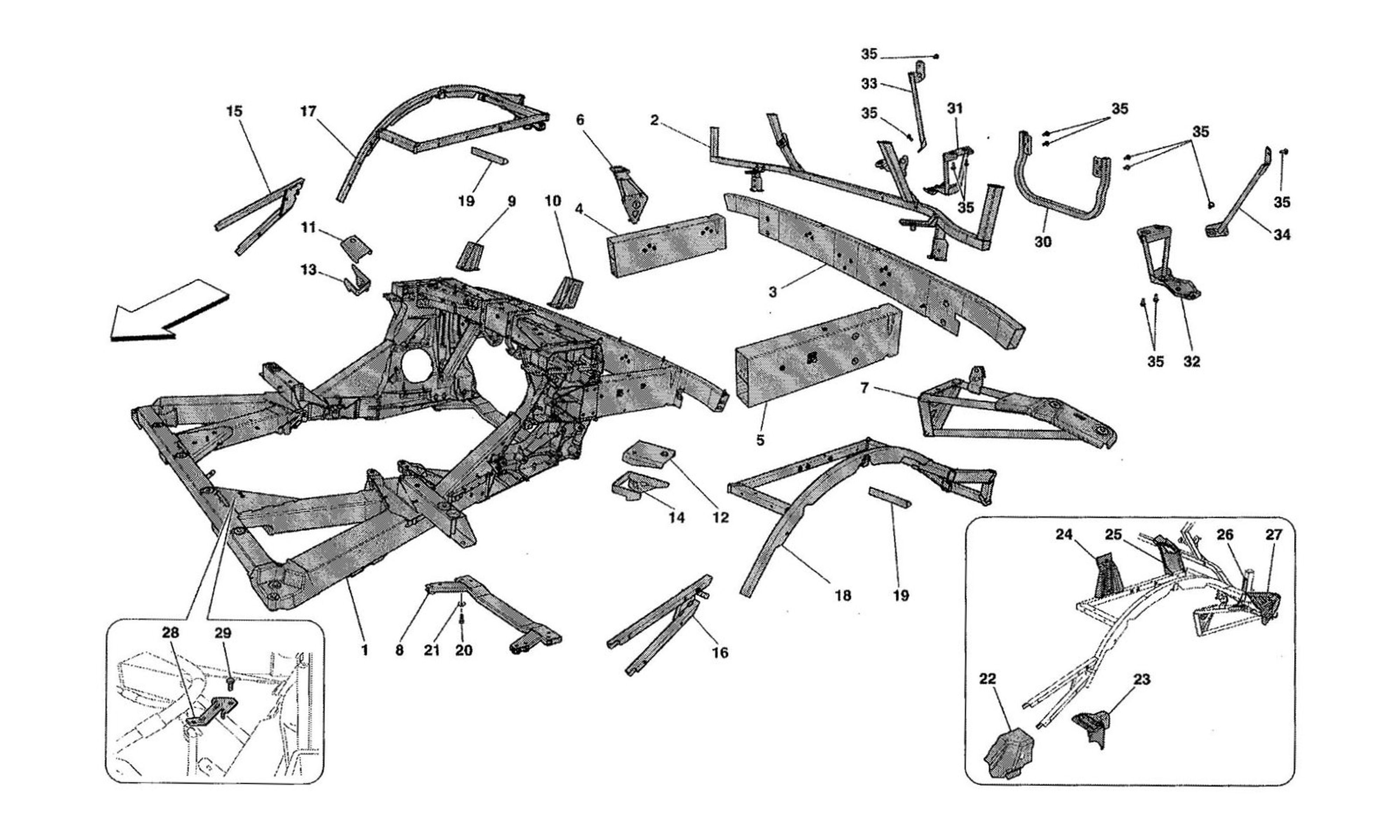

Schematic: Chassis - Structure, Rear Elements And Panels
Loc
Part
Cond       Price
1
REAR SUBFRAME
985264314 (1) Full qty
1
REAR SUBFRAME
985269299 (1) Full qty
1
REAR SUBFRAME
985280290 (1) Full qty
1
REAR SUBFRAME
985269296 (1) Full qty
1
REAR SUBFRAME
985280310 (1) Full qty
2
UPPER REAR TRELLIS
82993500 (1) Full qty
3
REAR BUMPER FASTENING CROSS ME…
259555 (1) Full qty
3
REAR BUMPER FASTENING CROSS ME…
271420 (1) Full qty
4
REAR RH STRUT
249984 (1) Full qty
4
REAR RH STRUT
271357 (1) Full qty
5
REAR LH STRUT
249982 (1) Full qty
5
REAR LH STRUT
271356 (1) Full qty
6
RH FLANK MOUNTING BRACKET
81957000 (1) Full qty
6
RH FLANK MOUNTING BRACKET
84041200 (1) Full qty
7
LH FLANK MOUNTING BRACKET
81957100 (1) Full qty
7
LH FLANK MOUNTING BRACKET
84041800 (1) Full qty
8
LOWER GEARBOX MOUNTING CROSS M…
245981 (1) Full qty
8
LOWER GEARBOX MOUNTING CROSS M…
270599 (1) Full qty
11
UPPER RH TRELLIS MOUNTING BRAC…
82572600 (1) Full qty
12
UPPER LH TRELLIS MOUNTING BRAC…
82572700 (1) Full qty
13
LOWER RH TRELLIS MOUNTING BRAC…
260696 (1) Full qty
14
LOWER LH TRELLIS MOUNTING BRAC…
260695 (1) Full qty
15
FRONT RH FLANK TRELLIS
82042900 (1) Full qty
15
FRONT RH FLANK TRELLIS
84042200 (1) Full qty
16
FRONT LH FLANK TRELLIS
82043000 (1) Full qty
16
FRONT LH FLANK TRELLIS
84042600 (1) Full qty
17
REAR RH FLANK TRELLIS
81581000 (1) Full qty
17
REAR RH FLANK TRELLIS
84429900 (1) Full qty
18
REAR LH FLANK TRELLIS
81581100 (1) Full qty
18
REAR LH FLANK TRELLIS
84430200 (1) Full qty
19
ANGULAR BRACE FOR FLANK MOUNTI…
81952000 (2) Full qty
20
SCREW
265036 (10) Full qty
20
SCREW
14308234 (10) Full qty
21
WASHER
12638624 (10) Full qty
21
WASHER
12626024 (10) Full qty
22
FRONT LOWER BRACKET FOR LH FEN…
81288800 (1) Full qty
22
FRONT LOWER BRACKET FOR RH FEN…
81287800 (1) Full qty
23
REAR LOWER BRACKET FOR LH FEND…
81518200 (1) Full qty
23
REAR LOWER BRACKET FOR RH FEND…
81518100 (1) Full qty
24
CENTRE LH BRACKET
81649800 (1) Full qty
24
CENTRE RH BRACKET
81649700 (1) Full qty
25
REAR LH BRACKET
81583300 (1) Full qty
25
REAR RH BRACKET
81583200 (1) Full qty
26
LH LATERAL REAR BRACKET
82626400 (1) Full qty
26
RH LATERAL REAR BRACKET
82626300 (1) Full qty
27
LH REAR FLANK BRACKET
81582700 (1) Full qty
27
RH REAR FLANK BRACKET
81582600 (1) Full qty
28
SCREW -M6 X 1 X 18-
269959 (4) Full qty
29
WASHER
12647778 (4) Full qty
30
COMPL. CENTRE REAR TRELLIS
82629200 (1) Full qty
31
COMPL. RH BUMPER MOUNTING TREL…
82664700 (1) Full qty
31
COMPL. RH BUMPER MOUNTING TREL…
84043900 (1) Full qty
32
COMPL. LH BUMPER MOUNTING TREL…
82664800 (1) Full qty
32
COMPL. LH BUMPER MOUNTING TREL…
84044400 (1) Full qty
33
COMPL. RH BUMPER MOUNTING BRAC…
82663800 (1) Full qty
33
COMPL. RH BUMPER MOUNTING BRAC…
84043000 (1) Full qty
34
COMPL. LH BUMPER MOUNTING BRAC…
82663900 (1) Full qty
34
COMPL. LH BUMPER MOUNTING BRAC…
84043400 (1) Full qty
35
SCREW -M6 X 18-
11625824 (12) Full qty
36
PLATE
268207 (2) Full qty
37
REAR ACCELEROMETER BRACKET
279382 (1) Full qty
38
LH BRACKET
256195 (1) Full qty
38
RH BRACKET
256197 (1) Full qty
