Central Elements And Panels

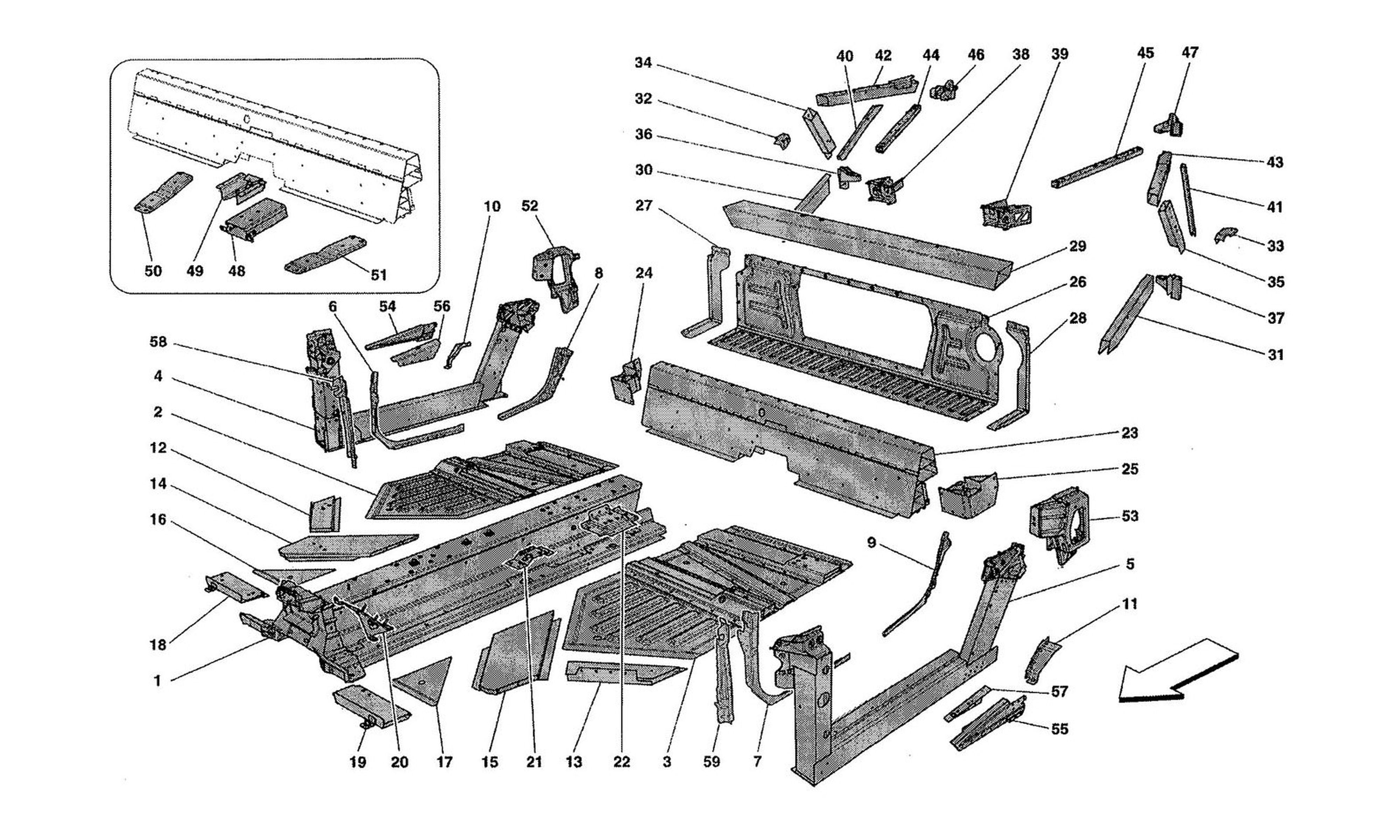

Schematic: Central Elements And Panels
Schematic: Central Elements And Panels
Loc
Part
Cond       Price
1
COMPL. TUNNEL
256242 (1) Full qty
1
COMPL. TUNNEL
263595 (1) Full qty
1
COMPL. TUNNEL
271510 (1) Full qty
1
COMPL. TUNNEL
262616 (1) Full qty
1
COMPL. TUNNEL
274076 (1) Full qty
2
COMPL. RH HALF FLOOR PANEL
252405 (1) Full qty
2
COMPL. RH HALF FLOOR PANEL
271556 (1) Full qty
3
COMPL. LH HALF FLOOR PANEL
252404 (1) Full qty
3
COMPL. LH HALF FLOOR PANEL
271555 (1) Full qty
4
RH SILL
263778 (1) Full qty
4
RH SILL
276995 (1) Full qty
4
RH SILL
280289 (1) Full qty
4
RH SILL
269334 (1) Full qty
4
RH SILL
276998 (1) Full qty
4
RH SILL
280298 (1) Full qty
5
LH SILL
263779 (1) Full qty
5
LH SILL
276996 (1) Full qty
5
LH SILL
280288 (1) Full qty
5
LH SILL
269335 (1) Full qty
5
LH SILL
280295 (1) Full qty
6
FRONT RH ENDPIECE
81285800 (1) Full qty
6
FRONT RH ENDPIECE
83814500 (1) Full qty
7
FRONT LH ENDPIECE
81286500 (1) Full qty
7
FRONT LH ENDPIECE
83814600 (1) Full qty
8
REAR RH ENDPIECE
83371800 (1) Full qty
8
REAR RH ENDPIECE
83815000 (1) Full qty
9
REAR LH ENDPIECE
82820400 (1) Full qty
9
REAR LH ENDPIECE
83814700 (1) Full qty
10
FRONT FASTENER BRACKET FOR RH …
249925 (1) Full qty
11
FRONT FASTENER BRACKET FOR LH …
249924 (1) Full qty
12
RH BRACE
242109 (1) Full qty
13
LH BRACE
242108 (1) Full qty
13
LH BRACE
265282 (1) Full qty
14
RH BRACE BETWEEN TORQUE BOX AN…
245513 (1) Full qty
14
RH BRACE BETWEEN TORQUE BOX AN…
263692 (1) Full qty
15
LH BRACE BETWEEN TORQUE BOX AN…
245514 (1) Full qty
15
LH BRACE BETWEEN TORQUE BOX AN…
263693 (1) Full qty
16
FRONT RH FLOOR ENDPIECE
248977 (1) Full qty
17
FRONT LH FLOOR ENDPIECE
248976 (1) Full qty
18
FRONT RH CROSS MEMBER
246743 (1) Full qty
19
FRONT LH CROSS MEMBER
246742 (1) Full qty
19
FRONT LH CROSS MEMBER
263695 (1) Full qty
20
ACCELERATOR PEDAL FASTENER BRA…
256175 (1) Full qty
20
ACCELERATOR PEDAL FASTENER BRA…
262621 (1) Full qty
21
LH SEAT GUIDE RAIL FASTENER BR…
253140 (1) Full qty
21
LH SEAT GUIDE RAIL FASTENER BR…
262866 (1) Full qty
21
RH SEAT GUIDE RAIL FASTENER BR…
253141 (1) Full qty
21
RH SEAT GUIDE RAIL FASTENER BR…
262867 (1) Full qty
22
REAR FASTENER BRACKET FOR LH S…
253194 (1) Full qty
22
REAR FASTENER BRACKET FOR RH S…
253193 (1) Full qty
23
SILL LINK CROSS MEMBER
264307 (1) Full qty
24
LOWER RH EXTRUSION
264308 (1) Full qty
25
LOWER LH EXTRUSION
264309 (1) Full qty
26
REAR FIREWALL
262279 (1) Full qty
26
REAR FIREWALL
280921 (1) Full qty
27
RH LATERAL MOUNTING FOR FIREWA…
257398 (1) Full qty
28
LH LATERAL MOUNTING FOR FIREWA…
257397 (1) Full qty
29
FUEL TANK CROSS MEMBER
253305 (1) Full qty
29
FUEL TANK CROSS MEMBER
274768 (1) Full qty
29
FUEL TANK CROSS MEMBER
280501 (1) Full qty
29
FUEL TANK CROSS MEMBER
265881 (1) Full qty
29
FUEL TANK CROSS MEMBER
275609 (1) Full qty
29
FUEL TANK CROSS MEMBER
280507 (1) Full qty
30
RH LATERAL IMPACT BOX MEMBER
256697 (1) Full qty
31
LH LATERAL IMPACT BOX MEMBER
256696 (1) Full qty
32
REAR FASTENER BRACKET FOR RH R…
254479 (1) Full qty
33
REAR FASTENER BRACKET FOR LH R…
254478 (1) Full qty
34
RH REAR PILLAR BRACE
255316 (1) Full qty
35
LH REAR PILLAR BRACE
255315 (1) Full qty
36
RH SUBFRAME LINK EXTRUSION
264431 (1) Full qty
37
LH SUBFRAME LINK EXTRUSION
264310 (1) Full qty
38
RH MOUNTING BRACKET FOR REMOVA…
254099 (1) Full qty
38
RH MOUNTING BRACKET FOR REMOVA…
263496 (1) Full qty
38
UPPER RH BELT JOINT CASTING
271054 (1) Full qty
39
LH MOUNTING BRACKET FOR REMOVA…
254098 (1) Full qty
39
LH MOUNTING BRACKET FOR REMOVA…
263495 (1) Full qty
39
UPPER LH BELT JOINT CASTING
271053 (1) Full qty
40
RH SUSPENSION CASTING BRACE
255318 (1) Full qty
41
LH SUSPENSION CASTING BRACE
255317 (1) Full qty
42
RH UPPER EXTERNAL DIAGONAL BRA…
253311 (1) Full qty
43
LH UPPER EXTERNAL DIAGONAL BRA…
253310 (1) Full qty
44
RH INTERNAL BOX MEMBER
250076 (1) Full qty
44
RH INTERNAL BOX MEMBER
262872 (1) Full qty
44
RH INTERNAL BOX MEMBER
271958 (1) Full qty
45
LH INTERNAL BOX MEMBER
250075 (1) Full qty
45
LH INTERNAL BOX MEMBER
262873 (1) Full qty
45
LH INTERNAL BOX MEMBER
271956 (1) Full qty
46
CASTING FOR REAR RH SHOCK TOWE…
264311 (1) Full qty
47
CASTING FOR REAR LH SHOCK TOWE…
264312 (1) Full qty
48
COMPL. ENGINE BUFFER ASSEMBLY
264313 (1) Full qty
48
COMPL. ENGINE BUFFER ASSEMBLY
269336 (1) Full qty
48
COMPL. ENGINE BUFFER ASSEMBLY
283984 (1) Full qty
49
REAR SHELF MOUNTING PLATE
256871 (1) Full qty
50
RH FUEL PIPE GUARD PLATE
255255 (1) Full qty
51
LH FUEL PIPE GUARD PLATE
255252 (1) Full qty
52
COMPL. RH LATERAL IMPACT REINF…
81992500 (1) Full qty
53
COMPL. LH LATERAL IMPACT REINF…
81992600 (1) Full qty
54
EXTERNAL RH TRUSS
255670 (1) Full qty
54
EXTERNAL RH TRUSS
271419 (1) Full qty
55
EXTERNAL LH TRUSS
255669 (1) Full qty
55
EXTERNAL LH TRUSS
271417 (1) Full qty
56
INTERNAL RH TRUSS
255668 (1) Full qty
56
INTERNAL RH TRUSS
271425 (1) Full qty
56
INTERNAL RH TRUSS
263952 (1) Full qty
56
INTERNAL RH TRUSS
274086 (1) Full qty
57
INTERNAL LH TRUSS
255667 (1) Full qty
57
INTERNAL LH TRUSS
271422 (1) Full qty
57
INTERNAL LH TRUSS
263951 (1) Full qty
57
INTERNAL LH TRUSS
274085 (1) Full qty
58
A PILLAR FLANGE, FRONT RH ELEM…
81285700 (1) Full qty
58
A PILLAR FLANGE, FRONT RH ELEM…
83816100 (1) Full qty
59
A PILLAR FLANGE, FRONT LH SECT…
81286400 (1) Full qty
59
A PILLAR FLANGE, FRONT LH SECT…
83816300 (1) Full qty
60
BRACKET
82677800 (2) Full qty
61
ACCELEROMETER FASTENER BRACKET…
84682900 (1) Full qty
