Air Conditioning System

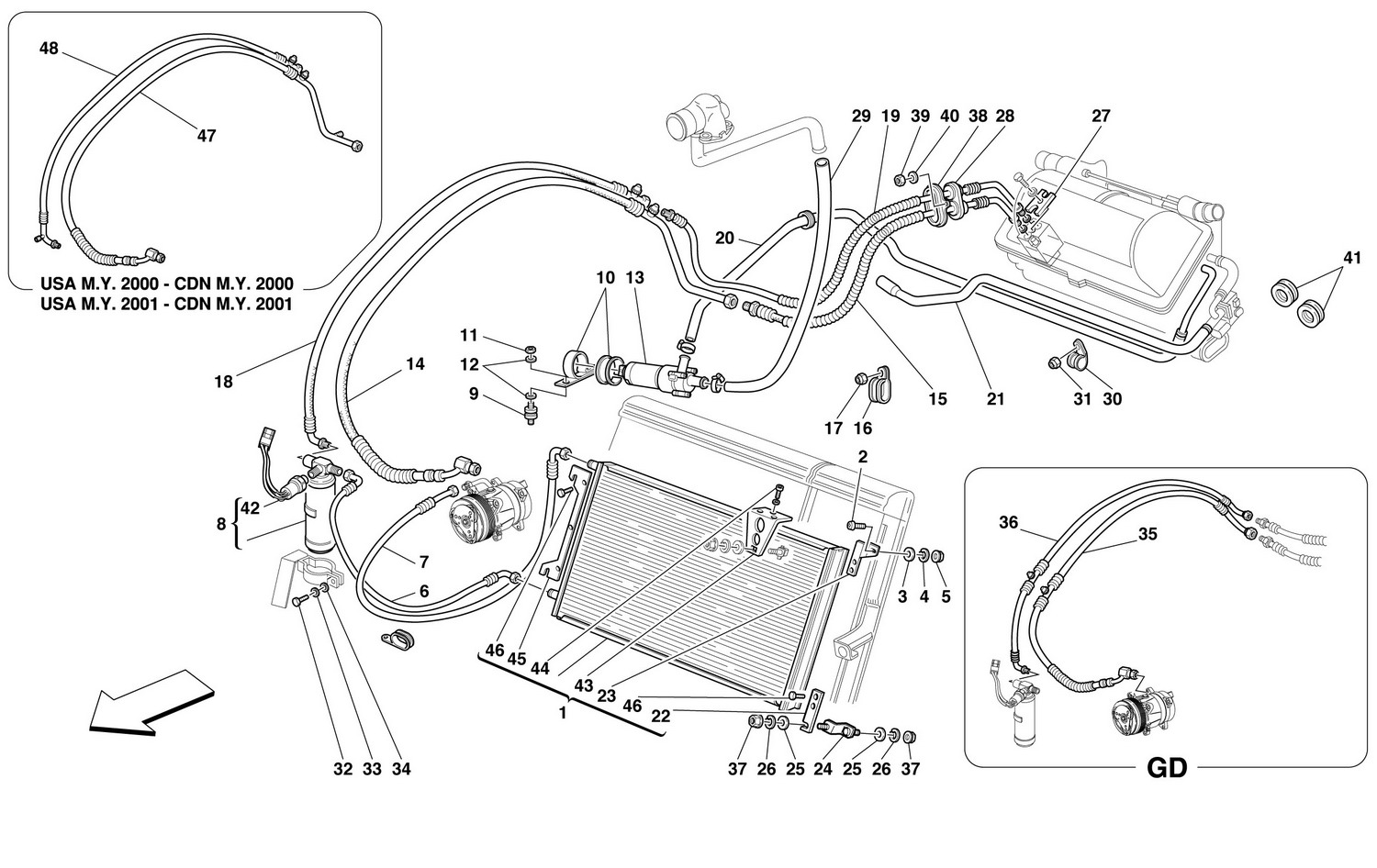

Schematic: Air Conditioning System
Loc
Part
Cond       Price
1
AC CONDENSER
165563 (1) Full qty
2
SCREW
14778814 (1) Full qty
3
WASHER
14496424 (2) Full qty
4
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
5
NUT
15896214 (2) Full qty
6
PIPE FROM CONDENSER TO DEHYDR…
64827500 (1) Full qty
7
PIPE FROM COMPRESSOR TO CONDE…
64827400 (1) Full qty
8
DEHYDRATOR FILTER WITH PRESSU…
64799500 (1) Full qty
9
New       £ 18.63
142202 (2) Full qty
FU15682n
10
BRACKET FOR PUMP FIXING
63994900 (1) Full qty
11
Nut
102741 (2) Full qty
12
WASHER
14496424 (2) Full qty
13
WATER RECIRCULATION PUMP
65460300 (1) Full qty
14
PIPE FROM HOSE TO COMPRESSOR
65419600 (1) Full qty
15
HOSE FROM EVAPORATOR TO PIPE
64791200 (1) Full qty
16
Hose fastening bracket
61712500 (1) Full qty
17
Nut
102741 (1) Full qty
18
PIPE FROM DEHYDRATOR FILTER TO…
64827600 (1) Full qty
19
HOSE FROM PIPE TO EVAPORATOR
64791300 (1) Full qty
20
DELIVERY TUBE FROMP WATER PUMP…
65846100 (1) Full qty
20
DELIVERY TUBE FROMP WATER PUMP…
65674900 (1) Full qty
21
RETURN TUBE FROM VALVE TO NOUR…
65674500 (1) Full qty
21
RETURN TUBE FROM VALVE TO NOUR…
65618300 (1) Full qty
22
L.H. LOWER BRACKET
168068 (1) Full qty
23
L.H. UPPER BRACKET
165561 (1) Full qty
24
SMALL PLATE
156989 (1) Full qty
25
Washer
12646601 (2) Full qty
26
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
27
uPPER FLANGE
64281500 (1) Full qty
28
RUBBER PIPE-HOLDER
63961800 (1) Full qty
29
DELIVERY TUBE FROM ENGINE TO …
65419500 (1) Full qty
30
Bracket D. 28
61712600 (1) Full qty
31
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
32
SCREW -M6 X 20- -Fastening bra…
10902424 (1) Full qty
33
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
34
WASHER
12643724 (1) Full qty
35
PIPE FROM HOSE TO COMPRESSOR
65618200 (1) Full qty
36
PIPE FROM DEHYDRATOR FILTER TO…
65655400 (1) Full qty
37
NUT
15896214 (2) Full qty
38
PIPE-HOLDER FRAME
63961900 (1) Full qty
39
NUT
169180 (2) Full qty
40
WASHER
12638124 (2) Full qty
41
CABLE GROMMET
10459087 (2) Full qty
42
PRESSURE SWITCH
66374400 (1) Full qty
43
BRACKET
165562 (1) Full qty
44
SCREW
165136 (3) Full qty
45
BRACKET
165560 (1) Full qty
46
SCREW
165137 (7) Full qty
47
PIPE FROM HOSE TO COMPRESSOR
65990400 (1) Full qty
48
PIPE FROM DEHYDRATOR FILTER TO…
65990500 (1) Full qty
