Self-Levelling Suspension System -Not For 456M Gta

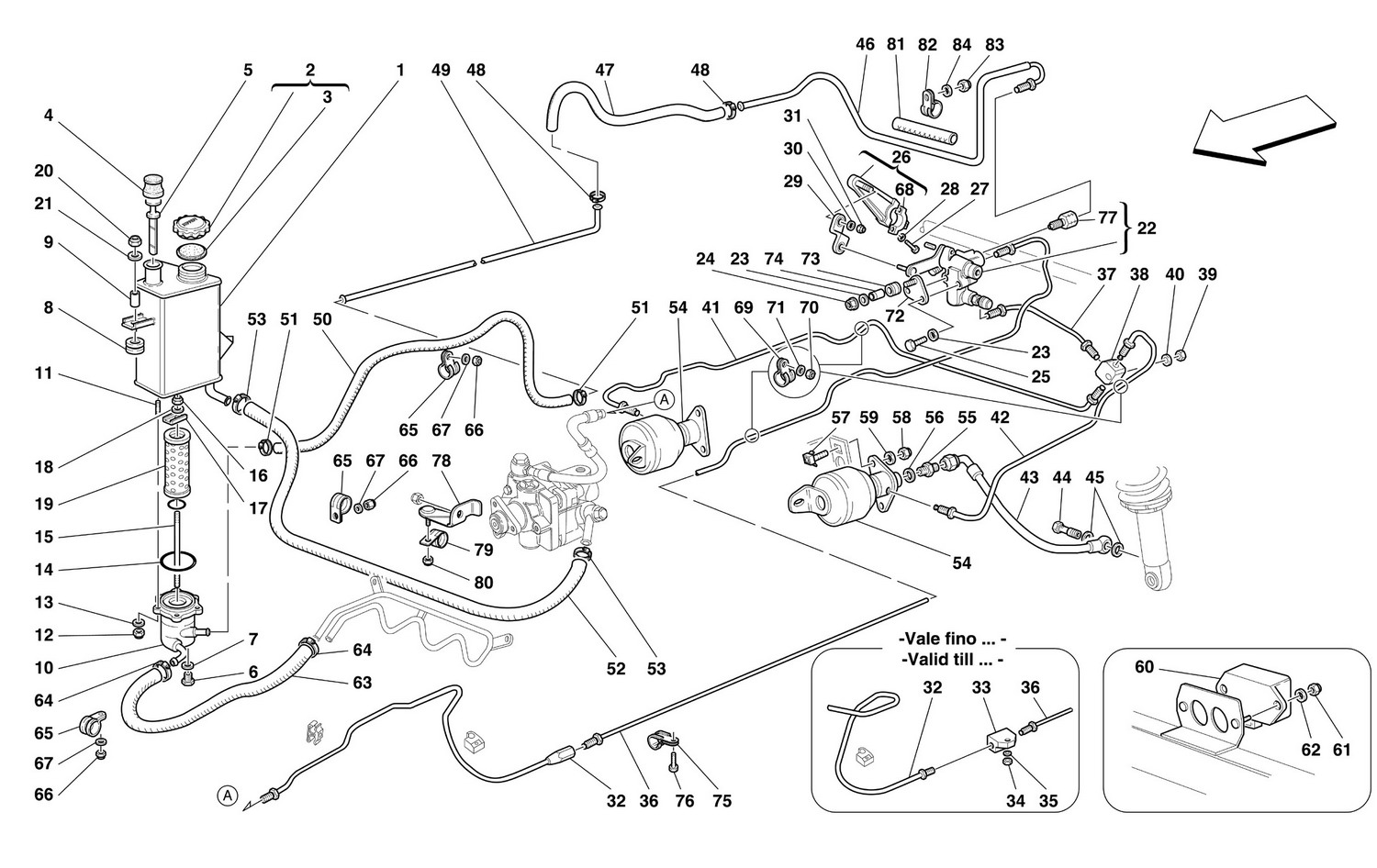

Schematic: Self-Levelling Suspension System -Not For 456M Gta
Schematic: Self-Levelling Suspension System -Not For 456M Gta
Loc
Part
Cond       Price
1
FUEL TANK
179185 (1) Full qty
2
COMPLETE PLUG
180590 (1) Full qty
2
Fuel Cap/Oil Cap Brushed
180320 (1) Full qty
3
GASKET
180585 (1) Full qty
4
PLUG
153887 (1) Full qty
5
OIL LEVEL INDICATOR ROD
154090 (1) Full qty
6
OIL OUTLET PLUG
14326007 (1) Full qty
7
Copper washer
10260160 (1) Full qty
8
Cable Grommet
New       Price on Enquiry
103549 (3) Full qty
AC00210n
9
Spacer
103550 (3) Full qty
10
SPINDLE FOR FUEL TANK
181233 (1) Full qty
10
SPINDLE FOR FUEL TANK
154089 (1) Full qty
11
STUD BOLT
13539424 (6) Full qty
12
NUT
169180 (6) Full qty
13
WASHER
14496324 (6) Full qty
14
GASKET
154691 (1) Full qty
15
STUD
153646 (1) Full qty
16
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
17
PLATE
157100 (1) Full qty
18
WASHER
14496424 (1) Full qty
19
OIL FILTER
154217 (1) Full qty
20
Nyloc Nut 6 x 1 x 7.6mm
102948 (3) Full qty
21
WASHER
12643724 (6) Full qty
22
VALVE
153814 (1) Full qty
22
VALVE AND UNION ASSEMBLY
179046 (1) Full qty
23
WASHER
12643724 (3) Full qty
24
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
25
SCREW
10902834 (2) Full qty
26
LEVER
156709 (1) Full qty
27
SCREW
10978024 (2) Full qty
28
WASHER
14496324 (2) Full qty
29
SMALL LINK
180857 (1) Full qty
29
SMALL LINK
153810 (1) Full qty
30
WASHER
10519224 (2) Full qty
31
NUT
62790300 (2) Full qty
32
PIPE FROM HOSE TO TWO-WAY UNIO…
175639 (2) Full qty
32
PIPE FROM HOSE TO UNION
178670 (2) Full qty
32
PIPE FROM HOSE TO UNION
178672 (2) Full qty
32
PIPE FROM HOSE TO TWO-WAY UNIO…
176971 (2) Full qty
33
TWO-WAY UNION
155215 (1) Full qty
34
Nut
102741 (1) Full qty
35
WASHER
12639724 (1) Full qty
36
PIPE FROM UNION TO VALVE
155446 (1) Full qty
36
PIPE FROM UNION TO VALVE
178673 (1) Full qty
37
PIPE FROM VALVE TO 3-WAY UNIO…
154155 (1) Full qty
38
3-WAY UNION
154156 (1) Full qty
39
Nut
102741 (1) Full qty
40
WASHER
12639724 (1) Full qty
41
PIPE FROM 3-WAY UNION TO R.H.A…
154157 (1) Full qty
42
PIPE FROM 3-WAY UNION TO L.H. …
154158 (1) Full qty
43
PIPE FROM ACCUMULATOR TO SHOCK…
154159 (2) Full qty
44
Pipe union
10185111 (2) Full qty
45
COPPER GASKET
11270260 (4) Full qty
46
RETURN PIPE
154161 (1) Full qty
47
RETURN RUBBER PIPE
155444 (1) Full qty
48
Clamp
13000190 (2) Full qty
49
INTERMEDIATE BUNDY TUBE
155447 (1) Full qty
50
RUBBER PIPE TO TANK
155443 (1) Full qty
51
Clamp
13000190 (2) Full qty
52
RUBBER PIPE FROM TANK TO PUMP…
179519 (1) Full qty
52
RUBBER PIPE FROM TANK TO PUMP …
155442 (1) Full qty
53
Clamp
13000390 (2) Full qty
54
ACCUMULATOR FOR ATTITUDE VAR…
158693 (2) Full qty
55
UNION
155129 (2) Full qty
56
Washer 14x20x1.5mm
New       £ 1.25
10280060 (2) Full qty
FU00140n
57
Screw
14664790 (6) Full qty
58
Nut
102741 (6) Full qty
59
WASHER
14496424 (6) Full qty
60
Accelerometer 456/550/355/F50
154310 (1) Full qty
61
Nut
102741 (2) Full qty
62
Washer
12646601 (2) Full qty
63
RUBBER PIPE FROM COOLING PIPE …
179739 (1) Full qty
63
RUBBER PIPE FROM COOLING PIPE …
155574 (1) Full qty
64
COLLAR
161490 (2) Full qty
65
Bracket
10441790 (4) Full qty
66
Nut
102741 (4) Full qty
67
WASHER
12639724 (4) Full qty
68
RETAINER
158087 (1) Full qty
69
Hose supporting braket
10440890 (1) Full qty
70
Nut
102741 (1) Full qty
71
Washer 1.6mm 6.4x11.95x1.6
10519424 (1) Full qty
72
INTERMEDIATE BRACKET
169224 (1) Full qty
73
Cable Grommet
New       Price on Enquiry
103549 (3) Full qty
AC00210n
74
Spacer
103550 (3) Full qty
75
Hose fastening bracket
10441490 (1) Full qty
76
SCREW -M6 X 14-
10902124 (1) Full qty
77
UNION
180913 (1) Full qty
78
BRACKET
179086 (1) Full qty
79
Strap
10441990 (1) Full qty
80
Nut
102741 (1) Full qty
81
RUBBER HOSE
179319 (2) Full qty
82
Bracket
10441690 (2) Full qty
83
Nut
102741 (2) Full qty
84
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
