Engine Connection Tube - Gearbox And Insulation

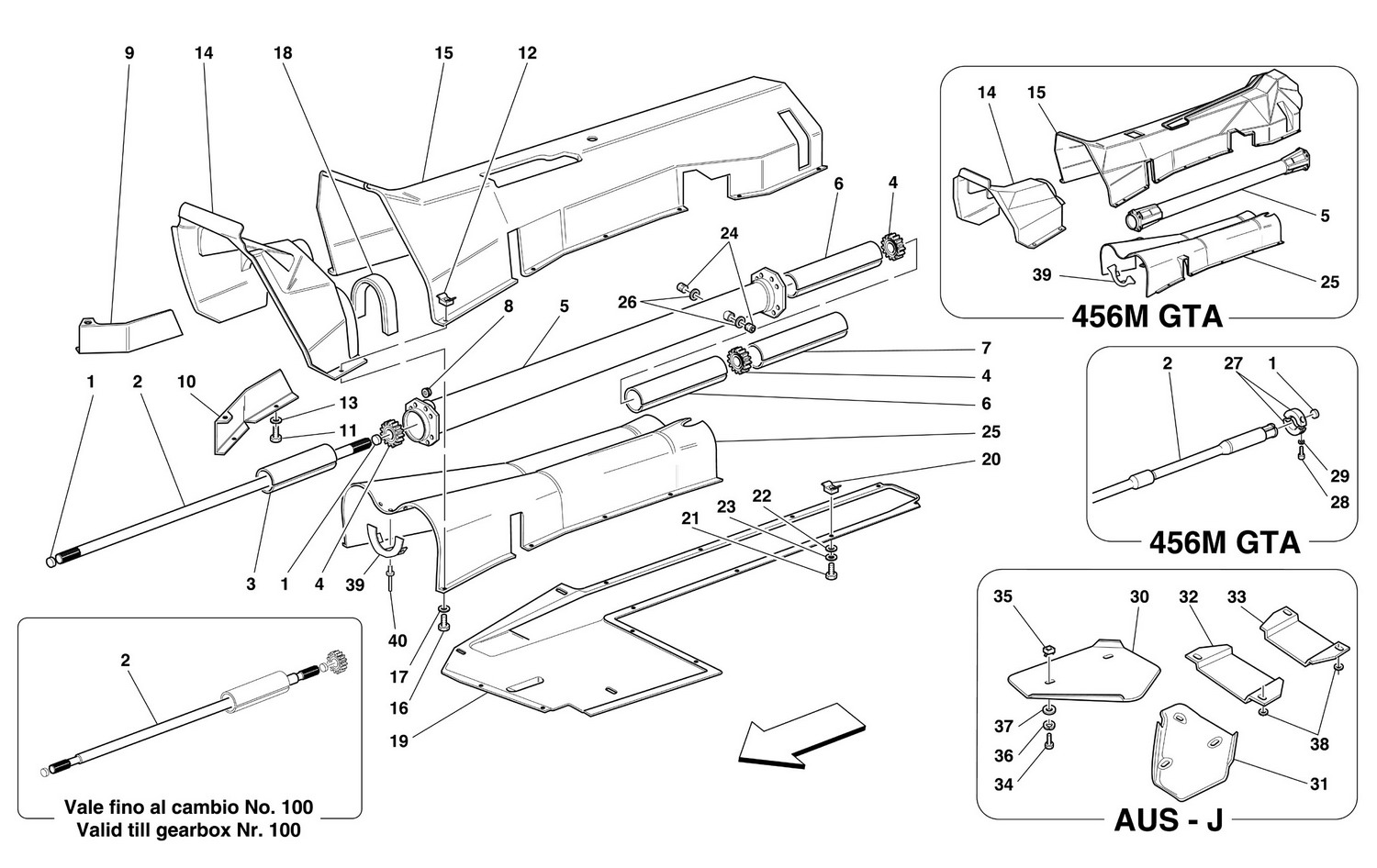

Schematic: Engine Connection Tube - Gearbox And Insulation
Schematic: Engine Connection Tube - Gearbox And Insulation
Loc
Part
Cond       Price
1
SHIM
144443 (2) Full qty
2
PROPELLER SHAFT
178297 (1) Full qty
2
PROPELLER SHAFT
154501 (1) Full qty
2
PROPELLER SHAFT
172986 (1) Full qty
3
ENGINE SIDE SPACER
162448 (1) Full qty
3
ENGINE SIDE SPACER
157055 (1) Full qty
4
BEARING
155564 (3) Full qty
4
BEARING
168319 (3) Full qty
5
ENGINE-GEARBOX CONNECTING PIPE…
175106 (1) Full qty
5
ENGINE-GEARBOX CONNECTING PIPE…
176907 (1) Full qty
6
INTERMEDIATE SPACER
157057 (2) Full qty
6
INTERMEDIATE SPACER
162447 (2) Full qty
7
GEARBOX SIDE SPACER
157056 (1) Full qty
7
GEARBOX SIDE SPACER
169800 (1) Full qty
8
NUT
156462 (16) Full qty
9
R.H. HEAT PROTECTION SHIELD
65505900 (1) Full qty
10
L.H. HEAT PROTECTION SHIELD
65506100 (1) Full qty
11
SCREW -M6 X 14-
10902124 (6) Full qty
12
NUT WITH CAGE
65774200 (20) Full qty
13
WASHER
14488670 (6) Full qty
14
HEAT PROTECTION SHIELD FOR CLU…
65648900 (1) Full qty
14
HEAT PROTECTION SHIELD FOR CLU…
64234200 (1) Full qty
15
TUNNEL ASSEMBLY
63964100 (1) Full qty
15
TUNNEL ASSEMBLY
65649100 (1) Full qty
16
SCREW
10902380 (20) Full qty
17
WASHER
12643770 (20) Full qty
17
WASHER
12643770 (20) Full qty
18
RUBBER BOOT
63940000 (1) Full qty
18
RUBBER BOOT
64888600 (1) Full qty
19
L.H. UNDERFLOOR SHIELD
63939700 (1) Full qty
19
R.H. UNDERFLOOR SHIELD
63939600 (1) Full qty
20
NUT WITH CAGE
65774200 (30) Full qty
21
SCREW
10902180 (30) Full qty
22
Clutch Bolt Wavy Washer 550/57…
127494 (30) Full qty
23
WASHER
14488670 (16) Full qty
23
WASHER
12643770 (14) Full qty
23
WASHER
12643770 (14) Full qty
24
THREADED PLUG
162393 (2) Full qty
25
TUNNEL SHIELD
155474 (1) Full qty
25
TUNNEL SHIELD
65649300 (1) Full qty
26
WASHER
10520224 (2) Full qty
27
SLEEVE
172558 (2) Full qty
28
Screw
New       Price on Enquiry
14306524 (2) Full qty
SU11732n
29
Washer
10569373 (2) Full qty
30
R.H. FRONT SHIELD
158292 (1) Full qty
31
L.H. FRONT SHIELD
158293 (1) Full qty
32
CENTRAL SHIELD
178561 (1) Full qty
33
REAR SHIELD
178562 (1) Full qty
34
SCREW
10902180 (6) Full qty
35
Caget nut
60758600 (6) Full qty
36
Clutch Bolt Wavy Washer 550/57…
127494 (6) Full qty
37
WASHER
12643770 (6) Full qty
37
WASHER
12643770 (6) Full qty
38
Washer
New       Price on Enquiry
12625224 (4) Full qty
BS00500n
39
PLATE
65914900 (1) Full qty
39
PLATE
65915000 (1) Full qty
40
Rivet
61741600 (3) Full qty
