Rear Seats And Belts

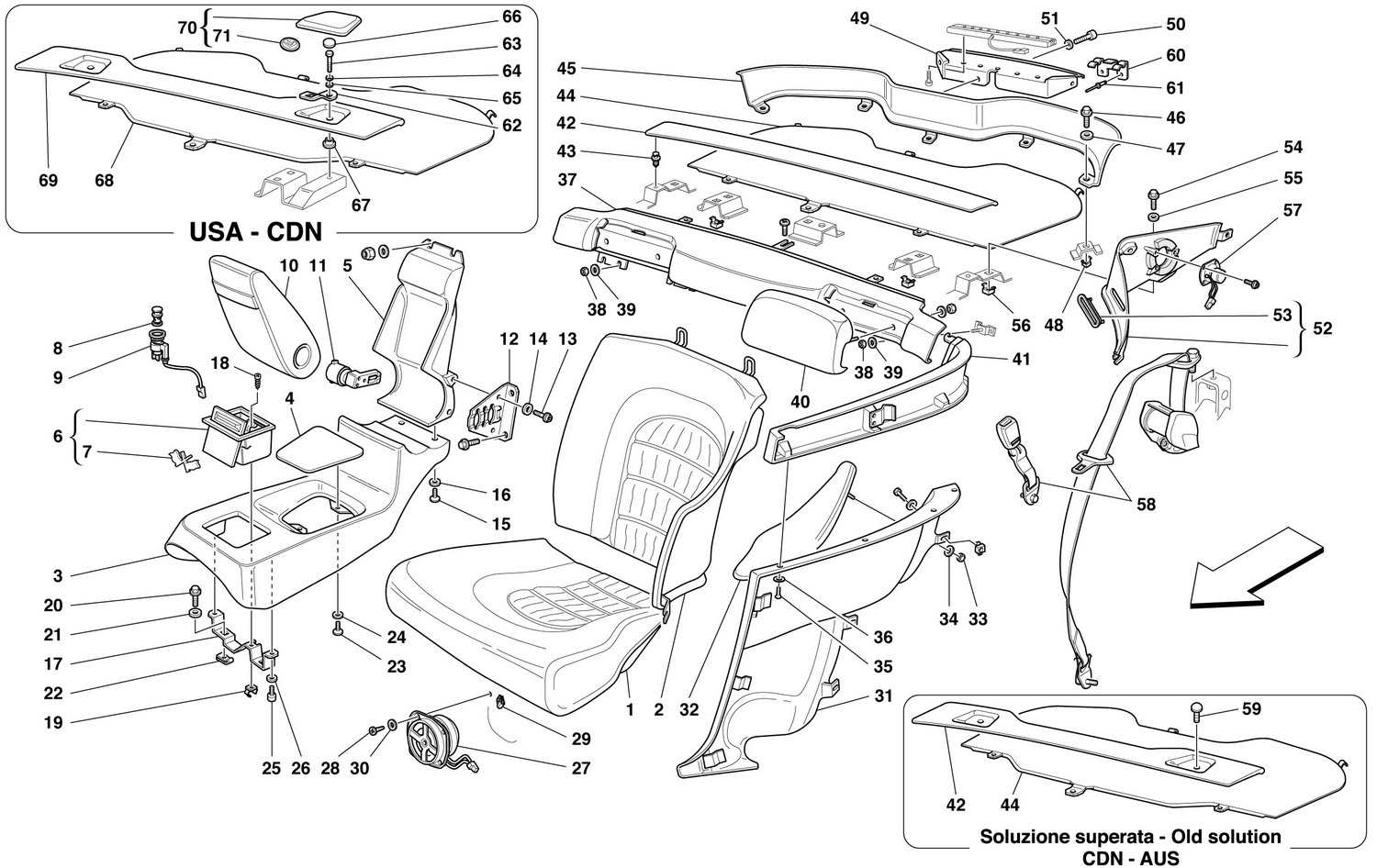

Schematic: Rear Seats And Belts
Loc
Part
Cond       Price
1
R.H. REAR CUSHION
654728.. (1) Full qty
1
L.H. REAR CUSHION
654729.. (1) Full qty
1
L.H. CUSHION UPHOLSTERY
655713.. (1) Full qty
1
R.H. CUSHION UPHOLSTERY
655712.. (1) Full qty
2
R.H. SEAT BACK TRIM
655508.. (1) Full qty
2
L.H. SEAT BACK TRIM
655509.. (1) Full qty
2
L.H. SEAT BACK
654727.. (1) Full qty
2
R.H. SEAT BACK
654726.. (1) Full qty
3
CONSOLE TRIM
654140.. (1) Full qty
3
REAR LOWER CONSOLE
654139.. (1) Full qty
4
COMPLETE MOULDING
652873.. (1) Full qty
4
LINING
654152.. (1) Full qty
5
CONSOLE TRIM
654137.. (1) Full qty
5
UPPER LOWER CONSOLE
654132.. (1) Full qty
6
CONSOLE ASH TRAY
65471400 (1) Full qty
7
FERRARI-PININFARINA MARK
64460400 (1) Full qty
8
Body for cigarette lighter
61107500 (1) Full qty
9
New       £ 17.41
226941 (1) Full qty
EL99461n
10
COMPLETO ARM-REST
652874.. (1) Full qty
10
LINING
654154.. (1) Full qty
11
PIN
65559500 (2) Full qty
12
uPPER BRACKET
65414200 (2) Full qty
13
Screw
10977624 (4) Full qty
14
WASHER
12638124 (4) Full qty
15
SCREW
14304124 (2) Full qty
16
WASHER
12638124 (2) Full qty
17
LOWER BRACKET
65287100 (1) Full qty
18
SCREW
15688175 (1) Full qty
19
BRACKET
14372574 (1) Full qty
20
SCREW
16285011 (2) Full qty
21
WASHER
12638124 (2) Full qty
22
CLIP FOR SCREW -Replaced by 14…
62764200 (2) Full qty
23
SCREW
13273872 (2) Full qty
24
WASHER
12638124 (2) Full qty
25
SCREW
13273872 (2) Full qty
26
WASHER
12638124 (2) Full qty
27
LOUD SPEAKER SUBWOOFER
174807 (2) Full qty
28
SCREW -Not for USA-
15687375 (8) Full qty
29
BRACKET -Applicable for CINA- …
14371971 (8) Full qty
30
WASHER
10519278 (8) Full qty
31
R.H. LINING
656732.. (1) Full qty
31
L.H. LOWER REAR SIDE PANEL
656728.. (1) Full qty
31
R.H. LOWER REAR SIDE PANEL
656727.. (1) Full qty
31
L.H. LINING
656731.. (1) Full qty
32
L.H. LINING
657589.. (1) Full qty
32
R.H. LINING
657588.. (1) Full qty
32
L.H. ARM REST SIDE PANEL
656498.. (1) Full qty
32
R.H. ARM REST SIDE PANEL
656497.. (1) Full qty
33
Nut
14084011 (8) Full qty
34
WASHER
64222800 (8) Full qty
35
SCREW
13274472 (8) Full qty
36
WASHER
12601177 (8) Full qty
37
REAR PANEL
655511.. (1) Full qty
37
PANEL LINING
655714.. (1) Full qty
38
Nut to fixing front and rear s…
15896470 (4) Full qty
39
WASHER
12638124 (4) Full qty
40
REAR HEAD-REST
637774.. (2) Full qty
40
HEAD-REST TRIM
640606.. (2) Full qty
41
R.H. UPPER REAR SIDE PANEL
656734.. (1) Full qty
41
L.H. UPPER REAR SIDE PANEL
656735.. (1) Full qty
41
R.H. LINING
656741.. (1) Full qty
41
L.H. LINING
656742.. (1) Full qty
42
FRONT CLAMP UNDER REAR WINDOW …
656188.. (1) Full qty
42
PANEL LINING
655572.. (1) Full qty
42
PANEL LINING
656531.. (1) Full qty
42
FRONT CLAMP UNDER REAR WINDOW …
656187.. (1) Full qty
43
New       Price on Enquiry
14188181 (3) Full qty
NT10190n
44
COVERING REAR UNDER WINDOW PAN…
656528.. (1) Full qty
44
REAR UNDER WINDOW PANEL
656526.. (1) Full qty
44
REAR UNDER WINDOW PANEL
655550.. (1) Full qty
44
COVERING REAR UNDER WINDOW PAN…
655562.. (1) Full qty
45
UNDER WINDOW REAR COVER
655551.. (1) Full qty
45
LINING
655564.. (1) Full qty
46
SCREW
16285011 (5) Full qty
47
WASHER -No longer supplied- -R…
13577701 (5) Full qty
48
NUT WITH CAGE
14647590 (5) Full qty
49
LINING
655574.. (1) Full qty
49
STOP LAMP MOULDING
655549.. (1) Full qty
50
SCREW
13273911 (3) Full qty
51
WASHER -No longer supplied- -R…
13577701 (3) Full qty
52
R.H. LINING
655568.. (1) Full qty
52
L.H. LATERAL PANEL
656186.. (1) Full qty
52
L.H. LINING
655569.. (1) Full qty
52
R.H. LATERAL PANEL
656185.. (1) Full qty
53
PLATE FOR SAFETY BELT
63734000 (2) Full qty
54
SCREW
13833614 (2) Full qty
54
SCREW
16285011 (4) Full qty
55
WASHER -No longer supplied- -R…
13577701 (6) Full qty
56
NUT WITH CAGE
14647590 (6) Full qty
57
LOUD SPEAKER MID-RANGE
155045 (2) Full qty
58
SAFETY BELTS
64999500 (1) Full qty
58
SAFETY BELTS
64999800 (1) Full qty
59
COVERED COMPLETE PLUG
644881.. (2) Full qty
60
SUPPORTING BRACKET FOR STOP LA…
65616300 (1) Full qty
61
RIVET
14641191 (2) Full qty
