Doors - Power Window And Rearview Mirror

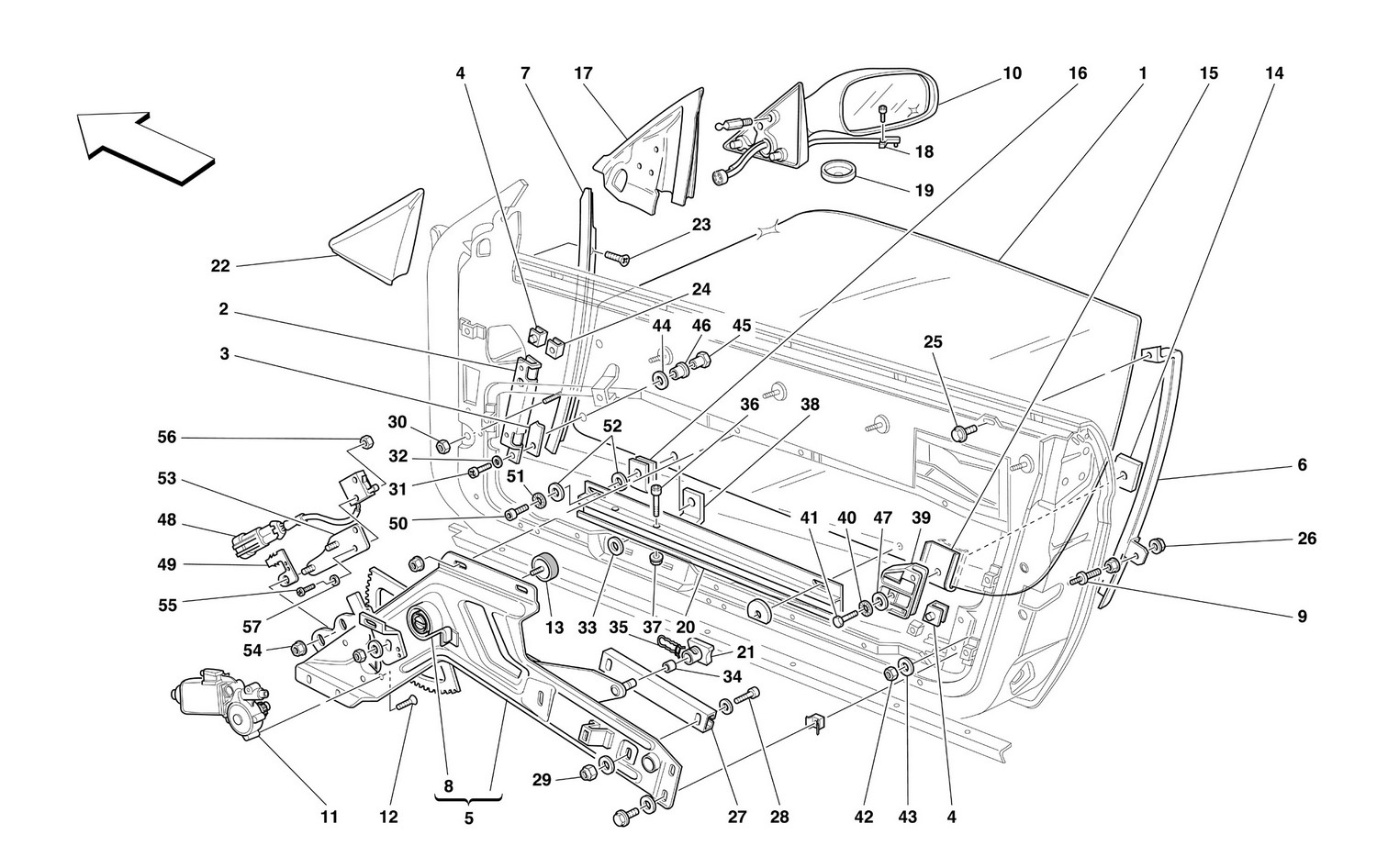

Schematic: Doors - Power Window And Rearview Mirror
Schematic: Doors - Power Window And Rearview Mirror
Loc
Part
Cond       Price
1
R.H. DOOR GLASS
65434300 (1) Full qty
1
L.H. DOOR GLASS
65434400 (1) Full qty
2
L.H. FRONT GUIDE SHOE
63768200 (1) Full qty
2
R.H. FRONT GUIDE SHOE
63768100 (1) Full qty
3
GASKET
63486900 (2) Full qty
4
CLIP
63767900 (8) Full qty
5
R.H. GLASS LIFT DEVICE
64092000 (1) Full qty
5
L.H. GLASS LIFT DEVICE
64092100 (1) Full qty
6
L.H. REAR GLASS GUIDE
63786600 (1) Full qty
6
R.H. REAR GLASS GUIDE
63786500 (1) Full qty
7
L.H. FRONT GLASS GUIDE
65438500 (1) Full qty
7
R.H. FRONT GLASS GUIDE
65438400 (1) Full qty
8
HELICOIDAL SPRING
63896300 (2) Full qty
9
DOUBLE THREADED SCREW
65224500 (2) Full qty
10
R.H. EXTERNAL REAR MIRROR
65617410 (1) Full qty
10
R.H. EXTERNAL REAR MIRROR
65434910 (1) Full qty
10
L.H. EXTERNAL REAR MIRROR
65434810 (1) Full qty
10
R.H. EXTERNAL REAR MIRROR
65434710 (1) Full qty
10
L.H. EXTERNAL REAR MIRROR
65617510 (1) Full qty
11
L.H. GLASS LIFTING MOTOR
63211900 (1) Full qty
11
R.H. GLASS LIFTING MOTOR
63211800 (1) Full qty
12
SCREW
15917904 (8) Full qty
13
STOP BUFFER
63896400 (2) Full qty
14
FIXING PLATE
63768000 (2) Full qty
15
PRE-LOADING REGULATOR
63168800 (2) Full qty
16
GASKET
63120100 (4) Full qty
17
R.H. OUTER MIRROR GASKET
65675800 (1) Full qty
17
L.H. OUTER MIRROR GASKET
65675900 (1) Full qty
18
OUTER TEMPERATURE SENSOR
63893600 (1) Full qty
19
L.H. PLUG (with sensor hole)
63715100 (1) Full qty
19
R.H. PLUG (without sensor hole…
63715000 (1) Full qty
20
L.H. GUIDE
65778100 (1) Full qty
20
R.H. GUIDE
65778000 (1) Full qty
21
SMALL BLOCK FOR GLASS GUIDE
64081100 (6) Full qty
22
L.H. MIRROR INNER MOLDING
65435400 (1) Full qty
22
R.H. MIRROR INNER MOLDING
65435300 (1) Full qty
23
SCREW
64222200 (4) Full qty
24
GASKET
63890100 (8) Full qty
25
SCREW
13836324 (2) Full qty
26
NUT
14039714 (2) Full qty
27
L.H. MIRROR INNER MOLDING
65851500 (1) Full qty
27
R.H. INNER SLIDING GUIDE
65836400 (1) Full qty
28
SCREW
14303724 (4) Full qty
29
NUT
62790300 (4) Full qty
30
NUT
14039714 (4) Full qty
31
Screw
13271811 (4) Full qty
32
WASHER
10519278 (4) Full qty
33
RUBBER
63896600 (2) Full qty
34
BUSHING
64091900 (2) Full qty
35
CLIP FOR SMALL BLOCK
64081200 (6) Full qty
36
SCREW
14303724 (4) Full qty
37
NUT
62790300 (4) Full qty
38
GLASS FIXING PLATE
65654300 (4) Full qty
39
R.H. MOVING GUIDE
63853600 (1) Full qty
39
L.H. MOVING GUIDE
63853700 (1) Full qty
40
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
41
SCREW
10903024 (2) Full qty
42
Nut
13832101 (2) Full qty
43
WASHER
12640624 (2) Full qty
44
WASHER
62798000 (4) Full qty
45
SPACER
62932800 (4) Full qty
46
BUSHING
62932900 (4) Full qty
47
WASHER
13550277 (2) Full qty
48
MICRO-SWITCH
168617 (2) Full qty
49
CLIP
162606 (2) Full qty
50
SCREW
14305424 (2) Full qty
51
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
52
WASHER
12643724 (4) Full qty
53
R.H. MICROSWITCH BRACKET
65894800 (1) Full qty
53
L.H. MICROSWITCH BRACKET
65895000 (1) Full qty
54
Nut
14084011 (2) Full qty
55
SCREW
13270811 (2) Full qty
56
Nut
16101711 (2) Full qty
57
Washer
14496101 (2) Full qty
