Front Bumper

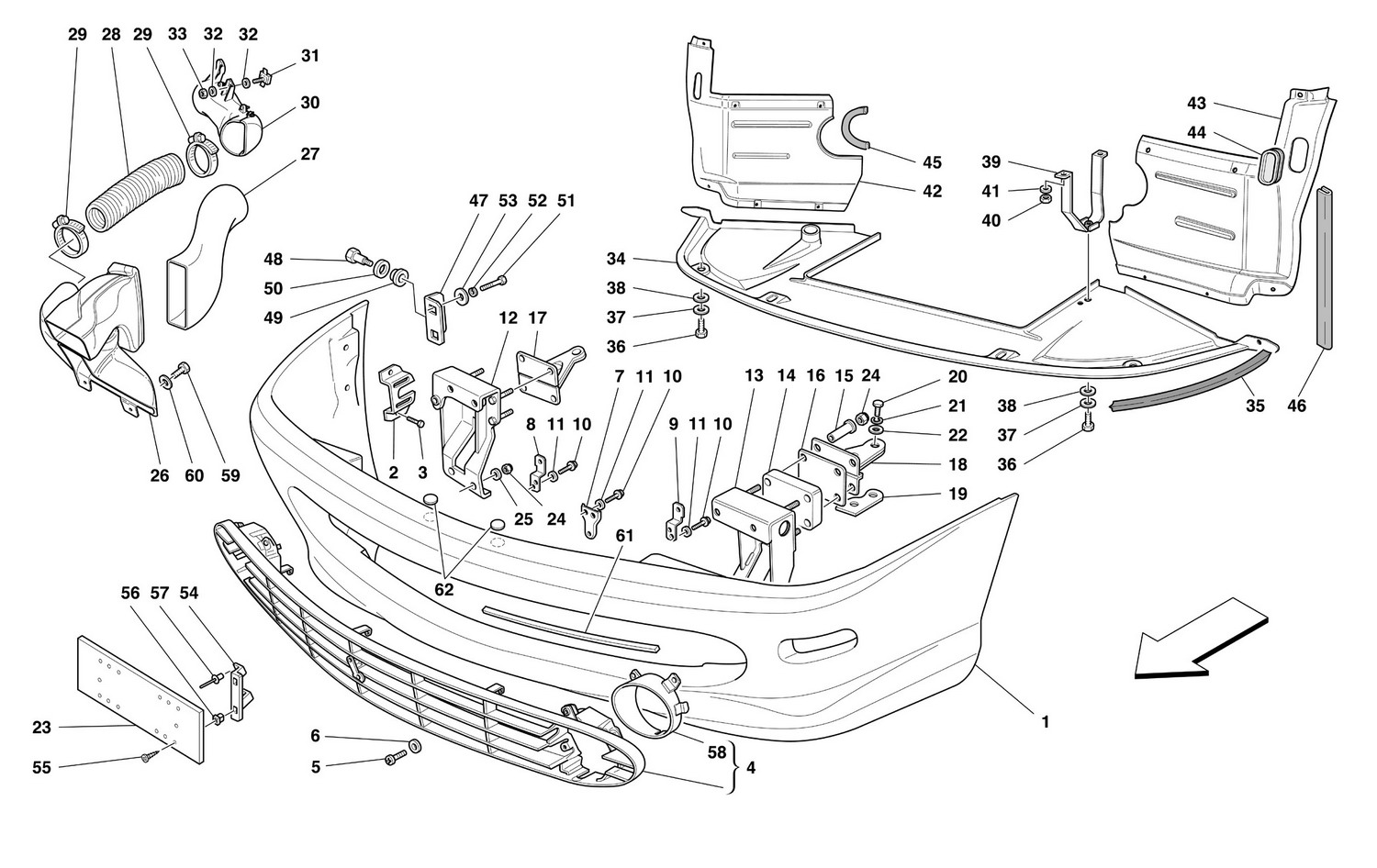

Schematic: Front Bumper
Schematic: Front Bumper
Loc
Part
Cond       Price
1
FRONT BUMPER
65616210 (1) Full qty
1
FRONT BUMPER
65679010 (1) Full qty
1
FRONT BUMPER
65284110 (1) Full qty
2
BRACKET
65282300 (2) Full qty
3
SCREW -M5 X 16-
16285127 (4) Full qty
4
FRONT GRILL
65287800 (1) Full qty
5
SCREW
13276177 (9) Full qty
6
Washer 1.6mm 6.4x11.95x1.6
10519424 (9) Full qty
7
BRACKET FOR GRID FIXING
65468300 (7) Full qty
8
R.H. GRID FIXING PLATE
65468400 (1) Full qty
9
L.H. GRID FIXING PLATE
65468500 (1) Full qty
10
Screw
10977724 (18) Full qty
11
WASHER
12638124 (18) Full qty
12
R.H. FIXED BRACKET FOR BUMPER
65282100 (1) Full qty
13
L.H. FIXED BRACKET FOR BUMPER
65282200 (1) Full qty
14
PAD
63214100 (2) Full qty
15
BUSHING
65372900 (8) Full qty
16
PLATE
63738800 (2) Full qty
17
R.H. SUPPORT
65810200 (1) Full qty
17
R.H. SUPPORT
65550100 (1) Full qty
18
L.H. SUPPORT
65550200 (1) Full qty
18
L.H. SUPPORT
65810300 (1) Full qty
19
SPACER
63215400 (8) Full qty
20
SCREW
15540624 (4) Full qty
21
WASHER
10571974 (4) Full qty
22
WASHER
13578804 (4) Full qty
23
FRONT LICENSE PLATE MOUNT
65272100 (1) Full qty
23
FRONT LICENSE PLATE MOUNT
63736400 (1) Full qty
23
FRONT PLATE FRAME
65272400 (1) Full qty
23
FRONT LICENSE PLATE MOUNT
63736300 (1) Full qty
24
Upper and Lower Front Ball Joint Nut 246
New       £ 1.05
12574521 (16) Full qty
FS10435n
25
WASHER
12646821 (8) Full qty
26
L.H. AIR INTAKE ASSEMBLY
65990900 (1) Full qty
26
R.H. AIR INTAKE ASSEMBLY
65990800 (1) Full qty
27
L.H. AIR INLET
175622 (1) Full qty
27
R.H. AIR INLET
175621 (1) Full qty
28
FRONT BRAKES COOLING PIPE
177780 (2) Full qty
29
SCREW COLLAR
13001090 (4) Full qty
30
L.H. AIR INLET
168356 (1) Full qty
30
R.H. AIR INLET
168355 (1) Full qty
31
SCREW WITH CAGE
14662695 (4) Full qty
32
Washer
12646601 (4) Full qty
33
Nut
102741 (4) Full qty
34
FRONT UNDER THE BODY SHELL
65282000 (1) Full qty
35
GASKET
65553900 (1) Full qty
36
SCREW
10902624 (6) Full qty
37
Clutch Bolt Wavy Washer 550/57…
127494 (6) Full qty
38
WASHER
12640624 (6) Full qty
39
L.H. SUPPORT
65808400 (1) Full qty
39
R.H. SUPPORT
63874600 (1) Full qty
40
Nyloc Nut 6 x 1 x 7.6mm
102948 (4) Full qty
41
WASHER
12643770 (4) Full qty
41
WASHER
12643770 (4) Full qty
42
R.H. FRONT GRAVEL GUARD
65287600 (1) Full qty
43
L.H. FRONT GRAVEL GUARD
65287700 (1) Full qty
44
CAP
62797700 (2) Full qty
45
GASKET
64517200 (2) Full qty
46
GASKET
65288000 (2) Full qty
46
GASKET
65840000 (2) Full qty
47
BUMPER LATERAL FIXING R.H. BR…
65283200 (2) Full qty
48
PIN
65228800 (2) Full qty
49
BUSHING
65228700 (2) Full qty
50
WASHER
12646970 (2) Full qty
51
SCREW
10902624 (4) Full qty
52
Clutch Bolt Wavy Washer 550/57…
127494 (4) Full qty
53
WASHER
12640624 (4) Full qty
54
R.H. BRACKET
65562100 (1) Full qty
54
L.H. BRACKET
65562200 (1) Full qty
55
SCREW
15917777 (4) Full qty
56
Block
14215480 (4) Full qty
57
RIVET -Not for UAE- -Applicabl…
14296196 (4) Full qty
58
L.H. LIGHT FRAME
65682200 (1) Full qty
58
R.H. LIGHT FRAME
65682100 (1) Full qty
59
Screw
10977724 (4) Full qty
60
WASHER
12638124 (4) Full qty
61
ANTI-VIBRATIONS
65376500 (1) Full qty
62
PROTECTION
62948300 (2) Full qty
