Central Structures And Components

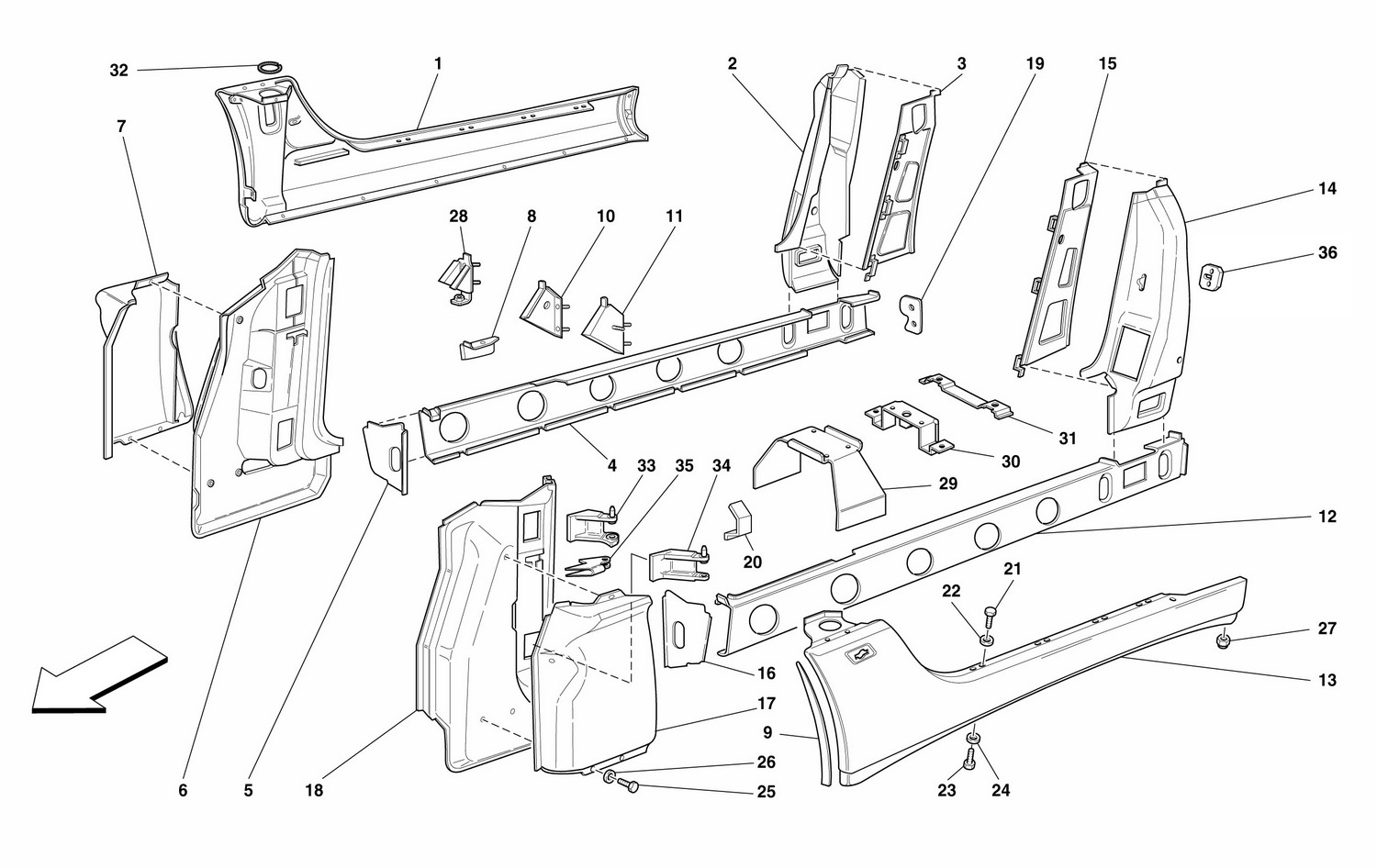

Schematic: Central Structures And Components
Loc
Part
Cond       Price
1
COVERING FOR R.H. SIDE MEMBER …
65655100 (1) Full qty
1
COVERING FOR R.H. SIDE MEMBER …
65558800 (1) Full qty
2
R.H. EXTERNAL REAR COLUMN
65575500 (1) Full qty
3
R.H. INTERNAL REAR COLUMN
66092000 (1) Full qty
4
R.H. SIDE MEMBER
63211611 (1) Full qty
5
R.H. FRONT DIAPHRAGM
63212000 (1) Full qty
6
R.H. EXTERNAL COLUMN COMPLETE…
63199800 (1) Full qty
7
R.H. FRONT EXTERNAL SIDE PANE…
63201500 (1) Full qty
8
R.H. FRONT BRACKET
63785300 (2) Full qty
9
L.H. PROTECTION
65833400 (1) Full qty
9
R.H. BRACKET FOR INSTRUMENT PA…
65833500 (1) Full qty
10
R.H. BRACKET FOR INSTRUMENT PA…
63761400 (1) Full qty
10
R.H. BRACKET FOR INSTRUMENT PA…
65833500 (1) Full qty
11
L.H. BRACKET FOR INSTRUMENT PA…
63761600 (1) Full qty
11
L.H. BRACKET FOR INSTRUMENT PA…
64041100 (1) Full qty
12
L.H. SIDE MEMBER
64041000 (1) Full qty
13
EXTERNAL COVERING FOR L.H. SID…
65558900 (1) Full qty
13
EXTERNAL COVERING FOR L.H. SID…
63211711 (1) Full qty
14
L.H. EXTERNAL REAR COLUMN
65655200 (1) Full qty
15
L.H. INTERNAL REAR COLUMN
65575600 (1) Full qty
16
L.H. FRONT DIAPHRAGM
65442900 (1) Full qty
17
L.H. FRONT EXTERNAL SIDE PANE…
63212100 (1) Full qty
18
L.H. EXTERNAL COLUMN COMPLETE…
63201600 (1) Full qty
19
R.H. REAR LOWER CARPET SHIELD…
63199900 (1) Full qty
19
L.H. REAR LOWER CARPET SHIELD…
63213600 (1) Full qty
20
L.H. FRONT BRACKET
63213700 (1) Full qty
20
R.H. FRONT BRACKET
63785600 (1) Full qty
21
SCREW
63785500 (14) Full qty
22
SCREW
13833224 (16) Full qty
23
WASHER
12638124 (12) Full qty
24
SCREW
10902380 (12) Full qty
25
WASHER
12643770 (6) Full qty
25
WASHER
12643770 (6) Full qty
26
SCREW
13833224 (6) Full qty
27
WASHER
12638124 (4) Full qty
28
Nut
13832101 (2) Full qty
29
AIR BAG UNIT FIXING BRACKET
175556 (1) Full qty
30
REAR BRACKET FOR FRONT CONSOL…
174878 (1) Full qty
31
BRACKET FOR REAR TUNNEL FIXIN…
175624 (1) Full qty
32
GASKET
64387000 (2) Full qty
33
R.H. UPPER FIXED HINGE
63189100 (1) Full qty
33
L.H. UPPER FIXED HINGE
63189200 (1) Full qty
34
L.H. LOWER FIXED HINGE
63188600 (1) Full qty
34
R.H. LOWER FIXED HINGE
63188500 (1) Full qty
35
L.H. TIE-ROD SUPPORT
180173 (1) Full qty
35
R.H. TIE-ROD SUPPORT
179961 (1) Full qty
