Air Conditioning System -Valid Till Ass. Nr. 20878-

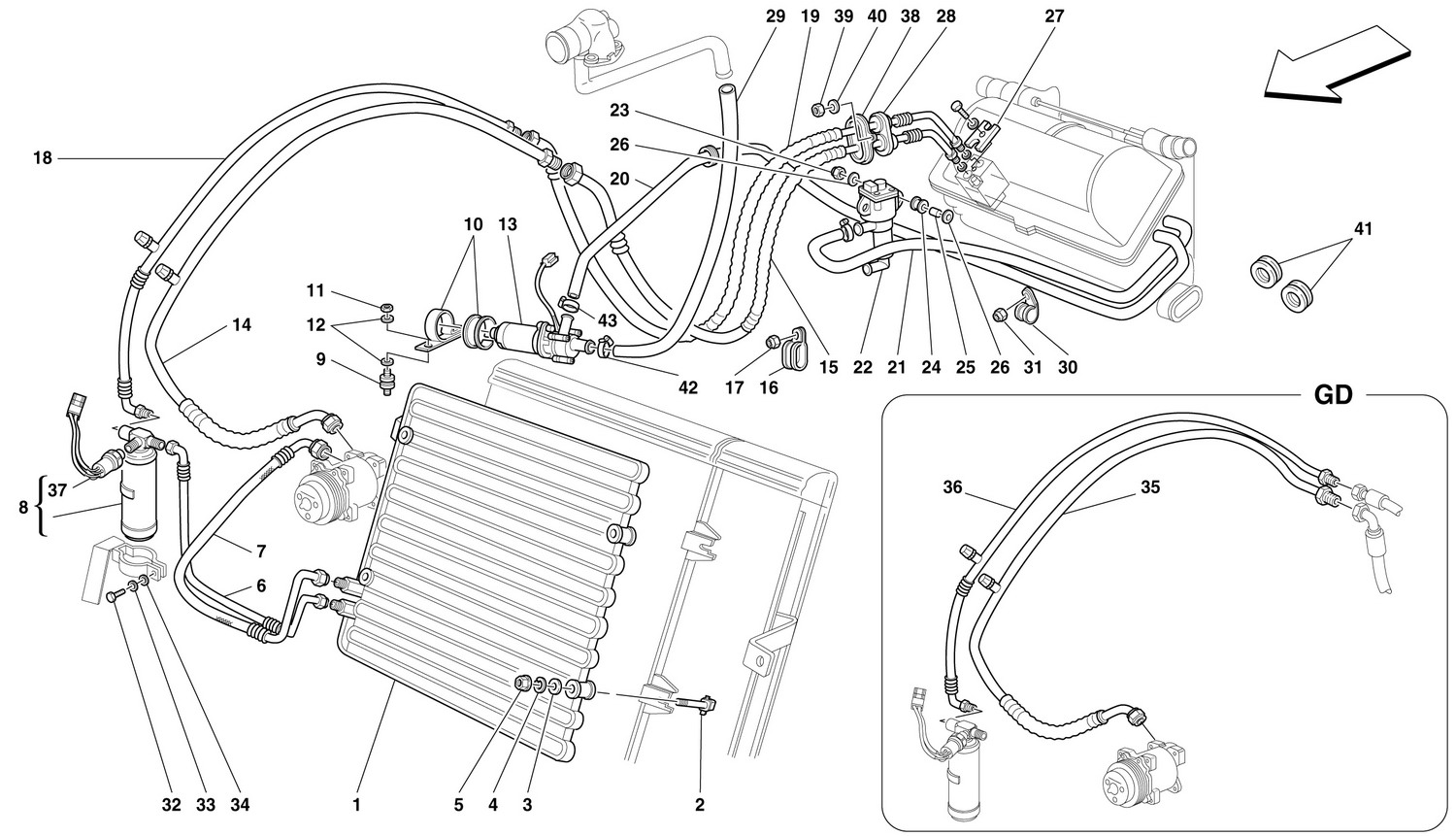

Schematic: Air Conditioning System -Valid Till Ass. Nr. 20878-
Loc
Part
Cond       Price
1
AC CONDENSER
155240 (1) Full qty
2
SCREW
14663195 (2) Full qty
3
Washer
12646601 (2) Full qty
4
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
5
NUT
15896214 (2) Full qty
6
PIPE FROM CONDENSER TO FILTER…
63933800 (1) Full qty
7
PIPE FROM COMPRESSOR TO CONDE…
63933700 (1) Full qty
8
DEHYDRATOR FILTER WITH PRESSU…
63934300 (1) Full qty
9
New       £ 18.63
142202 (2) Full qty
FU15682n
10
BRACKET FOR PUMP FIXING
63994900 (1) Full qty
11
Nut
102741 (2) Full qty
12
WASHER
14496424 (2) Full qty
13
New       Price on Enquiry
70000900 (1) Full qty
AC00448n
14
PIPE FROM HOSE TO COMPRESSOR
63933600 (1) Full qty
15
HOSE FROM EVAPORATOR TO PIPE
63933500 (1) Full qty
15
HOSE FROM EVAPORATOR TO PIPE
64238500 (1) Full qty
16
Hose fastening bracket
61712500 (1) Full qty
17
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
18
PIPE FROM DHEYDRATOR FILTER TO…
63933900 (1) Full qty
19
HOSE FROM PIPE TO EVAPORATOR
64238600 (1) Full qty
19
HOSE FROM PIPE TO EVAPORATOR
63934000 (1) Full qty
20
DELIVERY TUBE FROMP WATER PUMP…
64247200 (1) Full qty
20
DELIVERY TUBE FROMP WATER PUMP…
65294600 (1) Full qty
20
DELIVERY TUBE FROMP WATER PUMP…
65485800 (1) Full qty
20
DELIVERY TUBE FROMP WATER PUMP…
65486100 (1) Full qty
21
RETURN TUBE FROM HEATER TO VAL…
64247300 (1) Full qty
21
RETURN TUBE FROM HEATER TO VAL…
65485900 (1) Full qty
21
RETURN TUBE FROM HEATER TO VAL…
65294900 (1) Full qty
22
Electromagnetic valve
61079000 (1) Full qty
23
NUT
169180 (2) Full qty
24
New       Price on Enquiry
103549 (2) Full qty
AC00210n
25
Spacer
103550 (2) Full qty
26
WASHER
12638124 (4) Full qty
27
uPPER FLANGE
64281500 (1) Full qty
28
RUBBER PIPE-HOLDER
63961800 (1) Full qty
29
DELIVERY TUBE FROM ENGINE TO P…
63940200 (1) Full qty
29
DELIVERY TUBE FROM ENGINE TO P…
64374000 (1) Full qty
30
Bracket D. 28
61712600 (1) Full qty
31
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
32
SCREW -M6 X 20- -Fastening bra…
10902424 (1) Full qty
33
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
34
WASHER
12643724 (1) Full qty
35
PIPE FROM HOSE TO COMPRESSOR
64238700 (1) Full qty
36
PIPE FROM DHEYDRATOR FILTER TO…
64238800 (1) Full qty
37
PRESSOSTAT
64278900 (1) Full qty
38
PIPE-HOLDER FRAME
63961900 (1) Full qty
39
NUT
169180 (2) Full qty
40
WASHER
12638124 (2) Full qty
41
Cable grommet
10396980 (2) Full qty
42
CLAMP
65424800 (1) Full qty
42
CLAMP
65424800 (1) Full qty
43
CLAMP
65424800 (1) Full qty
43
CLAMP
65424800 (1) Full qty
