Hydraulic Steering Box And Serpentine - Lhd

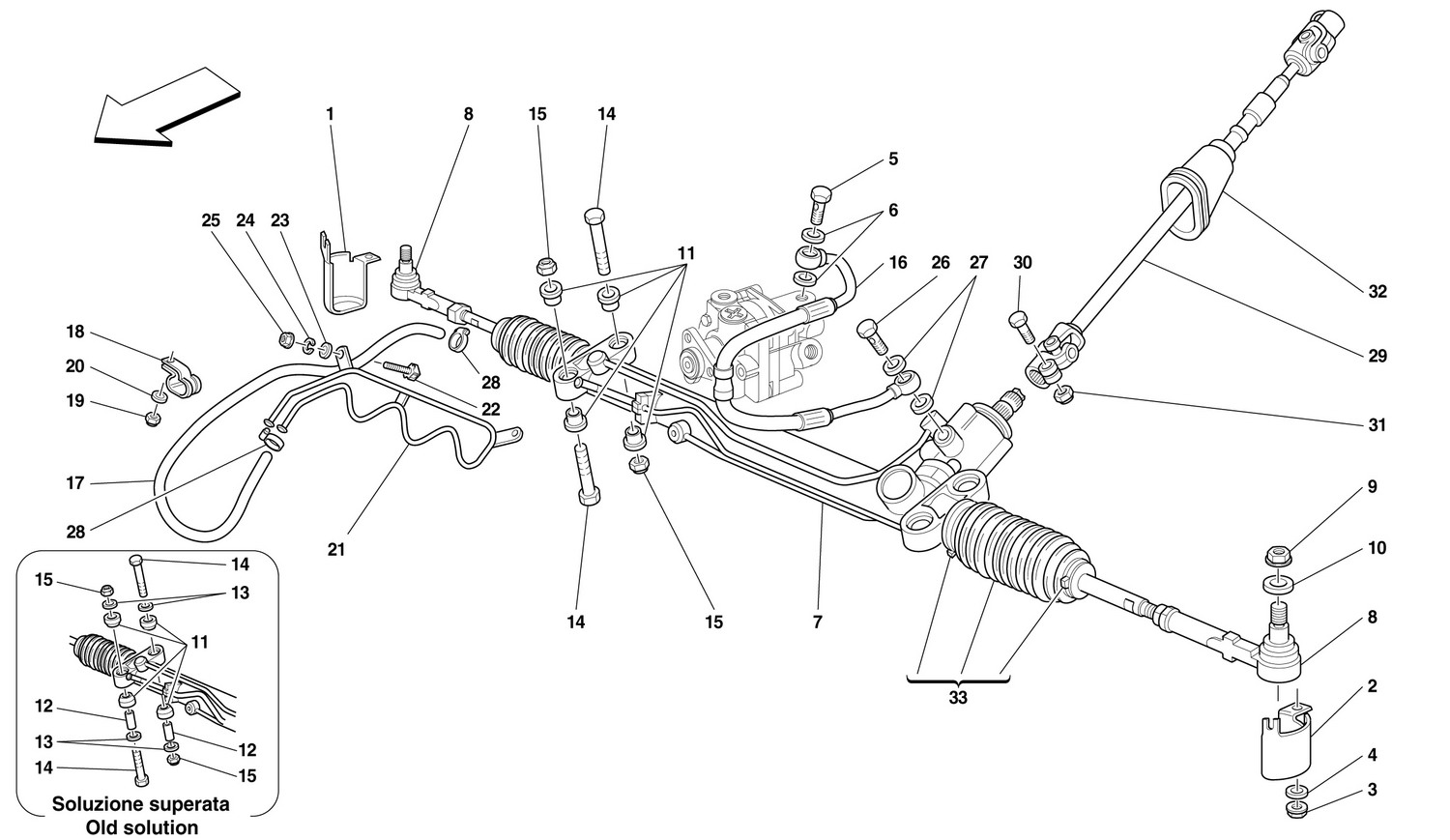

Schematic: Hydraulic Steering Box And Serpentine - Lhd
Loc
Part
Cond       Price
1
R.H. PROTECTION
150879 (1) Full qty
2
L.H. PROTECTION
150878 (1) Full qty
3
NUT
14058319 (4) Full qty
4
WASHER
10730014 (4) Full qty
5
Pipe union
10184411 (1) Full qty
6
GASKET
10278660 (2) Full qty
7
STEERING BOX
161872 (1) Full qty
8
BALL JOINT
158016 (2) Full qty
9
NUT
149807 (2) Full qty
10
WASHER
155002 (2) Full qty
11
PAD
135139 (8) Full qty
11
SILENTBLOCK
155567 (8) Full qty
12
Spacer tube
108294 (4) Full qty
13
Washer
116413 (8) Full qty
14
SCREW -M8 X 55- -No longer sup…
16287834 (4) Full qty
14
SCREW
175701 (4) Full qty
15
NUT
147985 (4) Full qty
15
Flanged Nut M8x8
14058519 (4) Full qty
16
PIPE FROM PUMP TO STEERING BO…
157350 (1) Full qty
17
RUBBER PIPE TO COOLING PIPE
155572 (1) Full qty
18
Hose fastening bracket
61712500 (1) Full qty
19
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
20
WASHER
12639724 (1) Full qty
21
REFRIGERATING COIL
156656 (1) Full qty
22
SCREW
155878 (2) Full qty
23
Washer
12646601 (2) Full qty
24
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
25
NUT
15896214 (2) Full qty
26
PIPE UNION
10185011 (1) Full qty
27
Gasket
10261060 (2) Full qty
28
COLLAR
161490 (2) Full qty
29
CARDANIC TRANSMISSION
175271 (1) Full qty
29
CARDANIC TRANSMISSION
150837 (1) Full qty
30
Screw
150427 (2) Full qty
31
Nut
150428 (2) Full qty
32
GASKET
167341 (1) Full qty
32
GASKET FOR RESIN SHIELD
151683 (1) Full qty
32
GASKET FOR STEEL SHIELD
154807 (1) Full qty
33
COMPLETE RUBBER BOOT
171702 (2) Full qty
