Driving Shaft - Connecting Rods And Pistons

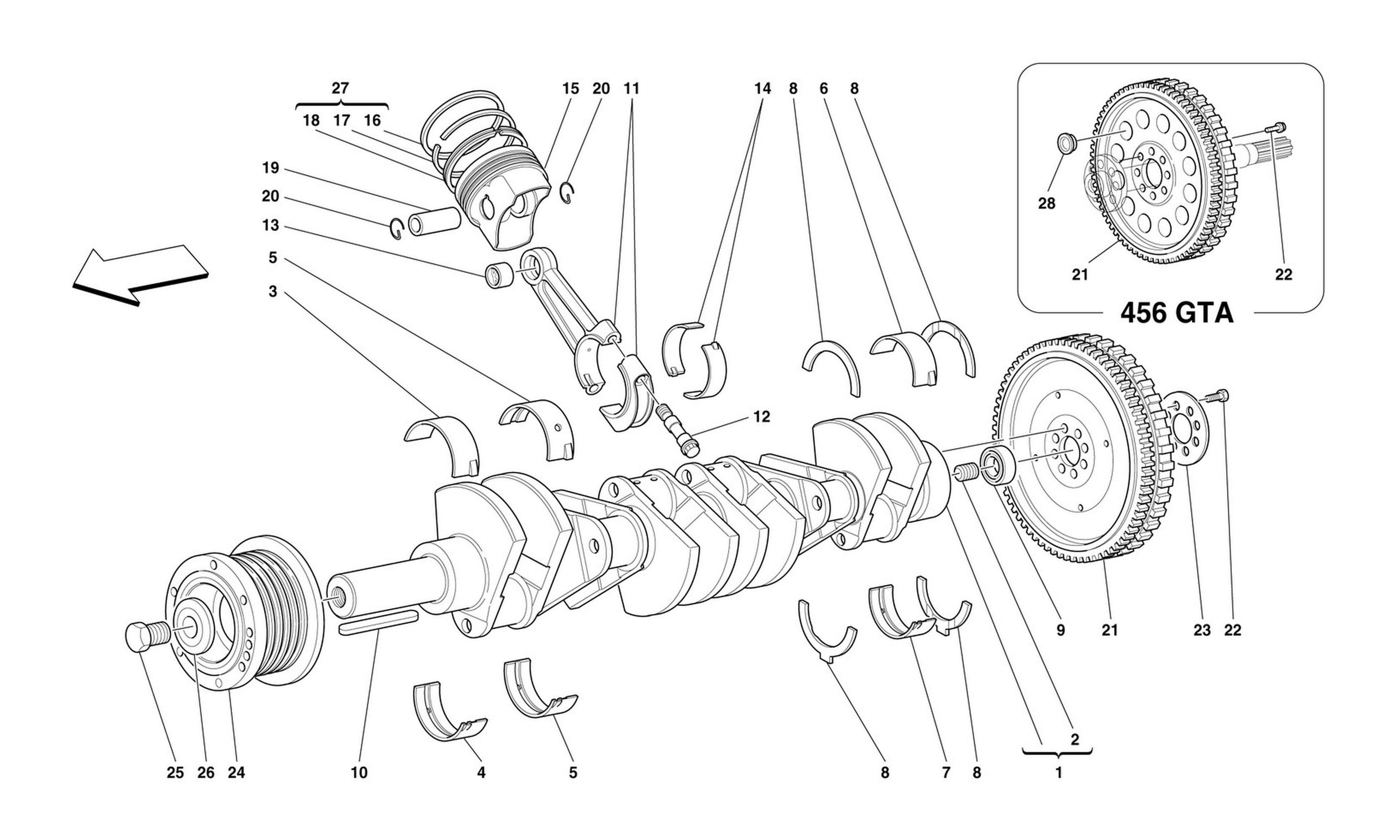

Schematic: Driving Shaft - Connecting Rods And Pistons
Schematic: Driving Shaft - Connecting Rods And Pistons
Loc
Part
Cond       Price
1
CRANKSHAFT
140501 (1) Full qty
2
Threaded Plug 20 x10mm 1.5
163528 (1) Full qty
3
Nut
- (1) Full qty
4
Nut
- (1) Full qty
5
Nut
- (10) Full qty
6
Nut
- (1) Full qty
7
Nut
- (1) Full qty
8
uPPER SHIM RING
164112 (0) Full qty
8
uPPER SHIM RING
164113 (0) Full qty
8
LOWER SHIM RING
164110 (0) Full qty
8
LOWER SHIM RING
164109 (0) Full qty
8
1st oversize 0,127 mm.
113984 (0) Full qty
8
Crank Thrust Washers STD - 2 Part Set
New       £ 39.33
100146 (2) Full qty
CC11448n
8
Thrust Washer Set 250 2nd Oversize
New       £ 29.65
100147 (0) Full qty
CC11473n
8
Do Not Use - See CC11448n
(2) Full qty
8
Crank Thrust Washer Pair 250,275 2nd Oversize 0.25mm
New       £ 30.20
100147 (0) Full qty
CC11616n
8
Thrust Washer 355 STD
New       Price on Enquiry
164111 (2) Full qty
CC11768n
8
Thrust Washer 355 STD
New       Price on Enquiry
164108 (2) Full qty
CC11770n
9
Crankshaft Rear Spigot Bearing 246 Dino
New       £ 20.15
103877 (1) Full qty
CL11532n
10
TAB
144876 (1) Full qty
11
COMPLETE CONNECTING ROD AND H…
155613 (12) Full qty
12
CONNECTING ROD TIGHTENING SCR…
150966 (24) Full qty
13
BUSHING
170047 (12) Full qty
14
Con Rod Half Bearing Std (1)
New       £ 18.10
106183 (24) Full qty
RP11438n
14
Con Rod Shell 250/275 (1) .010 Aftermarket
New       Price on Enquiry
100151 (0) Full qty
RP11456n
14
Con Rod Set .020 (330)
New       Price on Enquiry
100152 (0) Full qty
RP11498n
15
PISTON WITH RINGS
163812 (12) Full qty
15
PISTON WITH RINGS
156166 (12) Full qty
15
Piston with Rings 456
New       £ 257.70
168173 (12) Full qty
RP11534n
16
Nut
- (12) Full qty
17
Nut
- (12) Full qty
18
Nut
- (12) Full qty
19
PIN
154717 (12) Full qty
20
STOP RING
152993 (24) Full qty
21
ENGINE FLYWHEEL
170774 (1) Full qty
21
ENGINE FLYWHEEL
193051 (1) Full qty
22
SCREW
155750 (8) Full qty
22
Flywheel Bolt
103875 (8) Full qty
23
Flywheel Washer
103876 (1) Full qty
24
TORSION DAMPER
175690 (1) Full qty
24
Front Torsion Damper Pulley
168565 (1) Full qty
25
SCREW
140925 (1) Full qty
26
WASHER
140922 (1) Full qty
27
PISTONS RINGS SET
159987 (12) Full qty
27
PISTONS RINGS SET
173535 (12) Full qty
28
PLUG
111540 (6) Full qty
