Doors - Opening Control And Hinges

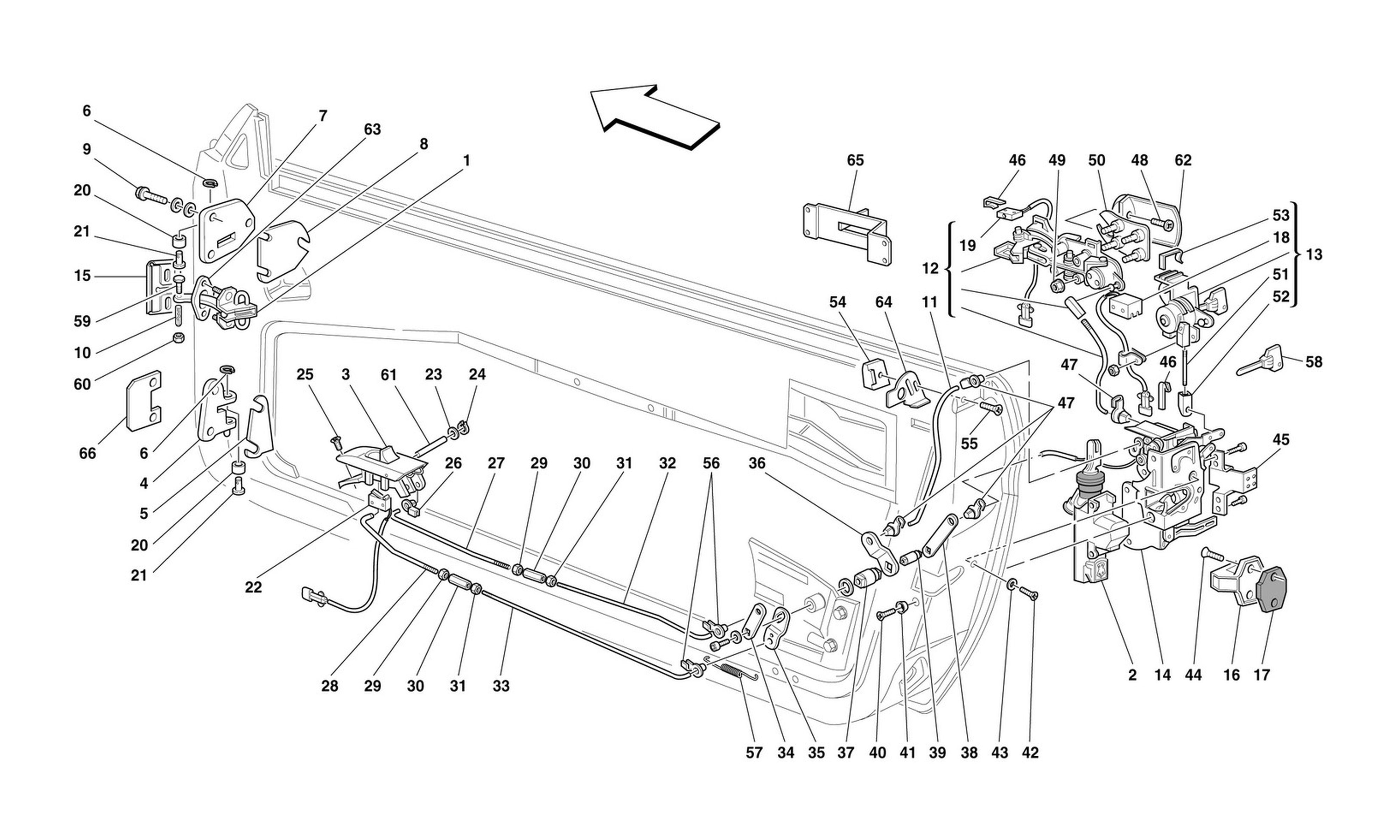

Schematic: Doors - Opening Control And Hinges
Schematic: Doors - Opening Control And Hinges
Loc
Part
Cond       Price
1
Door Arrestor 550
New       £ 62.72
65195200 (2) Full qty
BW99341n
2
CENTRALIZED LOCKING DEVICE
63487400 (2) Full qty
3
L.H. INNER HANDLE FOR DOOR OP…
63724900 (1) Full qty
3
R.H. INNER HANDLE FOR DOOR OP…
63724800 (1) Full qty
4
L.H. LOWER MOBILE HINGE
63188800 (1) Full qty
4
R.H. LOWER MOBILE HINGE
63188700 (1) Full qty
5
LOWER THICKNESS
65404200 (2) Full qty
6
SNAP RING
11087776 (4) Full qty
7
R.H. UPPER MOBILE HINGE
63189300 (1) Full qty
7
L.H. UPPER MOBILE HINGE
63189400 (1) Full qty
8
UPPER THICKNESS
63747100 (2) Full qty
9
SCREW
13839224 (10) Full qty
10
PIN
62791700 (2) Full qty
11
R.H. TIE ROD
63168000 (1) Full qty
11
L.H. TIE ROD
63888500 (1) Full qty
12
L.H. COMPLETE OUTER DOOR HAND…
63852500 (1) Full qty
12
R.H. COMPLETE OUTER DOOR HAND…
63852400 (1) Full qty
13
R.H. COMPLETE LOCK CONTROL BL…
63180300 (1) Full qty
13
L.H. COMPLETE LOCK CONTROL BL…
63180400 (1) Full qty
14
L.H. COMPLETE DOOR LOCK
63497500 (1) Full qty
14
R.H. COMPLETE DOOR LOCK
63497400 (1) Full qty
15
L.H. SMALL PLATE
63895300 (1) Full qty
15
R.H. SMALL PLATE
63895200 (1) Full qty
16
DOOR CLOSING STRIKER
63157000 (2) Full qty
17
PLATE
63877300 (2) Full qty
18
MICROSWITCH
63859200 (2) Full qty
19
OUTER DOOR HANDLE MICRO-SWITCH…
63859800 (2) Full qty
20
BUSHING
63189600 (4) Full qty
21
PIN
63189700 (4) Full qty
22
INNER DOOR HANDLE MICRO-SWITC…
63724400 (2) Full qty
23
WASHER
64203800 (4) Full qty
24
Seeger
11087476 (2) Full qty
25
SCREW
13299477 (2) Full qty
26
TIE ROD RETAINING CLIP
14578080 (2) Full qty
27
SAFETY LOCK FRONT ROD FOR DOOR…
63722500 (2) Full qty
28
HANDLE CONNECTION FRONT ROD
63723100 (2) Full qty
29
Nut
10794011 (4) Full qty
30
ADJUSTMENT SLEEVE
63402100 (4) Full qty
31
L.H. thread nut
10791111 (4) Full qty
32
SAFETY LOCK REAR ROD FOR DOOR
63722600 (2) Full qty
33
HANDLE CONNECTION REAR ROD
63723200 (2) Full qty
34
HANDLE PRIMARY LEVER
63167400 (2) Full qty
34
HANDLE PRIMARY LEVER
65100500 (2) Full qty
35
SEFETY DEVICE PRIMARY LEVER
63167800 (2) Full qty
36
SAFETY DEVICE SECONDARY LEVER
63167900 (2) Full qty
37
SAFETY DEVICE TRANSMISSION PIN…
63168600 (2) Full qty
38
HANDLE SECONDARY LEVER
63167500 (2) Full qty
39
HANDLE TRANSMISSION PIN
65100900 (2) Full qty
39
HANDLE TRANSMISSION PIN
63158500 (2) Full qty
40
SCREW
14441582 (2) Full qty
41
WASHER
62794700 (2) Full qty
42
SCREW
13276077 (2) Full qty
43
WASHER
13550277 (2) Full qty
44
SCREW
14442034 (4) Full qty
45
BRACKET FOR MICRO-SWITCH FIXI…
177879 (2) Full qty
45
BRACKET FOR MICRO-SWITCH FIXIN…
155323 (2) Full qty
46
CLIP
155978 (6) Full qty
47
TIE-ROD RETAINER CLIP
64215300 (8) Full qty
48
SCREW
62947900 (2) Full qty
49
Nut
14084011 (8) Full qty
50
OUTER HANDLE SUPPORT
63158010 (2) Full qty
51
TIE ROD
63772500 (2) Full qty
52
FLEXIBLE JOINT
62794000 (2) Full qty
53
CLIP
63179700 (2) Full qty
54
R.H. SMALL BLOCK
63758800 (1) Full qty
54
L.H. SMALL BLOCK
63758900 (1) Full qty
55
Screw to fix. support plate li…
15643978 (2) Full qty
56
TIE ROD RETAINING CLIP
14578080 (4) Full qty
57
Door Spring 550
New       £ 17.77
64074200 (2) Full qty
BW99360n
58
BLANK KEY
164089 (1) Full qty
59
SCREW
10903280 (2) Full qty
60
Nut
102741 (2) Full qty
61
PIN
64203900 (2) Full qty
62
HANDLE MOVABLE PART
63852610 (2) Full qty
63
SMALL PLATE
65321600 (2) Full qty
64
R.H. REINFORCEMENT
65669300 (1) Full qty
64
L.H. REINFORCEMENT
65669400 (1) Full qty
65
R.H. AIR PROTECTION PLATE
63893100 (1) Full qty
65
L.H. AIR PROTECTION PLATE
63893000 (1) Full qty
66
R.H. LOWER PLATE
63747900 (1) Full qty
66
L.H. LOWER PLATE
63748000 (1) Full qty
