Doors - Framework And Coverings

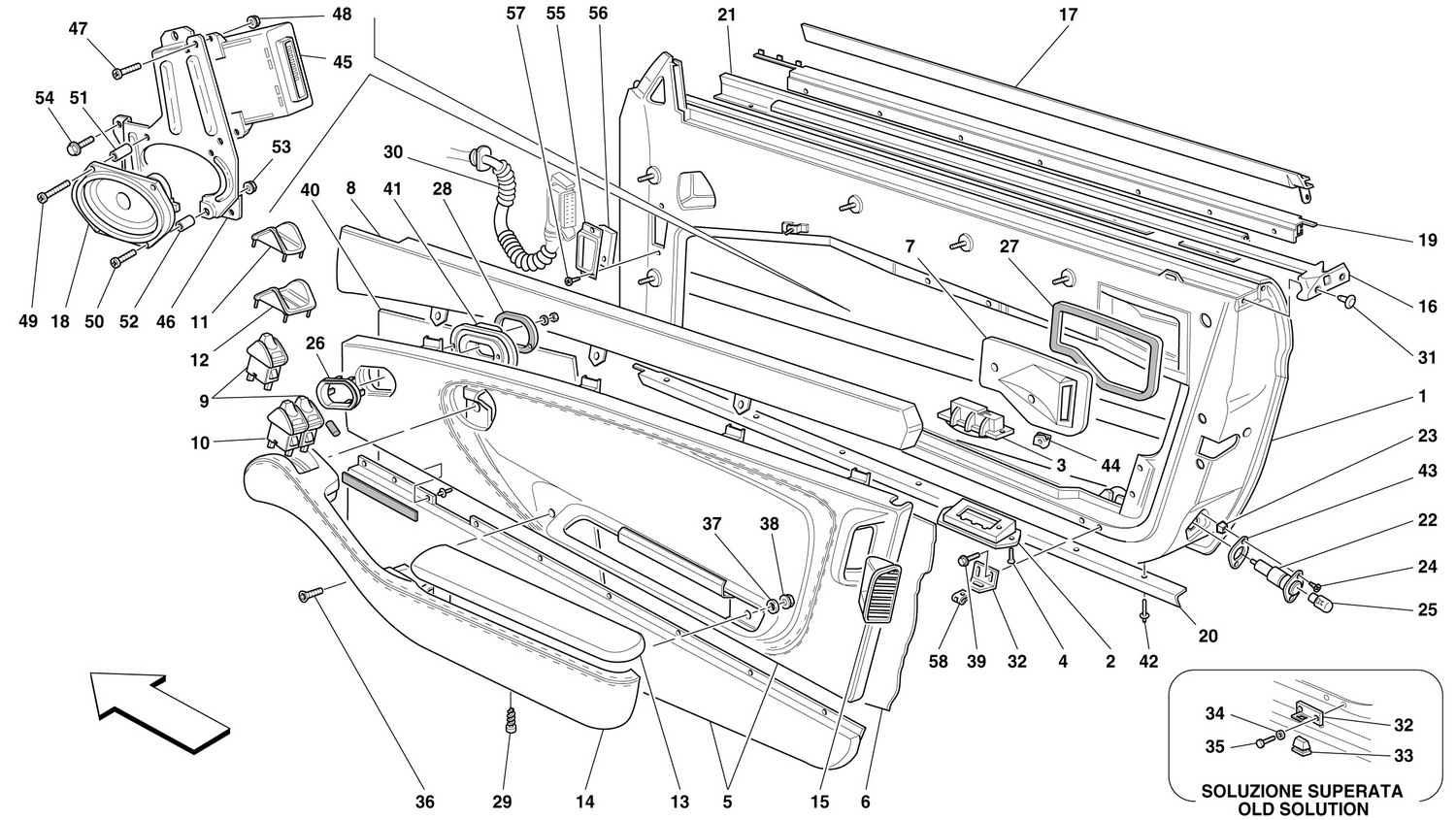

Schematic: Doors - Framework And Coverings
Schematic: Doors - Framework And Coverings
Loc
Part
Cond       Price
1
L.H. DOOR FRAME
63481700 (1) Full qty
1
R.H. DOOR FRAME
63481600 (1) Full qty
1
R.H. DOOR FRAME
64396300 (1) Full qty
1
L.H. DOOR FRAME
64396400 (1) Full qty
2
Frame
60842000 (2) Full qty
3
Roof lamp
65088400 (2) Full qty
3
Courtesy lamp
60842100 (2) Full qty
4
SCREW
15901575 (4) Full qty
6
R.H. WATER PROTECTION CLOTH
63771400 (1) Full qty
6
L.H. WATER PROTECTION CLOTH
63771500 (1) Full qty
7
L.H. REAR AIR INLET
63724000 (1) Full qty
7
R.H. REAR AIR INLET
63723900 (1) Full qty
8
COVERED L.H. UPPER ENCLOSURE
637183.. (1) Full qty
8
R.H. LINING
648452.. (1) Full qty
8
COVERED R.H. UPPER ENCLOSURE
637182.. (1) Full qty
8
L.H. LINING
648453.. (1) Full qty
9
R.H. SWITCH FOR GLASS LIFT
153090 (2) Full qty
9
R.H. SWITCH FOR GLASS LIFT
171061 (2) Full qty
10
L.H. SWITCH FOR GLASS LIFT
171058 (1) Full qty
10
L.H. SWITCH FOR GLASS LIFT
153089 (1) Full qty
11
PASSENGER SIDE SWITCH HOLDER …
63727100 (1) Full qty
12
PILOT SIDE SWITCH HOLDER PLAT…
63727300 (1) Full qty
13
COVERED R.H. DOOR ARM-REST
637194.. (1) Full qty
13
COVERED L.H. DOOR ARM-REST
653433.. (1) Full qty
13
L.H. LINING
648455.. (1) Full qty
13
COVERED R.H. DOOR ARM-REST
653416.. (1) Full qty
13
R.H. LINING
648454.. (1) Full qty
13
COVERED L.H. DOOR ARM-REST
637195.. (1) Full qty
14
R.H. LINING
648456.. (1) Full qty
14
COVERED L.H. HANDLE
637205.. (1) Full qty
14
COVERED L.H. HANDLE
642586.. (1) Full qty
14
COVERED R.H. HANDLE
637204.. (1) Full qty
14
COVERED R.H. HANDLE
642581.. (1) Full qty
14
L.H. LINING
648457.. (1) Full qty
14
COVERED R.H. HANDLE
653419.. (1) Full qty
14
COVERED L.H. HANDLE
653454.. (1) Full qty
14
COVERED R.H. HANDLE
653450.. (1) Full qty
14
R.H. LINING
648458.. (1) Full qty
14
COVERED L.H. HANDLE
653430.. (1) Full qty
14
L.H. LINING
648459.. (1) Full qty
15
L.H. AIR DIFFUSOR OPENING
63850500 (1) Full qty
15
R.H. AIR DIFFUSOR OPENING
63850400 (1) Full qty
16
L.H. INNER GLASS SCRAPER
63488700 (1) Full qty
16
R.H. INNER GLASS SCRAPER
63488600 (1) Full qty
17
L.H. EXTERNAL GLASS SCRAPER
63498100 (1) Full qty
17
R.H. EXTERNAL GLASS SCRAPER
63498000 (1) Full qty
18
LOUD SPEAKER WOOFER
157408 (2) Full qty
19
L.H. OUTER GASKET SUPPORT
63733400 (1) Full qty
19
R.H. OUTER GASKET SUPPORT
63733300 (1) Full qty
20
L.H. OUTER LOWER GASKET
63488300 (1) Full qty
20
R.H. OUTER LOWER GASKET
63758200 (1) Full qty
21
R.H. INNER GASKET SUPPORT
63733500 (1) Full qty
21
L.H.INNER GASKET SUPPORT
63733600 (1) Full qty
22
Open
60788100 (2) Full qty
23
BLOCK
14115580 (4) Full qty
24
SCREW
15901475 (4) Full qty
25
Lamp
101525 (2) Full qty
26
FRAME
63723800 (2) Full qty
27
GASKET
63724100 (2) Full qty
28
GASKET
63723700 (2) Full qty
29
SCREW
15687401 (2) Full qty
30
RUBBER BOOT
155396 (2) Full qty
31
FIXING BUTTON
62955400 (4) Full qty
31
FIXING BUTTON
63944900 (4) Full qty
32
BRACKET
63718100 (6) Full qty
32
BRACKET
65297600 (6) Full qty
33
NUT SCREW
62765000 (6) Full qty
34
WASHER
13550077 (12) Full qty
35
SCREW
15642601 (12) Full qty
36
SCREW
64230600 (2) Full qty
37
WASHER
12643724 (2) Full qty
38
NUT
15896214 (2) Full qty
39
Screw
13833171 (12) Full qty
40
L.H. FRONT WATER PROTECTION C…
64061100 (1) Full qty
40
R.H. FRONT WATER PROTECTION C…
64061000 (1) Full qty
41
R.H. FRONT AIR INLET
63723500 (1) Full qty
41
L.H. FRONT AIR INLET
63723600 (1) Full qty
42
RIVET
62764000 (16) Full qty
43
GASKET
140576 (2) Full qty
44
Clip for underp'oaf lamp
60841900 (4) Full qty
45
GLASS LIFTING CONTROL ELECTRIC…
153096 (2) Full qty
46
L.H. CONTROL UNIT FIXING BRACK…
65297500 (1) Full qty
46
R.H. CONTROL UNIT FIXING BRACK…
65297400 (1) Full qty
47
SCREW -M5 X 12- -Applicable up…
13274077 (4) Full qty
48
Nut
13831801 (4) Full qty
49
Screw
13274872 (4) Full qty
50
Screw
13274672 (4) Full qty
51
SPACER
65297200 (4) Full qty
52
SPACER
65297300 (4) Full qty
53
Nut
13831801 (8) Full qty
54
SCREW
13833614 (8) Full qty
55
PLATE
63791200 (2) Full qty
56
CABLE BUSHING
63791000 (2) Full qty
57
SCREW
13271914 (4) Full qty
58
CLIP FOR SCREW -Replaced by 14…
62764200 (6) Full qty
