Central Structures And Components

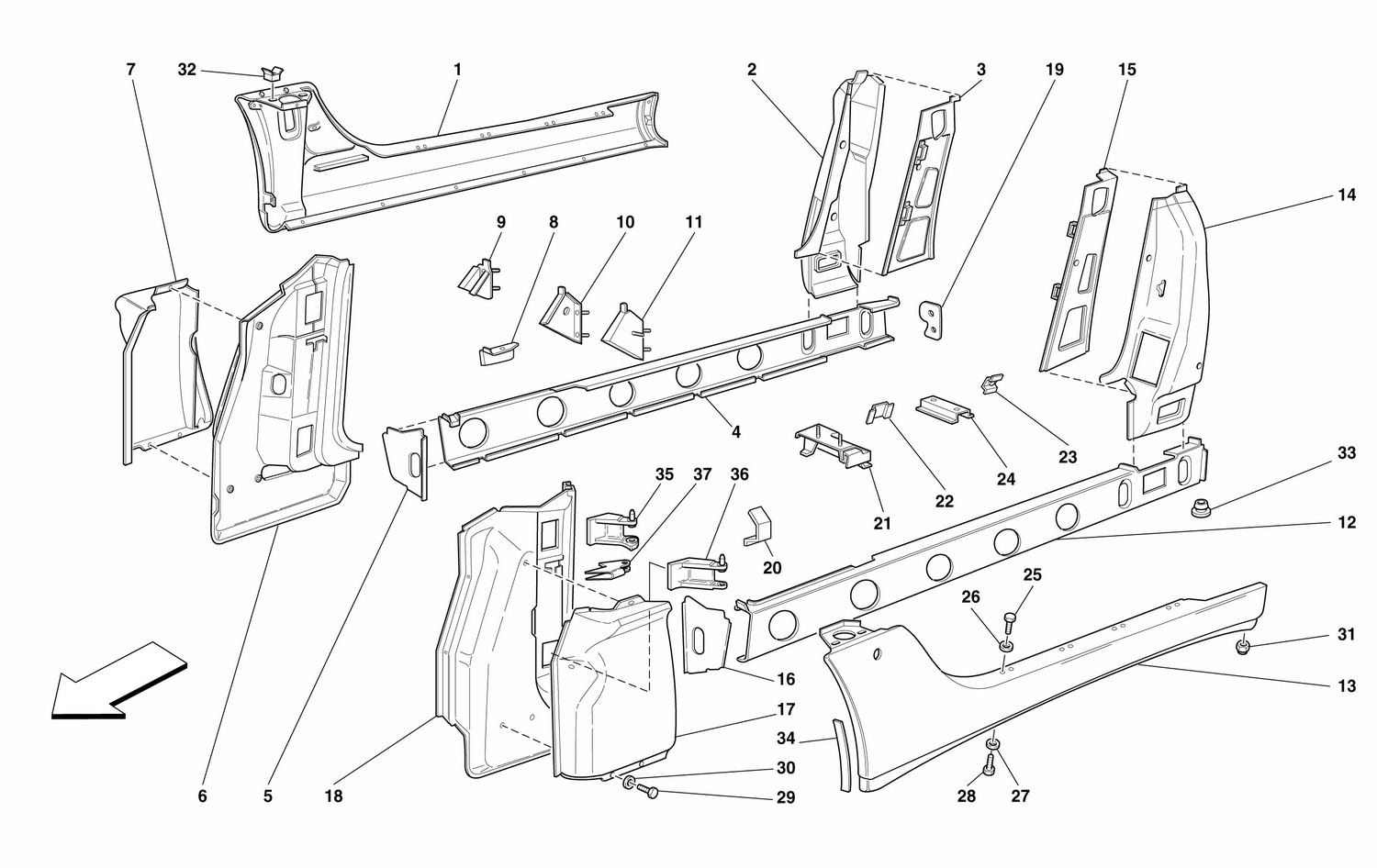

Schematic: Central Structures And Components
Schematic: Central Structures And Components
Loc
Part
Cond       Price
1
EXTERNAL COVERING FOR R.H. SID…
63145400 (1) Full qty
1
EXTERNAL COVERING FOR R.H. SID…
64463100 (1) Full qty
2
R.H. EXTERNAL REAR COLUMN
64973100 (1) Full qty
3
R.H. INTERNAL REAR COLUMN
62791000 (1) Full qty
4
R.H. SIDE MEMBER
63211611 (1) Full qty
5
R.H. FRONT DIAPHRAGM
63212000 (1) Full qty
6
R.H. EXTERNAL COLUMN COMPLETE…
63199800 (1) Full qty
7
R.H. FRONT EXTERNAL SIDE PANE…
63201500 (1) Full qty
8
R.H. FRONT BRACKET
63785300 (2) Full qty
9
BRACKET FOR INSTRUMENT PANEL F…
63794900 (1) Full qty
9
BRACKET FOR INSTRUMENT PANEL F…
64041200 (1) Full qty
10
L.H. BRACKET FOR INSTRUMENT PA…
64041100 (1) Full qty
10
R.H. BRACKET FOR INSTRUMENT PA…
63761400 (1) Full qty
11
L.H. SIDE MEMBER
64041000 (1) Full qty
11
L.H. BRACKET FOR INSTRUMENT PA…
63761600 (1) Full qty
12
EXTERNAL COVERING FOR L.H. SID…
63211711 (1) Full qty
13
EXTERNAL COVERING FOR L.H. SID…
63145500 (1) Full qty
13
EXTERNAL COVERING FOR L.H. SID…
64463200 (1) Full qty
14
L.H. EXTERNAL REAR COLUMN
63858000 (1) Full qty
15
L.H. INTERNAL REAR COLUMN
62791100 (1) Full qty
16
L.H. FRONT EXTERNAL SIDE PANE…
63212100 (1) Full qty
17
L.H. EXTERNAL COLUMN COMPLETE…
63201600 (1) Full qty
18
R.H. REAR LOWER CARPET SHIELD…
63199900 (1) Full qty
19
L.H. REAR LOWER CARPET SHIELD…
63213600 (1) Full qty
19
L.H. FRONT BRACKET
63213700 (1) Full qty
20
L.H. FRONT AND REAR BRACKET
64307000 (2) Full qty
20
R.H. FRONT BRACKET
63785600 (1) Full qty
20
SCREW
63785500 (1) Full qty
21
INTERMEDIATE BRACKET
63785700 (1) Full qty
22
R.H. REAR BRACKET
63786300 (2) Full qty
23
BRACKET
63785900 (2) Full qty
24
REAR BRACKET
63786200 (1) Full qty
25
SCREW
13833224 (16) Full qty
26
WASHER
12638124 (16) Full qty
27
SCREW
10902380 (12) Full qty
28
WASHER
12643770 (12) Full qty
28
WASHER
12643770 (12) Full qty
29
SCREW
13833224 (6) Full qty
30
WASHER
12638124 (6) Full qty
31
Nut
13832101 (4) Full qty
32
Caget nut
60758600 (4) Full qty
33
Plug to close hole under frame…
62446300 (4) Full qty
34
L.H. PROTECTION
65833400 (1) Full qty
34
R.H. BRACKET FOR INSTRUMENT PA…
65833500 (1) Full qty
35
R.H. UPPER FIXED HINGE
63189100 (1) Full qty
35
L.H. UPPER FIXED HINGE
63189200 (1) Full qty
36
L.H. LOWER FIXED HINGE
63188600 (1) Full qty
36
R.H. LOWER FIXED HINGE
63188500 (1) Full qty
37
TIE-ROD SUPPORT
63762600 (2) Full qty
