Pedals -For Lhd-

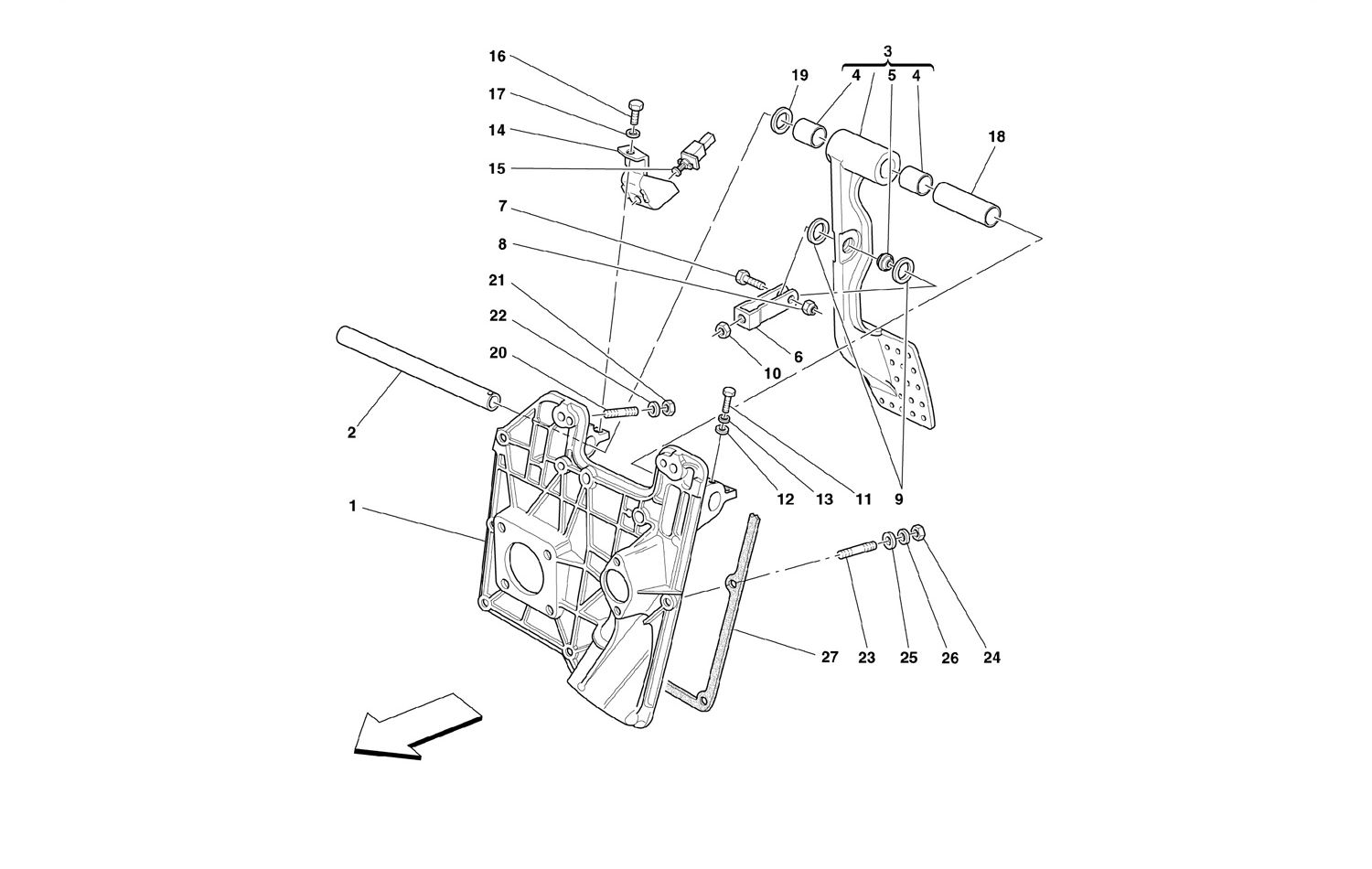

Schematic: Pedals -For Lhd-
Loc
Part
Cond       Price
1
PEDAL BOARD MOUNTING
176464 (1) Full qty
2
PEDALS MOUNTING PIN
176466 (1) Full qty
3
BRAKE PEDAL
196272 (1) Full qty
3
COMPLETE BRAKE PEDAL
196791 (1) Full qty
4
Bush
103163 (2) Full qty
5
BALL-JOINT
176475 (1) Full qty
6
FORK
199754 (1) Full qty
7
Screw
16043724 (1) Full qty
8
NUT
147985 (1) Full qty
9
PLASTIC WASHER
176522 (2) Full qty
10
NUT
16102314 (1) Full qty
11
SCREW -M6 X 20- -Fastening bra…
10902424 (1) Full qty
12
Washer 1.6mm 6.4x11.95x1.6
10519424 (1) Full qty
13
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
14
SWITCH MOUNTING
219558 (1) Full qty
15
Push Button Switch - Pedal Boa…
201957 (1) Full qty
16
SCREW
16043224 (1) Full qty
17
Washer
106852 (1) Full qty
18
SHIM
176918 (1) Full qty
19
WASHER
178340 (1) Full qty
19
Shim, 1,2 mm. thick
113834 (1) Full qty
19
Shim, 1,3 mm. thick
113835 (1) Full qty
19
Shim, 1,4 mm. thick
113836 (1) Full qty
20
STUD
13516924 (6) Full qty
21
NUT
104030 (6) Full qty
22
Washer
12646724 (6) Full qty
23
STUD BOLT
13517024 (2) Full qty
24
NUT
16102377 (2) Full qty
25
Washer
13550321 (2) Full qty
26
Do Not Use - See GE07667n
12601374 (2) Full qty
26
New       £ 0.12
12601374 (2) Full qty
CH11905n
27
PEDAL BOARD MOUNTING GASKET
176524 (1) Full qty
