Rear Bumper

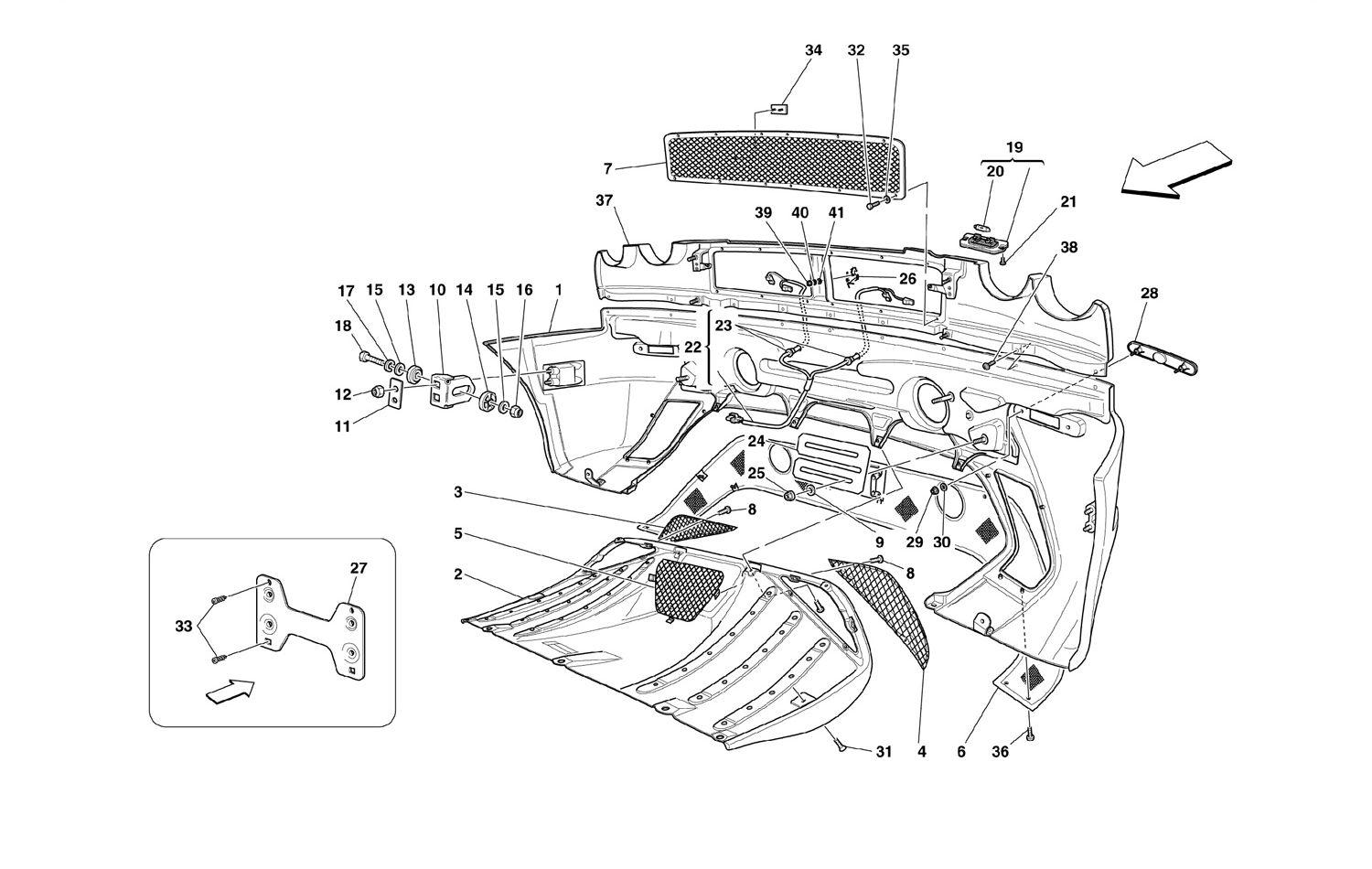

Schematic: Rear Bumper
Loc
Part
Cond       Price
1
REAR BUMPER
69828810 (1) Full qty
2
REAR BUMPER LOWER TRIM
80195100 (1) Full qty
3
RH. REAR GRILLE
80195600 (1) Full qty
4
LH. REAR GRILLE
80195700 (1) Full qty
5
CENTRAL GRILLE
80861400 (1) Full qty
6
LOWER GRILLE
80267200 (1) Full qty
7
UPPER GRILLE
80635500 (1) Full qty
8
SCREW -M4 X 12-
80365900 (8) Full qty
9
WASHER
12644301 (8) Full qty
10
LATERAL LH. BUMPER MOUNTING BR…
80582400 (2) Full qty
11
SHIM
80690400 (5) Full qty
11
SHIM
80690500 (5) Full qty
12
NUT
104030 (4) Full qty
13
EXTERNAL SMALL BLOCK
62128200 (2) Full qty
14
INTERNAL SMALL BLOCK
62128300 (2) Full qty
15
Washer
12646801 (4) Full qty
16
NUT
104114 (2) Full qty
17
New       £ 0.12
12601474 (2) Full qty
CC11464n
17
New       Price on Enquiry
12601474 (2) Full qty
CC11574n
18
Screw
11307021 (2) Full qty
19
New       Price on Enquiry
186180 (2) Full qty
ET02468n
19
Used       Price on Enquiry
186180 (2) Full qty
ET02468u
20
12V-5W lamp
10857790 (1) Full qty
21
Screw
13271911 (4) Full qty
22
PLATE LIGHT CABLES
182985 (1) Full qty
23
CABLE GROMMET
10399280 (2) Full qty
24
LH. SHIM
80690100 (5) Full qty
24
RH. SHIM
80690000 (5) Full qty
24
LH. SHIM
80690300 (5) Full qty
24
RH. SHIM
80690200 (5) Full qty
25
NUT
104114 (8) Full qty
26
CAVALLINO RAMPANTE BADGE
80610400 (1) Full qty
27
REAR PLATE FRAME
68140800 (1) Full qty
27
REAR PLATE FRAME
68140700 (1) Full qty
27
REAR PLATE FRAME
68140900 (1) Full qty
28
REFLECTOR
67091000 (2) Full qty
29
NUT
12578011 (4) Full qty
30
WASHER -No longer supplied- -R…
13577701 (4) Full qty
31
New       £ 2.15
62797600 (6) Full qty
BW00061n
32
SCREW
10444587 (12) Full qty
33
SCREW
16084377 (4) Full qty
34
LABEL
80624100 (1) Full qty
35
WASHER
12601077 (12) Full qty
36
SCREW
80818300 (5) Full qty
37
CONNECTOR
80869800 (1) Full qty
38
SCREW
15784077 (9) Full qty
39
NUT -Version with passenger di…
16101777 (2) Full qty
40
WASHER
12600477 (2) Full qty
41
WASHER
14496178 (2) Full qty
