Frame - Rear Elements Sub-Groups

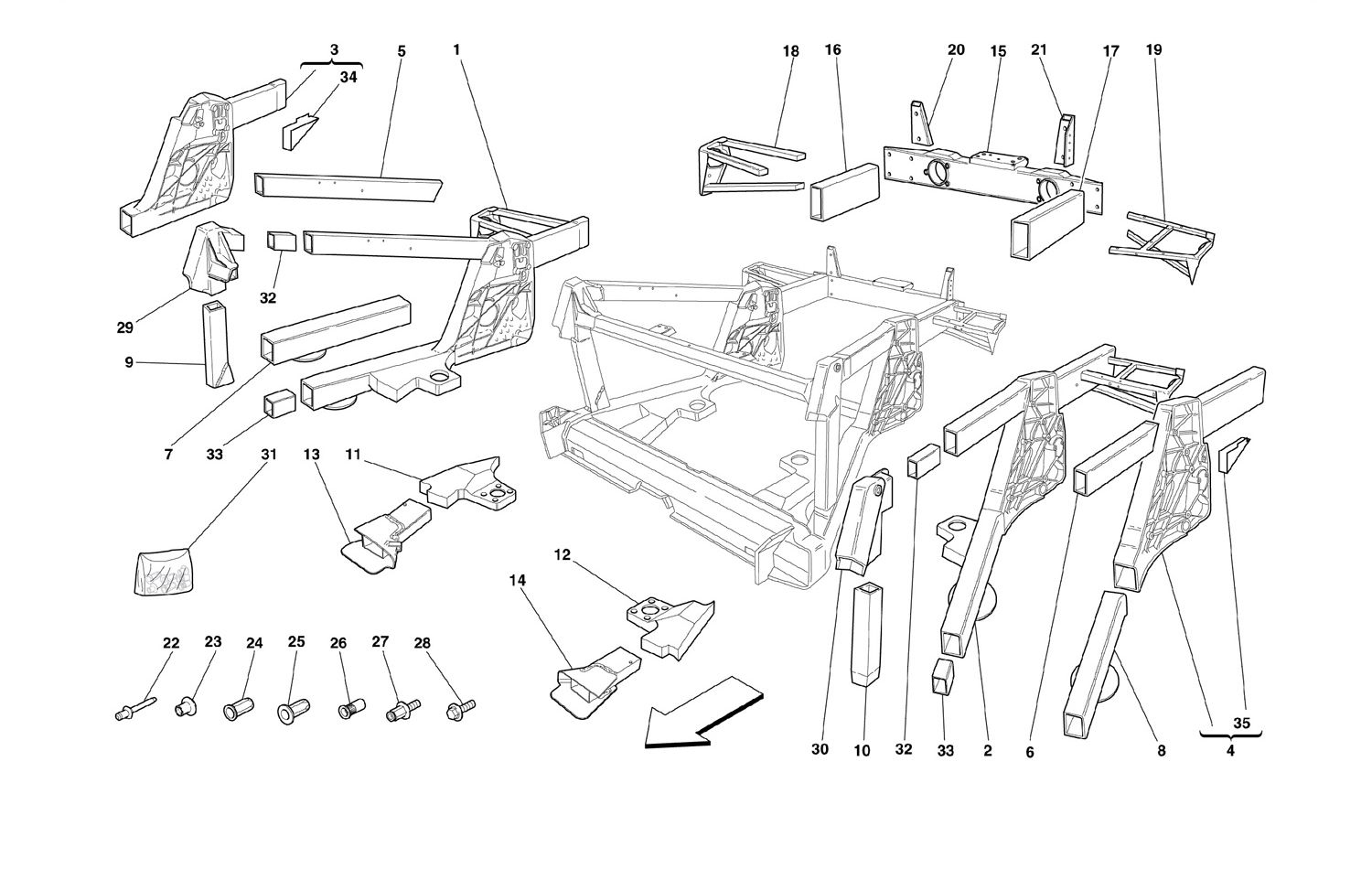

Schematic: Frame - Rear Elements Sub-Groups
Loc
Part
Cond       Price
1
COMPLETE R.H. SIDE FRAME
68887300 (1) Full qty
2
COMPLETE L.H. SIDE FRAME
68887400 (1) Full qty
3
R.H. REAR LATERAL CASTING
68887500 (1) Full qty
4
L.H. REAR LATERAL CASTING
68887600 (1) Full qty
5
R.H. UPPER FRAME
202584 (1) Full qty
6
L.H. UPPER FRAME
202583 (1) Full qty
7
R.H. LOWER FRAME
212303 (1) Full qty
8
L.H. LOWER FRAME
212302 (1) Full qty
9
COMPLETE R.H. REAR PANEL
66051200 (1) Full qty
10
COMPLETE L.H. REAR PANEL
66051100 (1) Full qty
11
R.H. BRACKET ENGINE SUPPORT
6234102 (1) Full qty
12
L.H. BRACKET ENGINE SUPPORT
6234101 (1) Full qty
13
R.H. SUPPORT FOR BRACKET
65942200 (1) Full qty
14
L.H. SUPPORT FOR BRACKET
65942300 (1) Full qty
15
REAR BUMPER CROSS MEMBER
242545 (1) Full qty
16
R.H. REAR FRAME
207272 (1) Full qty
17
L.H. REAR FRAME
207271 (1) Full qty
18
REAR RH. FENDER FRAME
80084211 (1) Full qty
19
REAR LH. FENDER FRAME
67780211 (1) Full qty
20
R.H. SIDE BRACKET
68027000 (1) Full qty
21
L.H. SIDE BRACKET
68027100 (1) Full qty
22
POP RIVET
14642891 (0) Full qty
23
RIVET
65133800 (0) Full qty
24
RIVET
15624311 (0) Full qty
24
HEXAGONAL RIVET
15624411 (0) Full qty
24
HEXAGONAL RIVET
15624511 (0) Full qty
24
RIVET
15180411 (0) Full qty
24
HEXAGONAL RIVET
15624211 (0) Full qty
25
RIVET
65151200 (0) Full qty
26
Rivet to fix. net under the gr…
60853400 (0) Full qty
26
NUT KNURLED RIVET
65319800 (0) Full qty
26
KNURLED RIVET
65930400 (0) Full qty
26
KNURLED RIVET
65135000 (0) Full qty
26
KNURLED RIVET
166101 (0) Full qty
27
HEXAGONAL HEAD STUD BOLT
65065400 (0) Full qty
28
SCREW
13836771 (0) Full qty
29
R.H. UPPER FUSION REAR PILLAR
6166261 (1) Full qty
30
L.H. UPPER FUSION REAR PILLAR
6166161 (1) Full qty
31
REPAIR INSERTS KIT
70000950 (1) Full qty
32
UPPER INNER CORE
181980 (0) Full qty
33
LOWER INNER CORE
181979 (0) Full qty
34
R.H. REINFORCEMENT
196575 (1) Full qty
35
L.H. REINFORCEMENT
196574 (1) Full qty
