Timing - Tappets

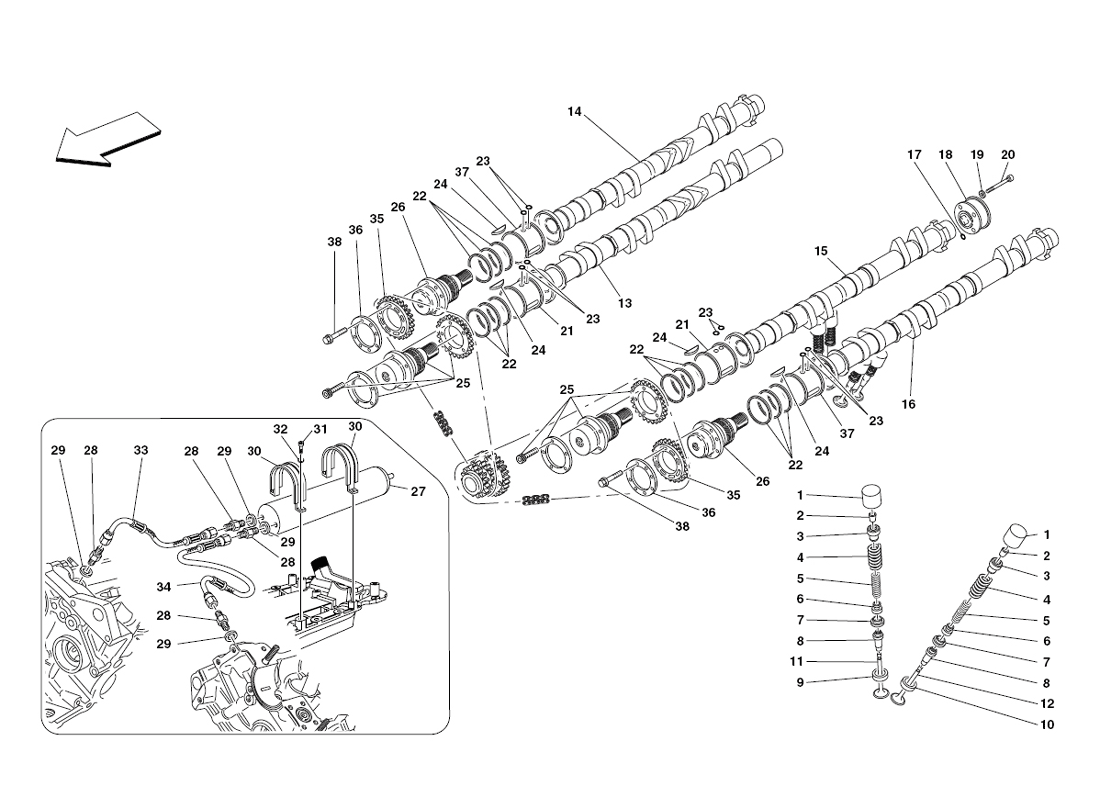

Schematic: Timing - Tappets
Loc
Part
Cond       Price
1
HYDRAULIC TAPPETS -Applicable …
194700 (32) Full qty
2
VALVE SPRING HALF-CONE
179763 (64) Full qty
3
UPPER STOP CAP
194713 (32) Full qty
4
OUTER SPRING FOR VALVE RETURN
197900 (32) Full qty
5
INNER SPRING FOR VALVE RETURN
197901 (32) Full qty
6
OIL SEAL
221473 (32) Full qty
7
LOWER STOP CAP
194718 (32) Full qty
8
INTAKE VALVE GUIDE
213498 (32) Full qty
9
INTAKE VALVE SEAT
6213496 (16) Full qty
10
EXHAUST VALVE SEAT
6213497 (16) Full qty
11
INTAKE VALVE
198581 (16) Full qty
12
EXHAUST VALVE
198582 (16) Full qty
13
RH. INTAKE CAMSHAFT
200144 (1) Full qty
14
RH. EXHAUST CAMSHAFT
200146 (1) Full qty
15
LH. INTAKE CAMSHAFT
200145 (1) Full qty
16
LH. EXHAUST CAMSHAFT
200147 (1) Full qty
17
Gasket
134701 (2) Full qty
18
VARIABLE VALVE TIMING ADJUSTER…
197558 (1) Full qty
19
WASHER
184731 (4) Full qty
20
SCREW
14303623 (4) Full qty
21
VARIABLE VALVE TIMING ADJUSTER…
206804 (2) Full qty
22
RING
179926 (12) Full qty
23
Gasket
134701 (4) Full qty
24
KEY
10618110 (4) Full qty
25
VARIABLE VALVE TIMING ADJUSTER…
193779 (2) Full qty
26
VARIABLE VALVE TIMING ADJUSTER…
199438 (2) Full qty
27
OIL ACCUMULATOR FOR VARIABLE V…
197062 (1) Full qty
28
THREADED CONNECTOR
195056 (4) Full qty
29
Gasket
10261060 (4) Full qty
30
BRACKET
197151 (2) Full qty
31
SCREW -No longer supplied- -Re…
14305124 (4) Full qty
32
New       Price on Enquiry
11197774 (4) Full qty
GE35524n
33
ACCUMULATOR TO RH. HEAD CILIND…
198463 (1) Full qty
34
ACCUMULATOR TO LH. HEAD CILIND…
198464 (1) Full qty
35
GEAR WHEEL
194192 (2) Full qty
36
RING
194370 (2) Full qty
37
VARIABLE VALVE TIMING ADJUSTER…
206805 (2) Full qty
38
SCREW
194977 (16) Full qty
