Lifting System

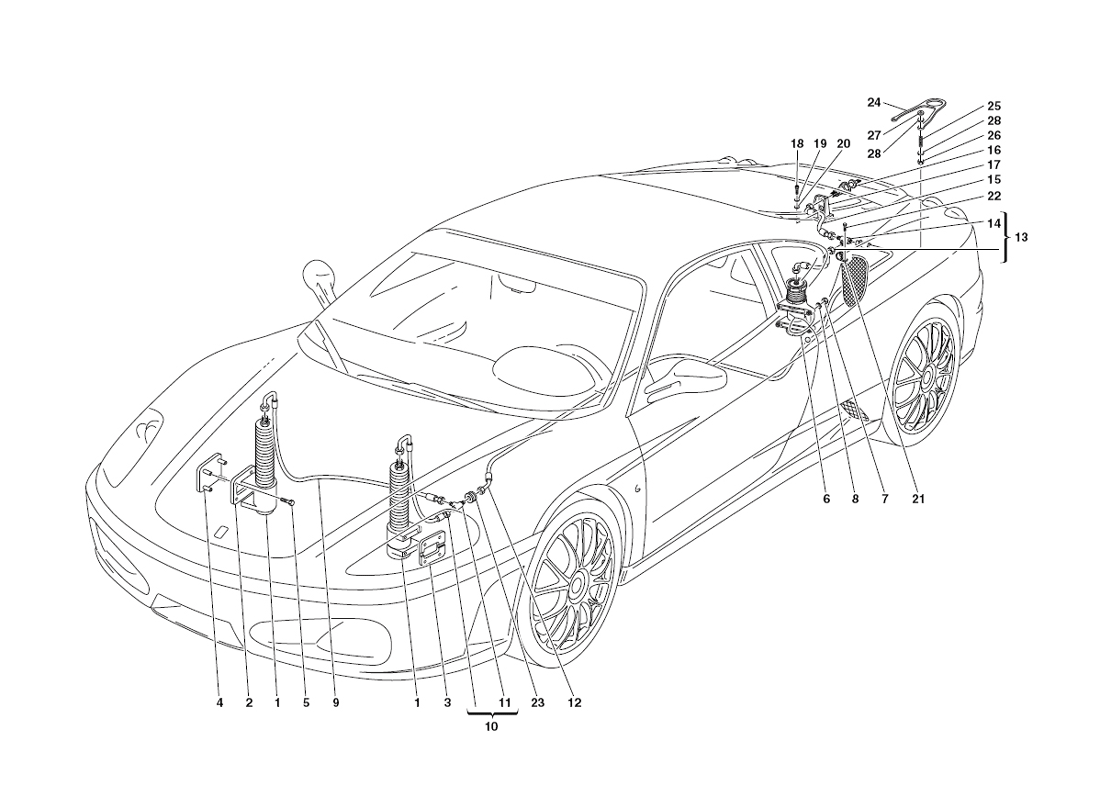

Schematic: Lifting System
Loc
Part
Cond       Price
1
FRONT JACK
221918 (2) Full qty
2
R.H. PLATE
221665 (1) Full qty
3
L.H. PLATE
223015 (1) Full qty
4
PLATE
221668 (2) Full qty
5
SCREW
14359524 (8) Full qty
6
REAR JACK
223157 (1) Full qty
7
NUT
104030 (4) Full qty
8
WASHER
12638524 (4) Full qty
9
R.H. FRONT PIPE
221663 (1) Full qty
10
L.H. FRONT PIPE
221664 (1) Full qty
11
T UNION
224554 (1) Full qty
12
PIPE FROM FRONT T UNION TO REA…
221662 (1) Full qty
13
PIPE FROM REAR T UNION TO JACK…
222092 (1) Full qty
14
T UNION
224554 (1) Full qty
15
PIPE FROM JET TO REAR T UNION
221661 (1) Full qty
16
JET
69317700 (1) Full qty
17
SUPPORT
221673 (1) Full qty
18
SCREW
14305287 (4) Full qty
19
WASHER
12601277 (4) Full qty
20
WASHER
14496478 (4) Full qty
21
BRACKET WITH SHEATH -D. 12-
10441390 (6) Full qty
22
SCREW -M6 X 20- -Fastening bra…
10902424 (6) Full qty
23
Wire carrier
10396680 (1) Full qty
24
REAR TOW HOOK
221266 (1) Full qty
25
STUD
13517124 (2) Full qty
26
NUT
104030 (2) Full qty
27
Washer
12646724 (2) Full qty
28
THICKNESS
222845 (4) Full qty
