Doors - Window And Rearview Mirrors

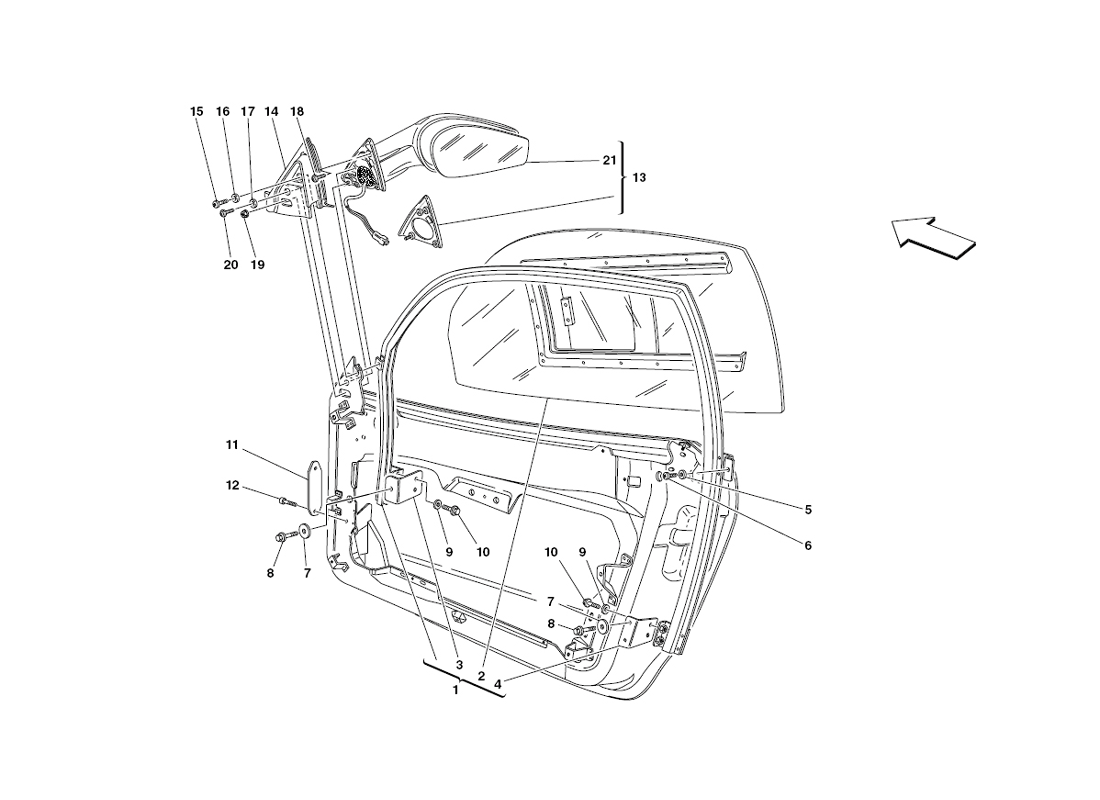

Schematic: Doors - Window And Rearview Mirrors
Loc
Part
Cond       Price
1
R.H. DOOR FRAME WITH WINDOW
69659900 (1) Full qty
1
L.H. DOOR FRAME WITH WINDOW
69660000 (1) Full qty
2
Nut
- (1) Full qty
2
Nut
- (1) Full qty
3
FRONT BRACKET
69605800 (2) Full qty
4
RH REAR BRACKET
69605900 (1) Full qty
4
L.H. REAR BRACKET
69606000 (1) Full qty
5
WASHER
12638124 (2) Full qty
6
SCREW
13274014 (2) Full qty
7
WASHER
12640624 (6) Full qty
8
SCREW
13836721 (6) Full qty
9
WASHER
12643724 (8) Full qty
10
SCREW
13836324 (8) Full qty
11
PLATE
65987300 (2) Full qty
12
SCREW
13272011 (4) Full qty
13
R.H. OUTER REAR VIEW MIRROR
69338110 (1) Full qty
13
L.H. OUTER REAR VIEW MIRROR
69338010 (1) Full qty
14
EXTERNAL RH. MIRROR GASKET
65226000 (1) Full qty
14
EXTERNAL LH. MIRROR GASKET
65226100 (1) Full qty
15
SCREW -M5 X 12-
65366700 (2) Full qty
16
WASHER
12601177 (2) Full qty
17
WASHER
12637824 (2) Full qty
18
SCREW -Applicable for Becker a…
65713200 (2) Full qty
19
Nut
13831801 (4) Full qty
20
SCREW -M5 X 12-
65366700 (2) Full qty
21
RH. EXTERNAL REAR VIEW MIRROR …
68981600 (1) Full qty
21
LH. EXTERNAL REAR VIEW MIRROR …
68981700 (1) Full qty
