Clutch System And Control - 412M - From Car 70005

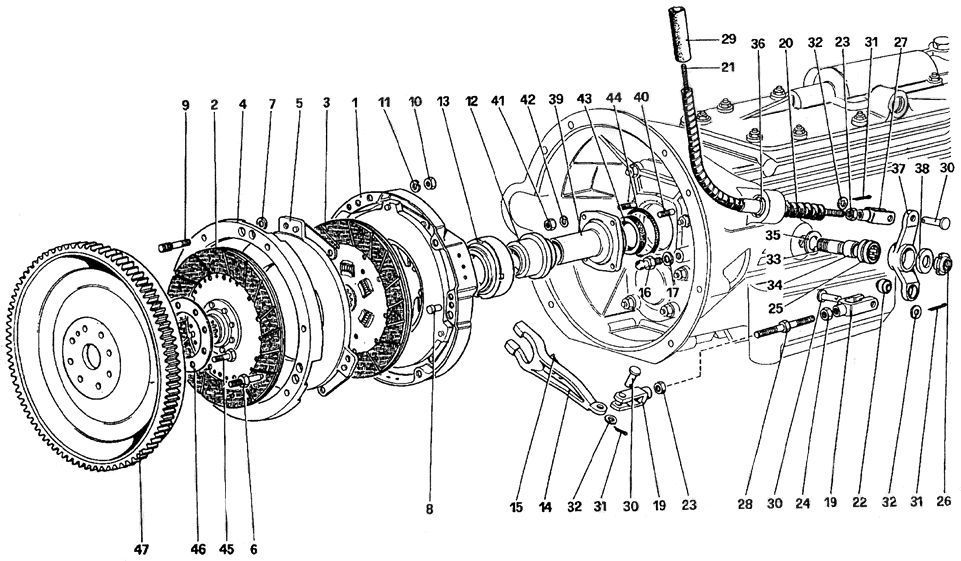

Schematic: Clutch System And Control - 412M - From Car 70005
Loc
Part
Cond       Price
1
Pressure plate
134884 (1) Full qty
2
Clutch disc without spring dri…
109462 (1) Full qty
3
Clutch disc with spring drive
109463 (1) Full qty
4
Spacer ring
108515 (1) Full qty
5
Intermediate ring
109464 (1) Full qty
6
Clutch Location Bolt 412/512
109465 (3) Full qty
7
Spacer
109466 (6) Full qty
8
Dowel
109880 (3) Full qty
9
New       Price on Enquiry
110019 (6) Full qty
CL11990n
10
Nut
16100821 (6) Full qty
11
Wavy Lock Washer 8mm
127496 (6) Full qty
12
Bush. bearing carrier
126578 (1) Full qty
13
Clutch Release Bearing (288)
125458 (1) Full qty
14
Clutch control lever
126576 (1) Full qty
15
Spring on lever
127625 (1) Full qty
16
Ball and socket joint
100852 (1) Full qty
17
Washer
12601471 (1) Full qty
18
Fork
100855 (1) Full qty
19
Fork
108575 (1) Full qty
20
Protection boot
110947 (1) Full qty
21
Flexible for clutch control
110020 (1) Full qty
22
Bail joint
100860 (1) Full qty
23
New       £ 2.15
100861 (3) Full qty
CL12097n
24
New       £ 3.84
100862 (1) Full qty
CL12098n
25
Roller bearing
100864 (1) Full qty
26
Ring nut
100865 (1) Full qty
27
Fork
100856 (1) Full qty
28
Adjuster
101566 (1) Full qty
29
Protective tube for sheath
102508 (1) Full qty
30
Clevis Pin
103218 (2) Full qty
31
Cotter pin
10734101 (4) Full qty
32
WASHER
13550221 (4) Full qty
33
Stud
110923 (1) Full qty
34
Ring
110924 (1) Full qty
35
Spacer
105297 (1) Full qty
36
Spacer
106024 (1) Full qty
37
Lever
117104 (1) Full qty
38
Washer
100853 (1) Full qty
39
Flange with sleeve
126571 (1) Full qty
40
Stud for cover of flywheel ins…
11500021 (4) Full qty
41
Nut
15896221 (4) Full qty
42
Washer
10516471 (4) Full qty
43
New       Price on Enquiry
106779 (1) Full qty
GE00430n
44
New       £ 2.20
101615 (1) Full qty
GB10132n
45
Flywheel Bolt
103875 (8) Full qty
46
Safety plate
108662 (1) Full qty
47
Flywheel
132466 (1) Full qty
47
Flywheel
132472 (1) Full qty
