Fuel Injuction System - Air Intake, Lines

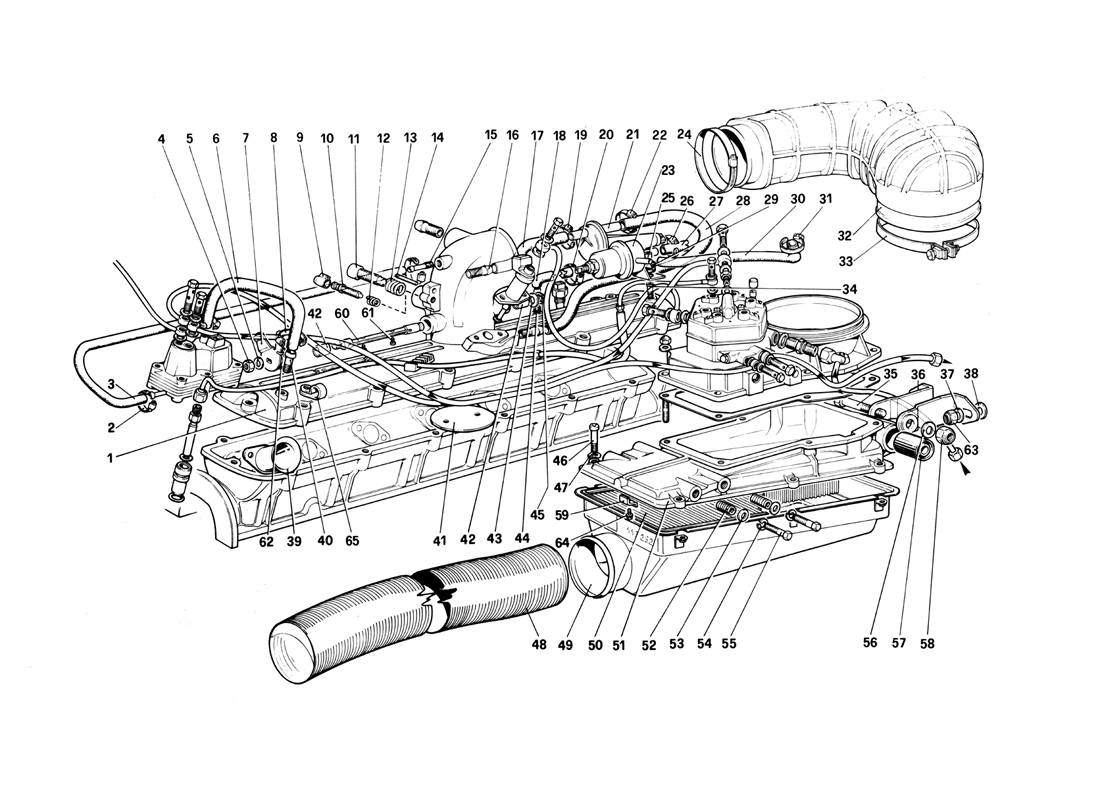

Schematic: Fuel Injuction System - Air Intake, Lines
Schematic: Fuel Injuction System - Air Intake, Lines
Loc
Part
Cond       Price
1
Coperchio superiore Dx.
113943 (1) Full qty
1
Coperchio superiore Sx.
113944 (1) Full qty
2
Clamp
12179190 (8) Full qty
3
Tubo mandata aria dal coperchi…
113969 (2) Full qty
4
Nut
16102321 (2) Full qty
5
Lock washer
113566 (2) Full qty
6
Tubo depressione aria regolato…
116763 (2) Full qty
7
Control lever for R.H. throttl…
113557 (1) Full qty
7
Control elver for L.H. throttl…
113559 (1) Full qty
8
Clamp
12179190 (8) Full qty
9
Anti Tamper Plug 208,308,328,512 (Various)
New       £ 7.15
111182 (2) Full qty
FU15725n
10
Adjusting screw
114366 (2) Full qty
11
Vite regolazione aria
113556 (2) Full qty
12
Spring
107824 (2) Full qty
13
Spring
113571 (2) Full qty
14
Check pin
114367 (2) Full qty
15
Nipple
113652 (2) Full qty
16
Union
113636 (4) Full qty
17
Pipe from cover to air valve
113965 (2) Full qty
18
Pipe from cover to vacuum valv…
113967 (2) Full qty
19
Clamp
12179590 (4) Full qty
20
Clamp
12179190 (4) Full qty
21
Aux Air Valve
New       £ 544.50
113974 (2) Full qty
FU00050n
22
Clamp
12179590 (4) Full qty
23
Vacuum valve
113981 (2) Full qty
24
Strap for conveyor
12174890 (2) Full qty
25
Spacer
103550 (2) Full qty
26
Clamp
12179590 (8) Full qty
27
Shaped tube
116123 (2) Full qty
28
RH Shaped Tube 400i, 412, 512 BBi
New       £ 77.51
113824 (1) Full qty
FU15728n
28
LH shaped Tube 400i, 412, 512 BBi
New       £ 77.51
113825 (1) Full qty
FU15729n
29
Cable Grommet
New       Price on Enquiry
103549 (2) Full qty
AC00210n
30
Shaped tube
113803 (2) Full qty
31
Clamp
12179590 (8) Full qty
32
Conveyor on R.H. metering devi…
113413 (1) Full qty
32
Conveyor on L.H. metering devi…
113414 (1) Full qty
33
Strap for conveyor
109796 (2) Full qty
34
Union for reservoir breather
112030 (2) Full qty
35
Bolt
15541321 (2) Full qty
36
Bracket
113501 (2) Full qty
37
Washer
12638621 (4) Full qty
38
Shim 1 mm.
106470 (4) Full qty
38
Shim 2 mm.
106471 (4) Full qty
38
Shim
106472 (4) Full qty
39
Flange and horn assembly
113553 (12) Full qty
40
Union for warm-up regolator
113637 (2) Full qty
41
Throttle (Not supplied)
113563 (2) Full qty
42
Bush
107443 (4) Full qty
43
Washer
13550401 (2) Full qty
44
Nipple
113652 (2) Full qty
45
Anello seeger
11065975 (2) Full qty
46
Vite
13276911 (12) Full qty
47
Washer
12601271 (12) Full qty
48
Tubo convogliatore - presa ari…
113930 (2) Full qty
49
Presa aria
113282 (2) Full qty
50
Filtro a bagno d'olio
118723 (1) Full qty
50
Vite fiss. filtro
118730 (1) Full qty
50
Air Filter 400
New       Price on Enquiry
113283 (2) Full qty
FU14186n
51
Supporto dosatore Dx.
113280 (1) Full qty
51
Supporto dosatore Sx.
113281 (1) Full qty
52
Heli-coil
13525870 (4) Full qty
53
Washer
13550301 (4) Full qty
54
Washer
106852 (4) Full qty
55
Bolt
16043621 (4) Full qty
56
Washer
10520021 (2) Full qty
57
Silentblockon support of devic…
109799 (2) Full qty
58
Nut
16105011 (2) Full qty
59
Lamierino fiss. filtro aria
120379 (4) Full qty
60
Throttle valve spindle
113564 (2) Full qty
61
Screw
115361 (4) Full qty
62
Return spring f or RH throttle…
113558 (1) Full qty
62
Return spring for LH throttle …
113562 (1) Full qty
63
Stud
12575611 (4) Full qty
64
Vite
15920602 (4) Full qty
65
Staffetta ? 6
10418100 (2) Full qty
65
Clamp
10418500 (2) Full qty
65
Clamp ? 14 mm
10418601 (2) Full qty
65
Staffetta ? 16
10418800 (1) Full qty
65
Hose fastening bracket
10441490 (1) Full qty
65
Small bracket with sheathing
10441590 (1) Full qty
