Timing System - Controls

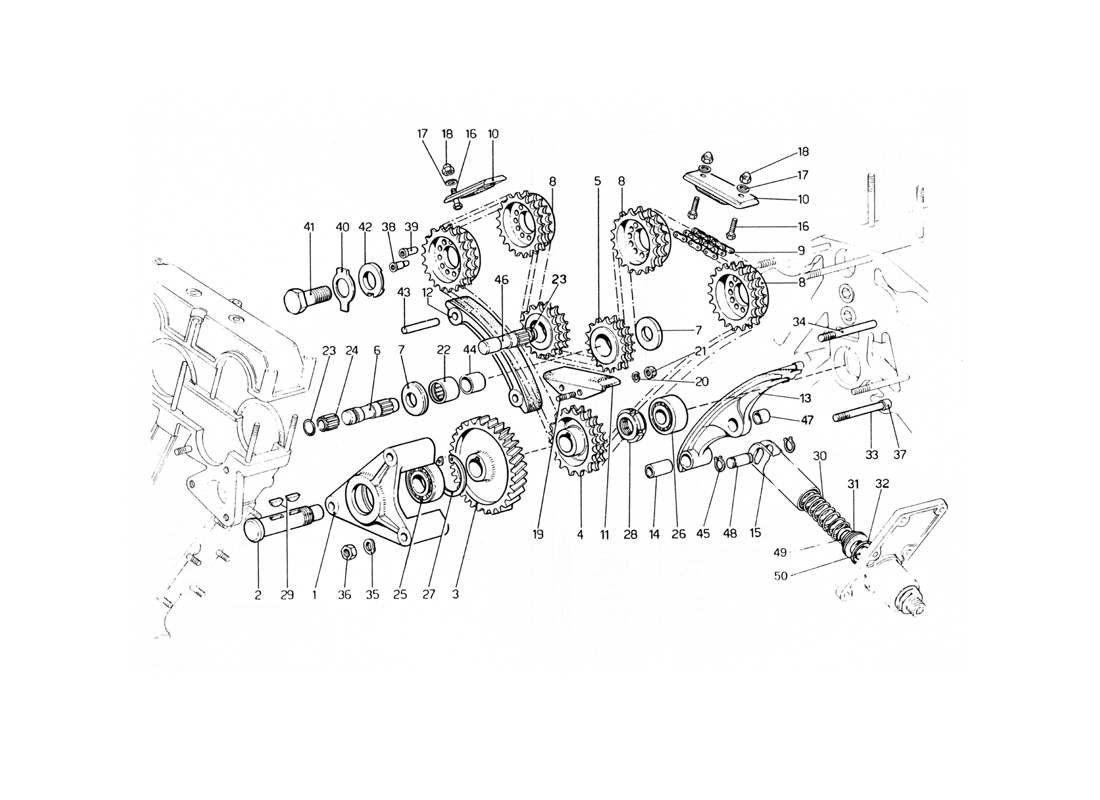

Schematic: Timing System - Controls
Loc
Part
Cond       Price
1
Support for chain gear
100200 (1) Full qty
2
Pin for support
100199 (1) Full qty
3
Driven gear
100197 (1) Full qty
4
Driven gear for chain control
100198 (1) Full qty
5
Gear for fixed sprocket
109936 (2) Full qty
6
Pin for sprocket
100209 (1) Full qty
7
Spacer
102608 (4) Full qty
8
Driven gear on camshaft
100202 (4) Full qty
9
New       Price on Enquiry
100195 (1) Full qty
TC14160n
10
Pattino tenuta catena
100213 (2) Full qty
11
Guide shoe. central
109938 (1) Full qty
12
Fixed Chain Tensioner
100210 (1) Full qty
13
Pattino tendicatena mobile
104533 (1) Full qty
13
New       £ 212.50
104534 (1) Full qty
TC14235n
14
Bush
104536 (1) Full qty
15
Idler body
104977 (1) Full qty
16
New       £ 0.12
10902321 (4) Full qty
WW10106n
17
Gasket
10297860 (4) Full qty
18
New       Price on Enquiry
100044 (4) Full qty
CH11780n
19
Stud for cover of flywheel ins…
11500021 (2) Full qty
20
Washer
10516470 (2) Full qty
21
Nut
15896221 (2) Full qty
22
New       Price on Enquiry
101300 (2) Full qty
TC14166n
23
New       Price on Enquiry
100015 (2) Full qty
GE00066n
24
New       Price on Enquiry
101591 (4) Full qty
TC14088n
25
New       £ 15.43
101298 (1) Full qty
TC00020n
25
New       Price on Enquiry
101298 (1) Full qty
TC14164n
26
New       £ 7.67
104917 (1) Full qty
TC14076n
27
Seeger ring
11060076 (1) Full qty
28
New       Price on Enquiry
101241 (1) Full qty
TC14184n
29
New       Price on Enquiry
10206320 (2) Full qty
TC14218n
30
Spring for idler body
104978 (1) Full qty
31
Piattello tenuta molla
116502 (1) Full qty
32
New       Price on Enquiry
104984 (1) Full qty
GE00648n
33
Stud
100036 (1) Full qty
34
Stud
104187 (3) Full qty
35
Washer
11198073 (3) Full qty
36
Nut
16100821 (2) Full qty
37
Dowel
102704 (4) Full qty
38
New       £ 36.96
100203 (4) Full qty
CH20068n
39
Centering dowel
102827 (3) Full qty
40
New       £ 7.44
102777 (3) Full qty
CH11654n
41
Vite fissaggio ingranaggio
106606 (3) Full qty
42
Rondella tenuta ingranaggio
106605 (3) Full qty
43
Pin
100212 (2) Full qty
44
Inner ring
101301 (2) Full qty
45
Seeger
11066075 (1) Full qty
46
Pin for gear of R.H. fixed spr…
103228 (1) Full qty
47
Upper bush
104537 (1) Full qty
48
Pin
104539 (1) Full qty
49
Upper spacer
116503 (1) Full qty
50
Lower spacer
116504 (1) Full qty
